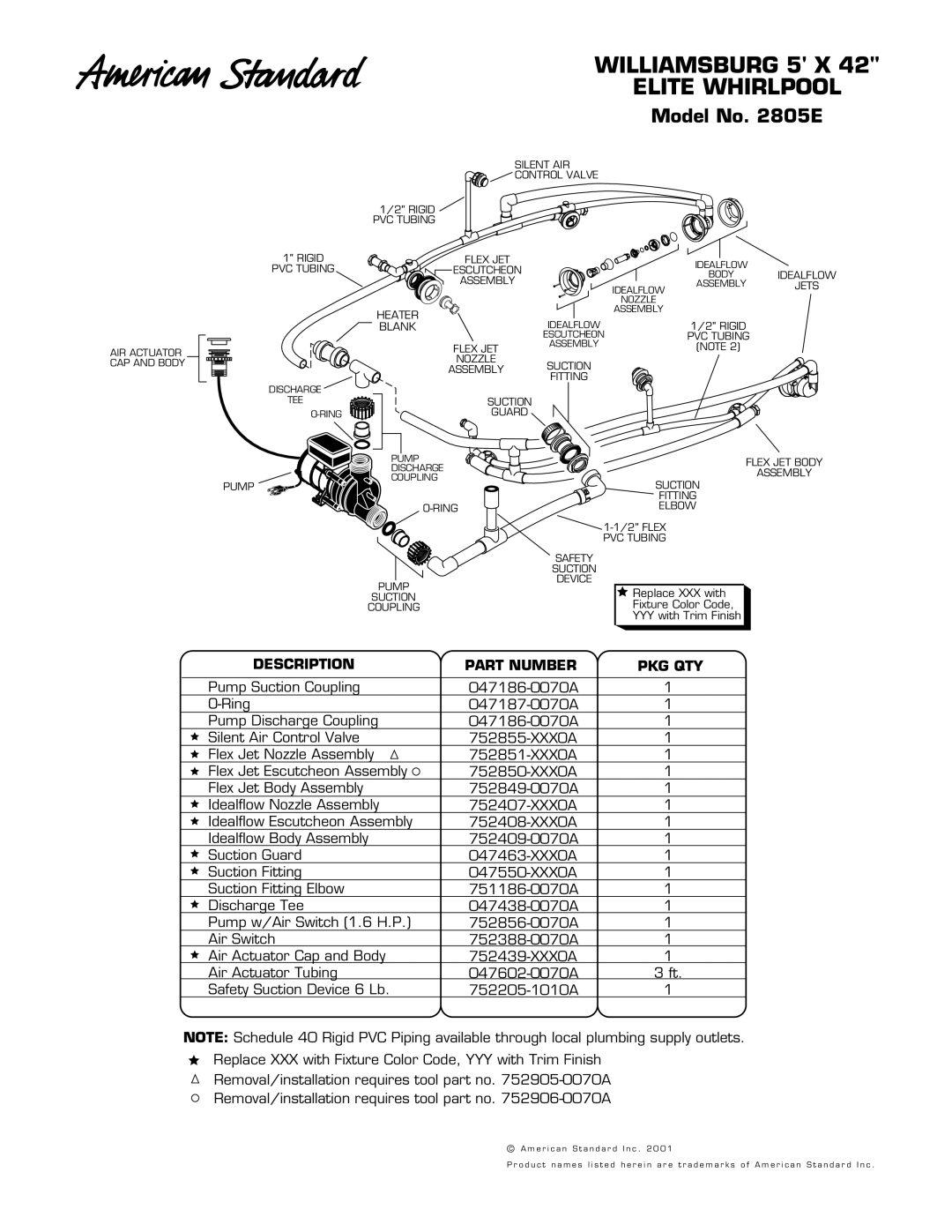

AIR ACTUATOR CAP AND BODY

		WILLIAMSBURG 5' X 42"
			ELITE WHIRLPOOL
			Model No. 2805E
	SILENT AIR
	CONTROL VALVE
1/2" RIGID
PVC TUBING
1" RIGID	FLEX JET		IDEALFLOW
PVC TUBING	ESCUTCHEON
			BODY	IDEALFLOW
	ASSEMBLY
			ASSEMBLY	JETS
			IDEALFLOW
			NOZZLE
HEATER			ASSEMBLY
		IDEALFLOW	1/2" RIGID
BLANK
		ESCUTCHEON	PVC TUBING
	FLEX JET	ASSEMBLY	(NOTE 2)
	NOZZLE	SUCTION
	ASSEMBLY
		FITTING
DISCHARGE
TEE	SUCTION
O-RING	GUARD

PUMP

DISCHARGE

COUPLING

PUMP

O-RING

PUMP

SUCTION

COUPLING

FLEX JET BODY

ASSEMBLY

SUCTION

FITTING

ELBOW

1-1/2" FLEX PVC TUBING

SAFETY

SUCTION

DEVICE

Replace XXX with

Fixture Color Code,

YYY with Trim Finish

DESCRIPTION	PART NUMBER	PKG QTY
Pump Suction Coupling	047186-0070A	1
O-Ring	047187-0070A	1
Pump Discharge Coupling	047186-0070A	1
Silent Air Control Valve	752855-XXX0A	1
Flex Jet Nozzle Assembly	752851-XXX0A	1
Flex Jet Escutcheon Assembly	752850-XXX0A	1
Flex Jet Body Assembly	752849-0070A	1
Idealflow Nozzle Assembly	752407-XXX0A	1
Idealflow Escutcheon Assembly	752408-XXX0A	1
Idealflow Body Assembly	752409-0070A	1
Suction Guard	047463-XXX0A	1
Suction Fitting	047550-XXX0A	1
Suction Fitting Elbow	751186-0070A	1
Discharge Tee	047438-0070A	1
Pump w/Air Switch (1.6 H.P.)	752856-0070A	1
Air Switch	752388-0070A	1
Air Actuator Cap and Body	752439-XXX0A	1
Air Actuator Tubing	047602-0070A	3 ft.
Safety Suction Device 6 Lb.	752205-1010A	1

NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets.

Replace XXX with Fixture Color Code, YYY with Trim Finish

Removal/installation requires tool part no. 752905-0070A

Removal/installation requires tool part no. 752906-0070A
