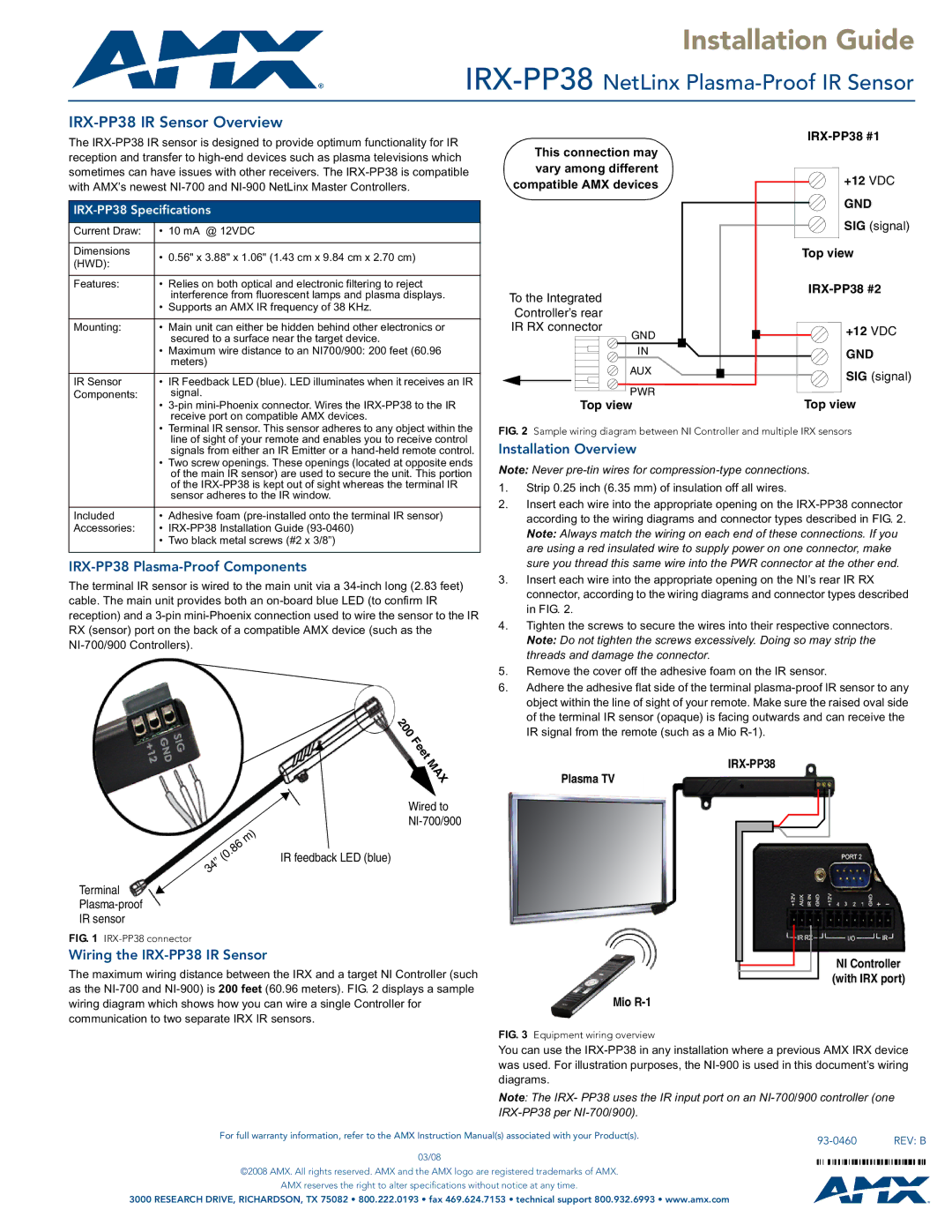

Installation Guide

Installation Guide

IRX-PP38NetLinx Plasma-Proof IR Sensor

IRX-PP38 IR Sensor Overview

The IRX-PP38 IR sensor is designed to provide optimum functionality for IR reception and transfer to high-end devices such as plasma televisions which sometimes can have issues with other receivers. The IRX-PP38 is compatible with AMX’s newest NI-700 and NI-900 NetLinx Master Controllers.

IRX-PP38 Specifications

Current Draw:

• 10 mA @ 12VDC





Dimensions

• 0.56" x 3.88" x 1.06" (1.43 cm x 9.84 cm x 2.70 cm)

(HWD):







Features:

• Relies on both optical and electronic filtering to reject



interference from fluorescent lamps and plasma displays.



• Supports an AMX IR frequency of 38 KHz.





Mounting:

• Main unit can either be hidden behind other electronics or



secured to a surface near the target device.



• Maximum wire distance to an NI700/900: 200 feet (60.96



meters)





IR Sensor

• IR Feedback LED (blue). LED illuminates when it receives an IR

Components:

signal.



3-pin mini-Phoenix connector. Wires the IRX-PP38 to the IR



receive port on compatible AMX devices.

This connection may vary among different compatible AMX devices

To the Integrated

Controller’s rear

IR RX connector

GND

IN

AUX

PWR

Top view
IRX-PP38 #1
+12 VDC

GND

SIG (signal)

Top view

IRX-PP38 #2

+12 VDC

GND

SIG (signal)

Top view



• Terminal IR sensor. This sensor adheres to any object within the



line of sight of your remote and enables you to receive control



signals from either an IR Emitter or a hand-held remote control.



• Two screw openings. These openings (located at opposite ends



of the main IR sensor) are used to secure the unit. This portion



of the IRX-PP38 is kept out of sight whereas the terminal IR



sensor adheres to the IR window.





Included

• Adhesive foam (pre-installed onto the terminal IR sensor)

Accessories:

IRX-PP38 Installation Guide (93-0460)



• Two black metal screws (#2 x 3/8”)

IRX-PP38 Plasma-Proof Components

The terminal IR sensor is wired to the main unit via a 34-inch long (2.83 feet) cable. The main unit provides both an on-board blue LED (to confirm IR reception) and a 3-pin mini-Phoenix connection used to wire the sensor to the IR RX (sensor) port on the back of a compatible AMX device (such as the NI-700/900 Controllers).

FIG. 2 Sample wiring diagram between NI Controller and multiple IRX sensors

Installation Overview

Note: Never pre-tin wires for compression-type connections.

1.

Strip 0.25 inch (6.35 mm) of insulation off all wires.

2.

Insert each wire into the appropriate opening on the IRX-PP38 connector



according to the wiring diagrams and connector types described in FIG. 2.



Note: Always match the wiring on each end of these connections. If you



are using a red insulated wire to supply power on one connector, make



sure you thread this same wire into the PWR connector at the other end.

3.

Insert each wire into the appropriate opening on the NI’s rear IR RX



connector, according to the wiring diagrams and connector types described



in FIG. 2.

4.

Tighten the screws to secure the wires into their respective connectors.



Note: Do not tighten the screws excessively. Doing so may strip the



threads and damage the connector.

5.

Remove the cover off the adhesive foam on the IR sensor.

6.

Adhere the adhesive flat side of the terminal plasma-proof IR sensor to any



object within the line of sight of your remote. Make sure the raised oval side



of the terminal IR sensor (opaque) is facing outwards and can receive the

) 6m .8 (0 ” 4 3

Terminal

Plasma-proof

IR sensor

20

0

F e e t

M

IRX-PP38NetLinx Plasma-Proof IR Sensor A

X

Wired to

NI-700/900

IR feedback LED (blue)

IR signal from the remote (such as a Mio R-1).

IRX-PP38

Plasma TV

FIG. 1 IRX-PP38 connector

Wiring the IRX-PP38 IR Sensor

The maximum wiring distance between the IRX and a target NI Controller (such as the NI-700 and NI-900) is 200 feet (60.96 meters). FIG. 2 displays a sample wiring diagram which shows how you can wire a single Controller for communication to two separate IRX IR sensors.

NI Controller (with IRX port)

Mio R-1

FIG. 3 Equipment wiring overview

You can use the IRX-PP38 in any installation where a previous AMX IRX device was used. For illustration purposes, the NI-900 is used in this document’s wiring diagrams.

Note: The IRX- PP38 uses the IR input port on an NI-700/900 controller (one IRX-PP38 per NI-700/900).

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

93-0460

REV: B



03/08

©2008 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
