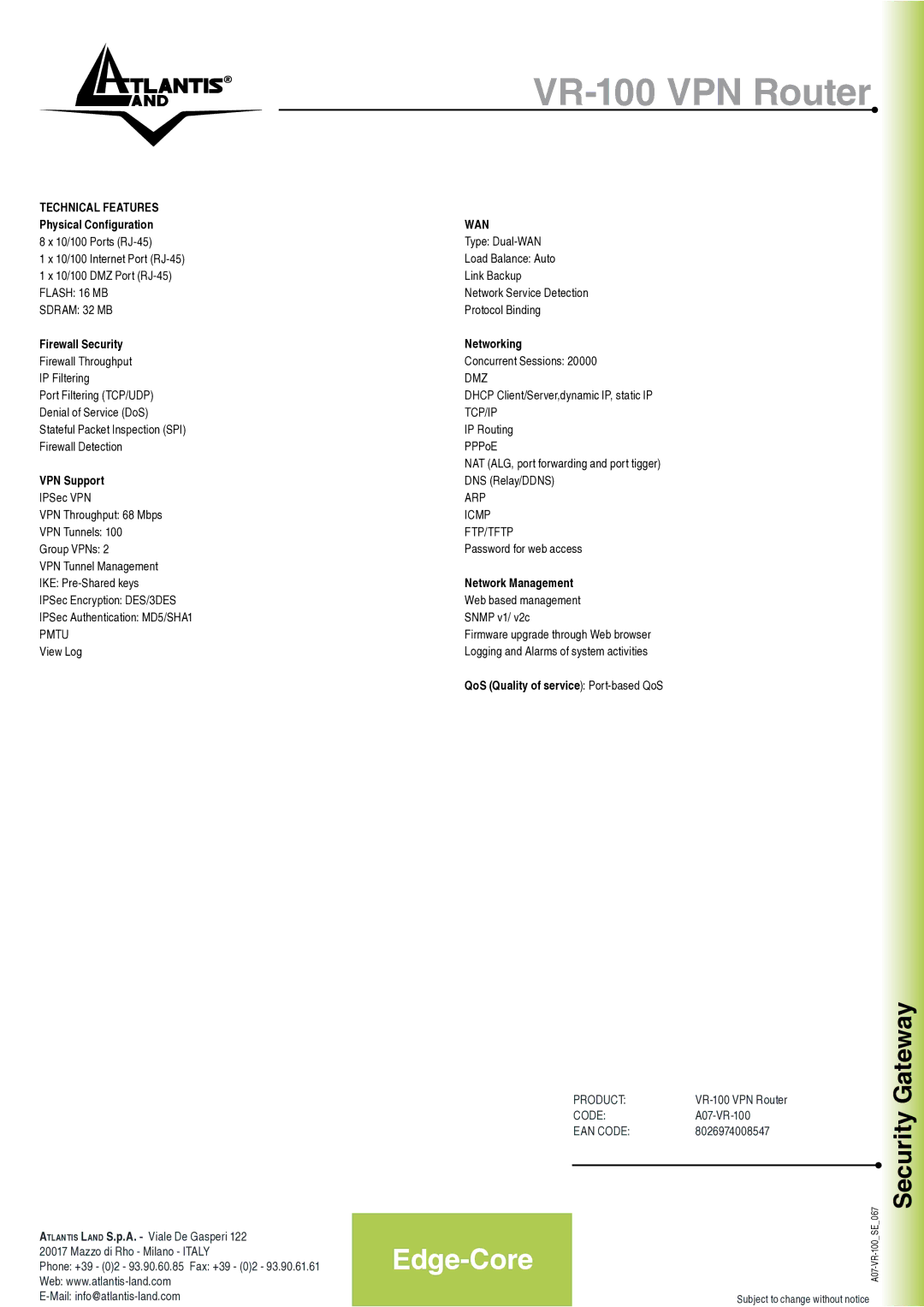

VR-100 VPN Router

TEChNICal Features



Physical Configuration

WAN

8 x 10/100 Ports (RJ-45)

Type: Dual-WAN

1 x 10/100 Internet Port (RJ-45)

Load Balance: Auto

1 x 10/100 DMZ Port (RJ-45)

Link Backup

FLASH: 16 MB

Network Service Detection

SDRAM: 32 MB

Protocol Binding

Firewall Security

Networking

Firewall Throughput

Concurrent Sessions: 20000

IP Filtering

DMZ

Port Filtering (TCP/UDP)

DHCP Client/Server,dynamic IP, static IP

Denial of Service (DoS)

TCP/IP

Stateful Packet Inspection (SPI)

IP Routing

Firewall Detection

PPPoE



NAT (ALG, port forwarding and port tigger)

VPN Support

DNS (Relay/DDNS)

IPSec VPN

ARP

VPN Throughput: 68 Mbps

ICMP

VPN Tunnels: 100

FTP/TFTP

Group VPNs: 2

Password for web access

VPN Tunnel Management



IKE: Pre-Shared keys

Network Management

IPSec Encryption: DES/3DES

Web based management

IPSec Authentication: MD5/SHA1

SNMP v1/ v2c

PMTU

Firmware upgrade through Web browser

View Log

Logging and Alarms of system activities



QoS (Quality of service): Port-based QoS

Atlantis Land S.p.A. - Viale De Gasperi 122 20017 Mazzo di Rho - Milano - ITALY

Phone: +39 - (0)2 - 93.90.60.85 Fax: +39 - (0)2 - 93.90.61.61

Web: www.atlantis-land.com

E-Mail: info@atlantis-land.com

Edge-Core

PRODUCT:

VR-100 VPN Router

Gateway

CODE:

A07-VR-100

Security

EAN CODE:

067

8026974008547





A07-VR-100 SE_





Subject to change without notice



Page 2
Image 2
Atlantis Land A07-VR-100 user service TEChNICal Features Physical Configuration, Firewall Security Networking, VPN Support

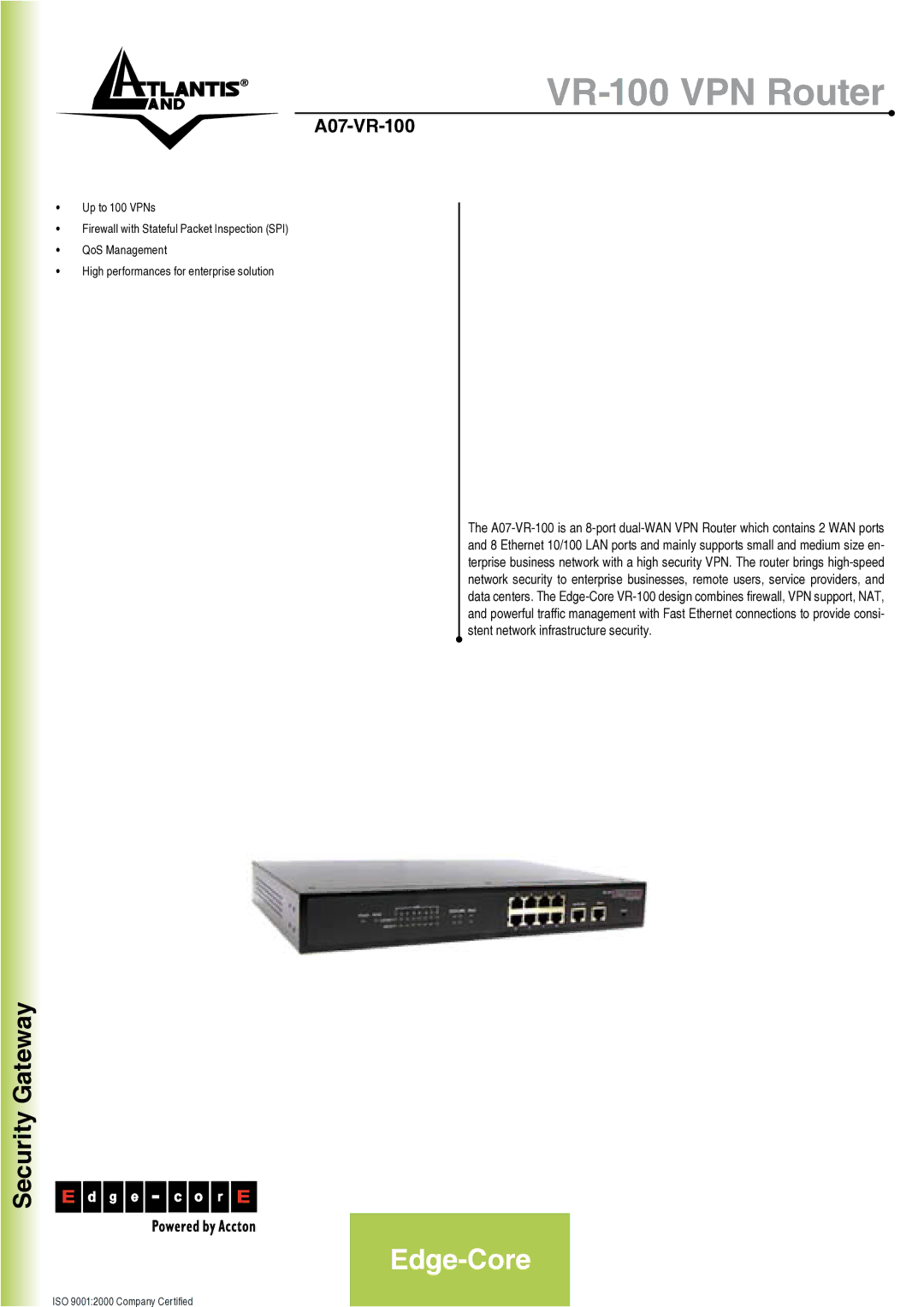

A07-VR-100 specifications

Atlantis Land A07-VR-100 is a versatile and robust technology that caters to the growing demand for effective and efficient networking solutions. Designed for both home and office environments, this device stands out due to its impressive suite of features, technologies, and characteristics that simplify connectivity and improve overall performance.

At the heart of the A07-VR-100 is its dual-band capability, which operates on both 2.4 GHz and 5 GHz frequencies. This means users can enjoy high-speed internet access while minimizing interference from other devices. The dual-band functionality is particularly beneficial in environments with numerous connected gadgets, allowing for smoother streaming, gaming, and video conferencing experiences.

Another remarkable feature of the A07-VR-100 is its advanced Wi-Fi standards, ensuring compliance with the latest IEEE 802.11ac technology. This delivers exceptional data transfer rates, significantly enhancing throughput and reducing latency. With its ability to support multiple devices simultaneously, the A07-VR-100 is an excellent choice for households or businesses with heavy internet usage, eliminating bottlenecks and optimizing performance.

The A07-VR-100 also boasts powerful security features designed to safeguard user data and privacy. Equipped with WPA3 encryption, the device provides enhanced security protocols for network access, making unauthorized entry more difficult. This focus on security is paramount in today’s digital landscape, where cyber threats are increasingly sophisticated.

Ease of use is another distinguishing attribute of the A07-VR-100. Its user-friendly interface allows for rapid setup and seamless network management. With mobile app compatibility, users can easily monitor their network activity and adjust settings from their smartphones, making it convenient to control access and prioritize bandwidth as needed.

In terms of design, the A07-VR-100 features a compact and modern aesthetic that allows it to blend effortlessly into any environment. Its efficient cooling system ensures optimal performance, reducing the risk of overheating during extended use.

Finally, the Atlantis Land A07-VR-100 supports multiple connectivity options, including Ethernet ports, which enhance its utility for wired devices requiring stable connections. Overall, the A07-VR-100 stands as a comprehensive networking solution that combines speed, security, and user-friendly design, making it an ideal choice for both residential and commercial applications.
