Barrel and Cable Length
MIG gun configurator allows easy, precise
customization of just the right A/C Automatic
MIG gun for your welding job.
Amperage ratings at 100% duty cycle with CO2
gas: 300 and 500 amps.
Power cable equipped guns available in lengths
to fit many applications.
Necks available in numerous length and bend
angles for maximum accessibility.
Contact tip options include Centerfire™ and Quik
Tip™ and are available in wire sizes from .023"
(0.6 mm) to 1/8" (3.2 mm).
Direct plugs connect to wire feeders and
machines from most major manufacturers.

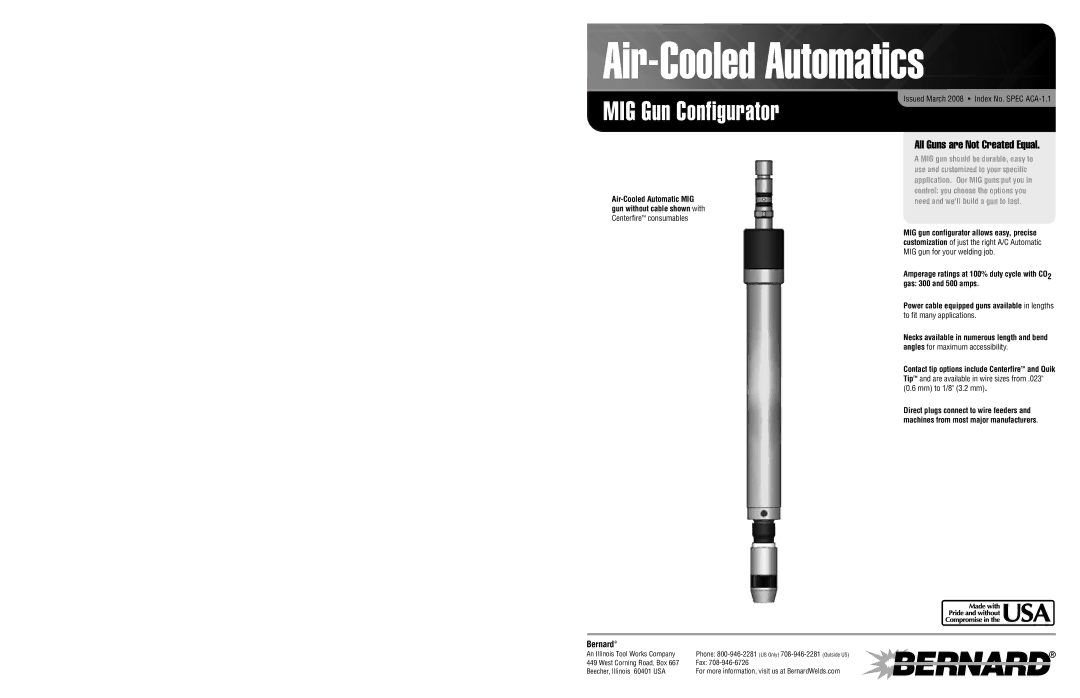

Air-Cooled Automatic MIG
gun without cable shown with
Centerfire™ consumables
Issued March 2008 • Index No. SPEC ACA-1.1
Air-Cooled Automatics

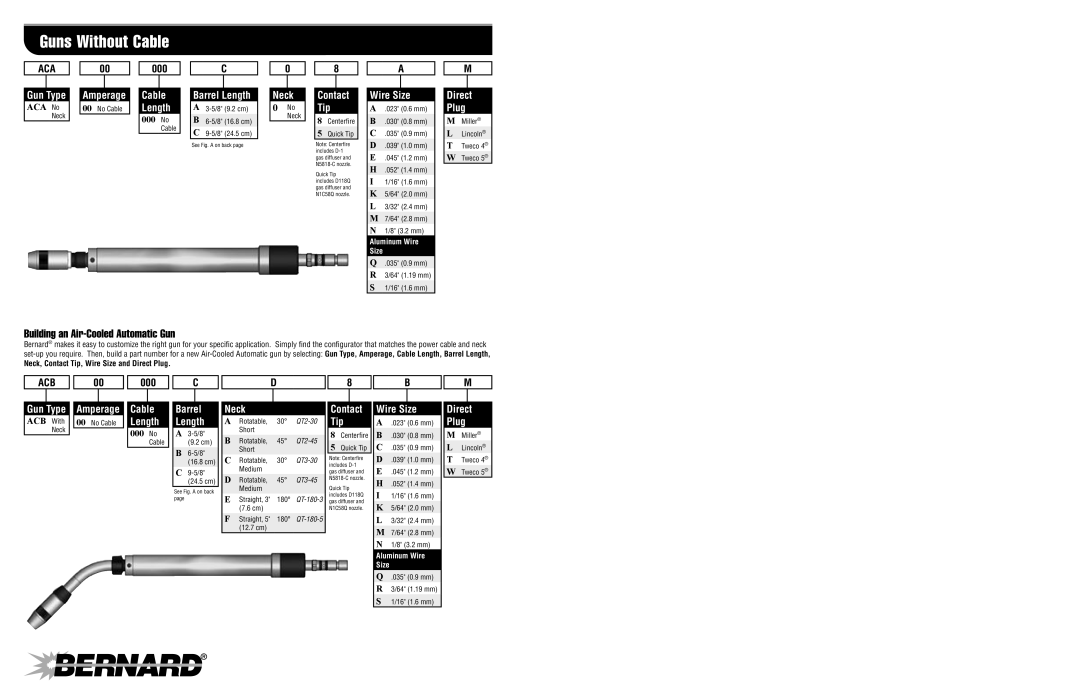

MIG Gun Configurator
U
SA
Made with
Pride and without
Compromise in the
All Guns are Not Created Equal.
A MIG gun should be durable, easy to
use and customized to your specific
application. Our MIG guns put you in
control: you choose the options you
need and we'll build a gun to last.
Bernard®
An Illinois Tool Works Company
449 West Corning Road, Box 667
Beecher, Illinois 60401 USA
Phone: 800-946-2281 (US Only) 708-946-2281 (Outside US)
Fax: 708-946-6726
For more information, visit us at BernardWelds.com

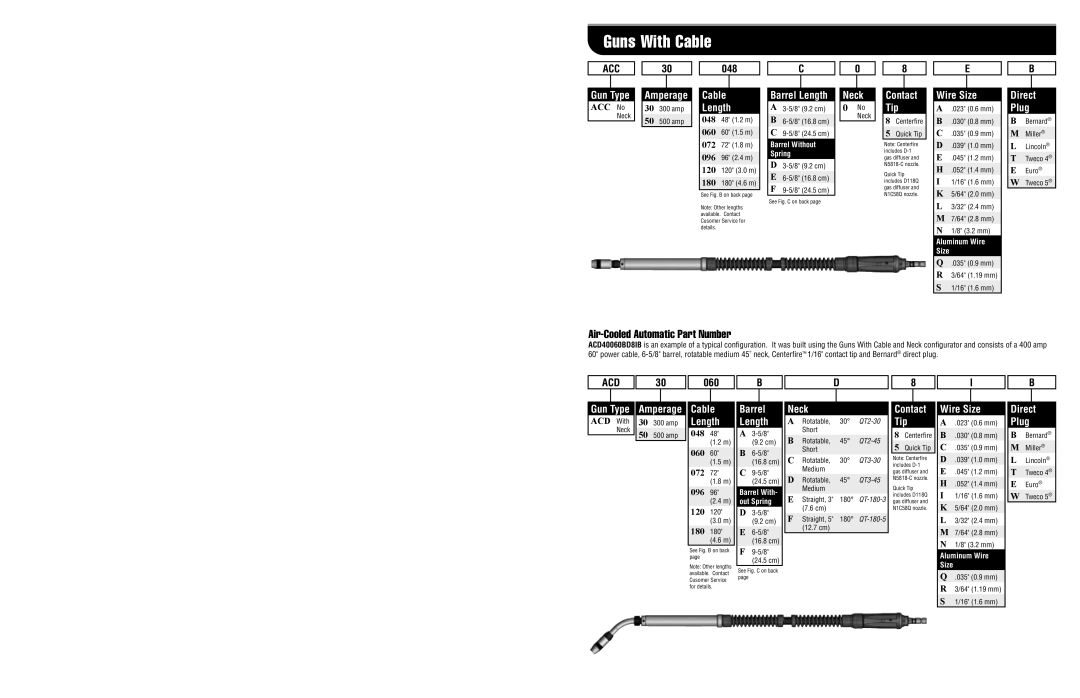

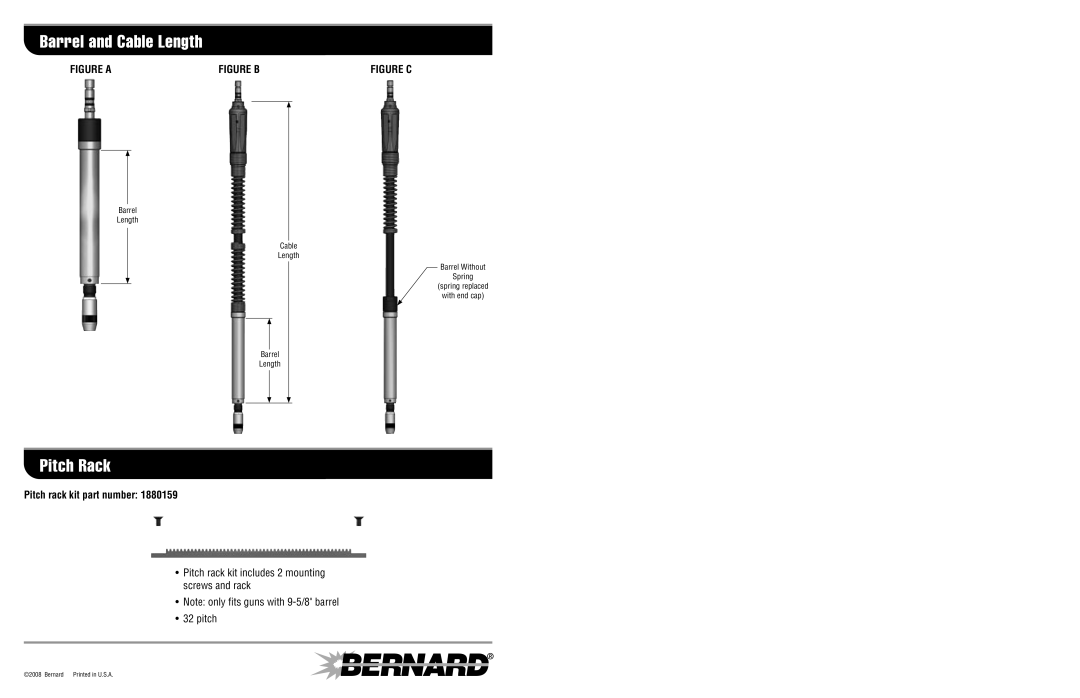

FIGURE A FIGURE B FIGURE C
Barrel
Length
Cable
Length
Barrel
Length
Barrel Without
Spring
(spring replaced
with end cap)
Pitch Rack
• Pitch rack kit includes 2 mounting
screws and rack
• Note: only fits guns with 9-5/8" barrel
• 32 pitch
Pitch rack kit part number: 1880159
