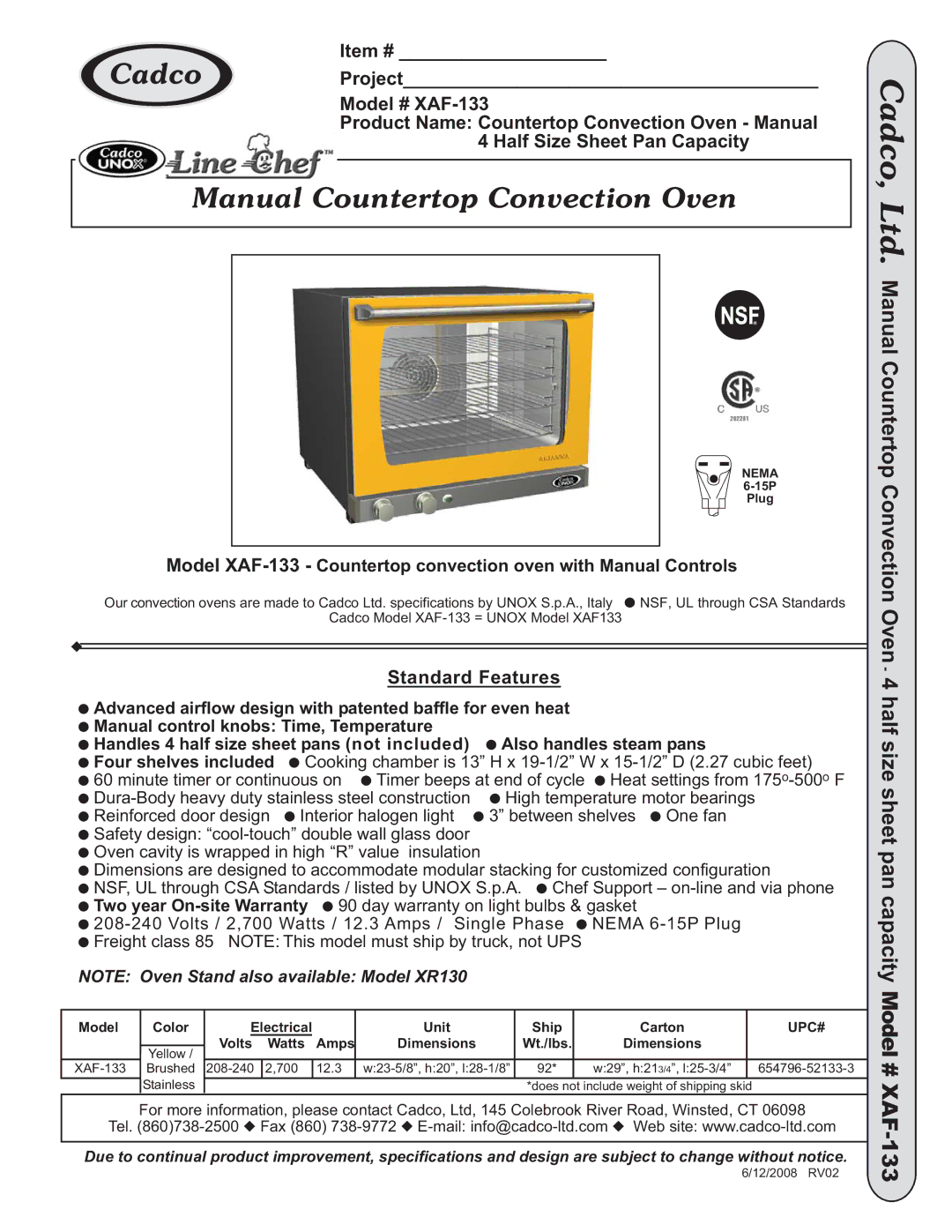

Item # ____________________

Project________________________________________

Model # XAF-133

Product Name: Countertop Convection Oven - Manual

4 Half Size Sheet Pan Capacity

Manual Countertop Convection Oven

NEMA 6-15P Plug

Model XAF-133 - Countertop convection oven with Manual Controls

Our convection ovens are made to Cadco Ltd. specifications by UNOX S.p.A., Italy l NSF, UL through CSA Standards

Cadco Model XAF-133 = UNOX Model XAF133

u

Standard Features

l Advanced airflow design with patented baffle for even heat l Manual control knobs: Time, Temperature

l Handles 4 half size sheet pans (not included) l Also handles steam pans

l Four shelves included l Cooking chamber is 13” H x 19-1/2” W x 15-1/2” D (2.27 cubic feet)

l 60 minute timer or continuous on l Timer beeps at end of cycle l Heat settings from 175o-500oF l Dura-Body heavy duty stainless steel construction l High temperature motor bearings

l Reinforced door design l Interior halogen light l 3” between shelves l One fan l Safety design: “cool-touch” double wall glass door

l Oven cavity is wrapped in high “R” value insulation

l Dimensions are designed to accommodate modular stacking for customized configuration

l NSF, UL through CSA Standards / listed by UNOX S.p.A. l Chef Support – on-line and via phone l Two year On-site Warranty l 90 day warranty on light bulbs & gasket



l 208-240 Volts / 2,700 Watts / 12.3 Amps / Single Phase



l NEMA 6-15P Plug





l Freight class 85 NOTE: This model must ship by truck, not UPS





NOTE: Oven Stand also available: Model XR130















Model



Color



Electrical



Unit



Ship



Carton



UPC#

























Volts

Watts

Amps

Dimensions



Wt./lbs.



Dimensions











Yellow /









































XAF-133



Brushed



208-240

2,700

12.3

w:23-5/8”, h:20”, l:28-1/8”



92*



w:29”, h:213/4”, l:25-3/4”



654796-52133-3







Stainless













*does not include weight of shipping skid



For more information, please contact Cadco, Ltd, 145 Colebrook River Road, Winsted, CT 06098

Tel. (860)738-2500 u Fax (860) 738-9772 u E-mail: info@cadco-ltd.com u Web site: www.cadco-ltd.com

Due to continual product improvement, specifications and design are subject to change without notice.

6/12/2008 RV02

Cadco, Ltd

. Manual Countertop Convection

Ovenu -

4 half size sheet

pan capacity Model #

XAF-133

Page 1
