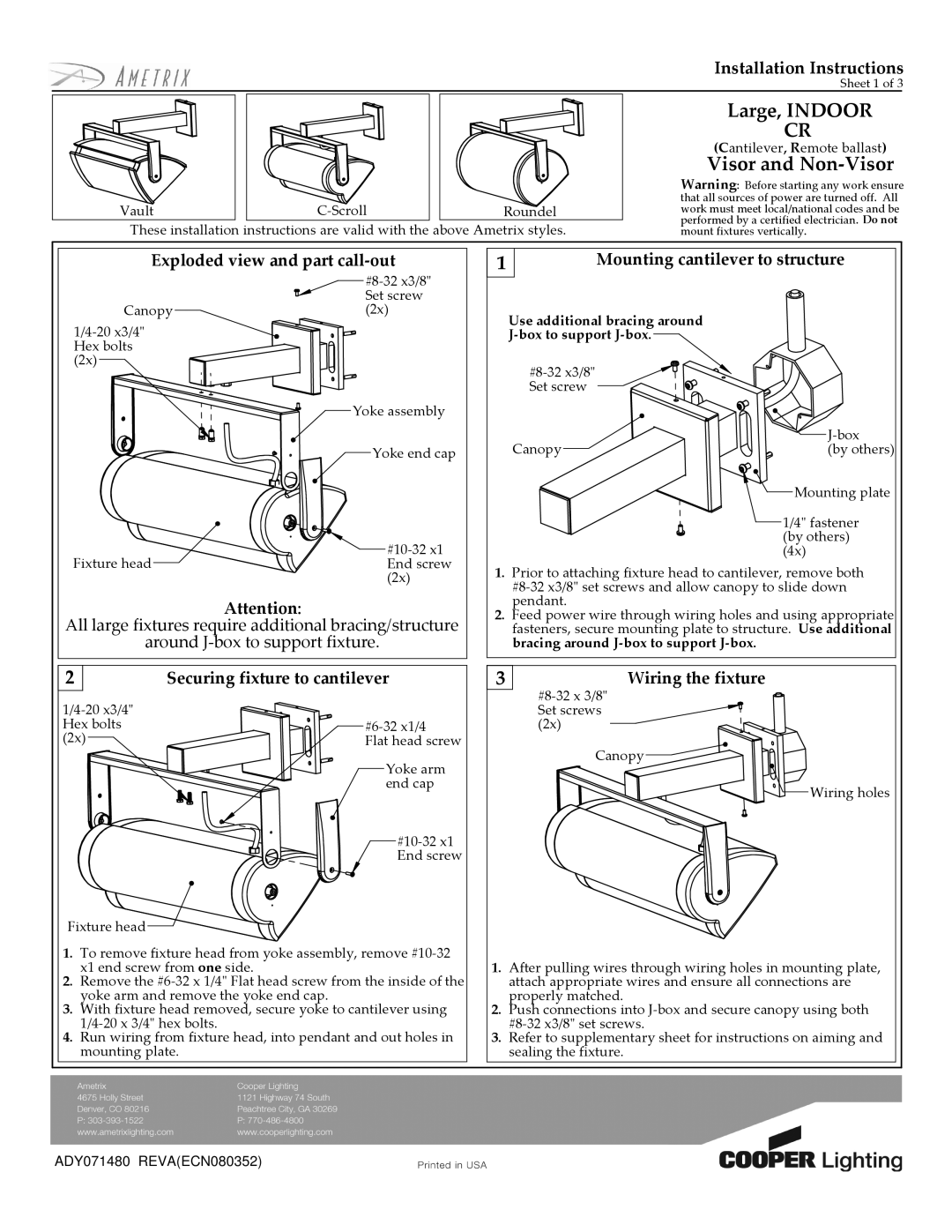

Cooper Lighting ADY071480 installation instructions Large, INDOOR CR, Visor and Non-Visor

Installation Instructions

Sheet 1 of 3

Vault C-Scroll Roundel

These installation instructions are valid with the above Ametrix styles.

Large, INDOOR

CR

(Cantilever, Remote ballast)

Visor and Non-Visor

Warning: Before starting any work ensure that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. Do not mount fixtures vertically.

Exploded view and part call-out

	#8-32 x3/8"
	Set screw
Canopy	(2x)

1/4-20 x3/4" Hex bolts (2x)

Yoke assembly

Yoke end cap

Fixture head	#10-32 x1
	End screw
	(2x)

Attention:

All large fixtures require additional bracing/structure

around J-box to support fixture.

2Securing fixture to cantilever

1/4-20 x3/4"
Hex bolts	#6-32 x1/4
(2x)	Flat head screw
	Yoke arm
	end cap
	#10-32 x1
	End screw

Fixture head

1.To remove fixture head from yoke assembly, remove #10-32 x1 end screw from one side.

2.Remove the #6-32 x 1/4" Flat head screw from the inside of the yoke arm and remove the yoke end cap.

3.With fixture head removed, secure yoke to cantilever using 1/4-20 x 3/4" hex bolts.

4.Run wiring from fixture head, into pendant and out holes in mounting plate.

1Mounting cantilever to structure

Use additional bracing around

J-box to support J-box.

#8-32 x3/8" Set screw

	J-box
Canopy	(by others)
	Mounting plate
	1/4" fastener
	(by others)
	(4x)

1.Prior to attaching fixture head to cantilever, remove both #8-32 x3/8" set screws and allow canopy to slide down pendant.

2.Feed power wire through wiring holes and using appropriate fasteners, secure mounting plate to structure. Use additional bracing around J-box to support J-box.

3Wiring the fixture

#8-32 x 3/8" Set screws (2x)

Canopy

Wiring holes

1.After pulling wires through wiring holes in mounting plate, attach appropriate wires and ensure all connections are properly matched.

2.Push connections into J-box and secure canopy using both #8-32 x3/8" set screws.

3.Refer to supplementary sheet for instructions on aiming and sealing the fixture.

ADY071480 REVA(ECN080352)
