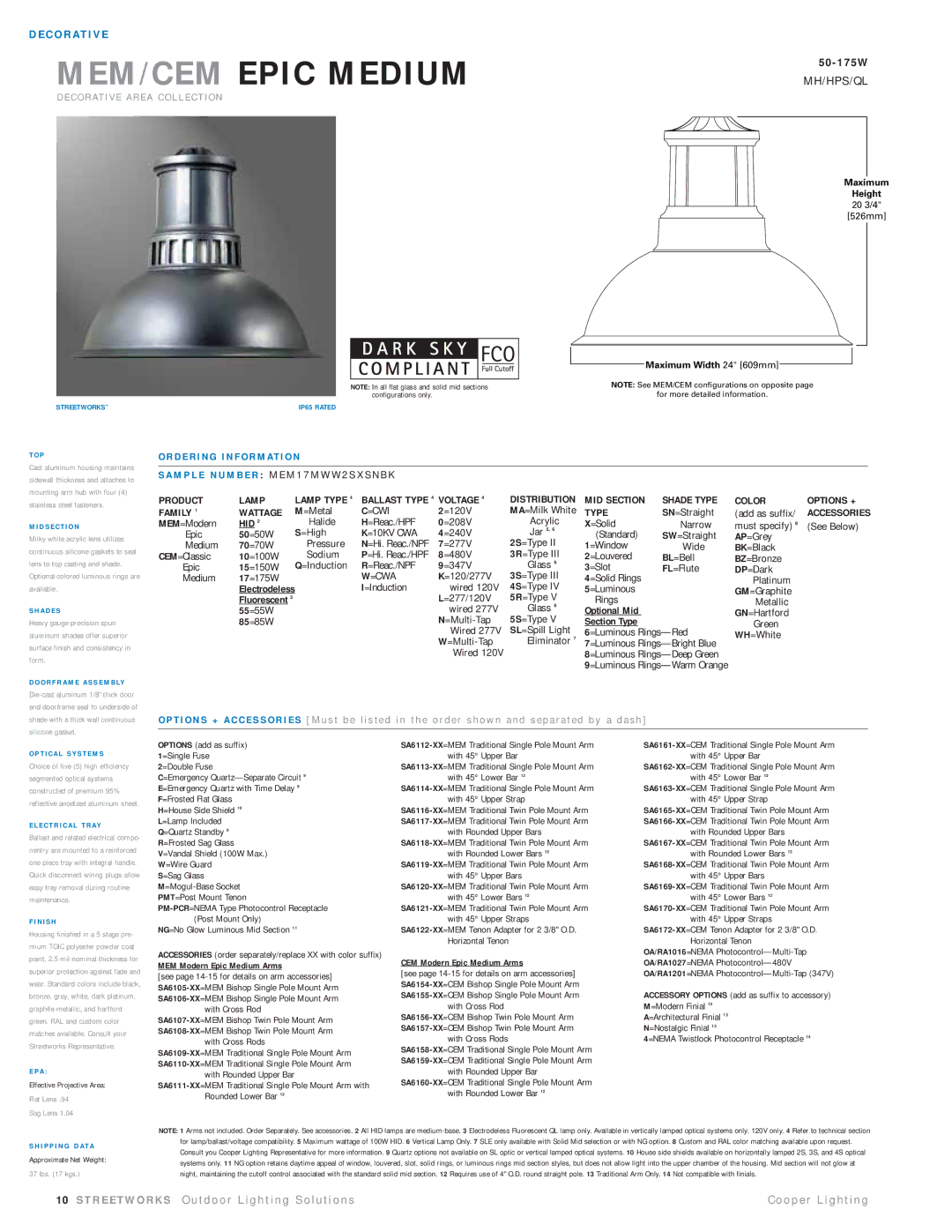

Cooper Lighting MEM17MWW2SXSNBK manual D E C O R At I V E, Mem/Cem Epic Medium, Mh/Hps/Ql, Lamp

D E C O R AT I V E

MEM/CEM EPIC MEDIUM	MH/HPS/QL
	50-175W
D E C O R AT I V E A R E A C O L L E C T I O N

Maximum

Height 20 3/4" [526mm]

Maximum Width 24" [609mm]

STREETWORKS™

T O P

Cast aluminum housing maintains sidewall thickness and attaches to mounting arm hub with four (4)

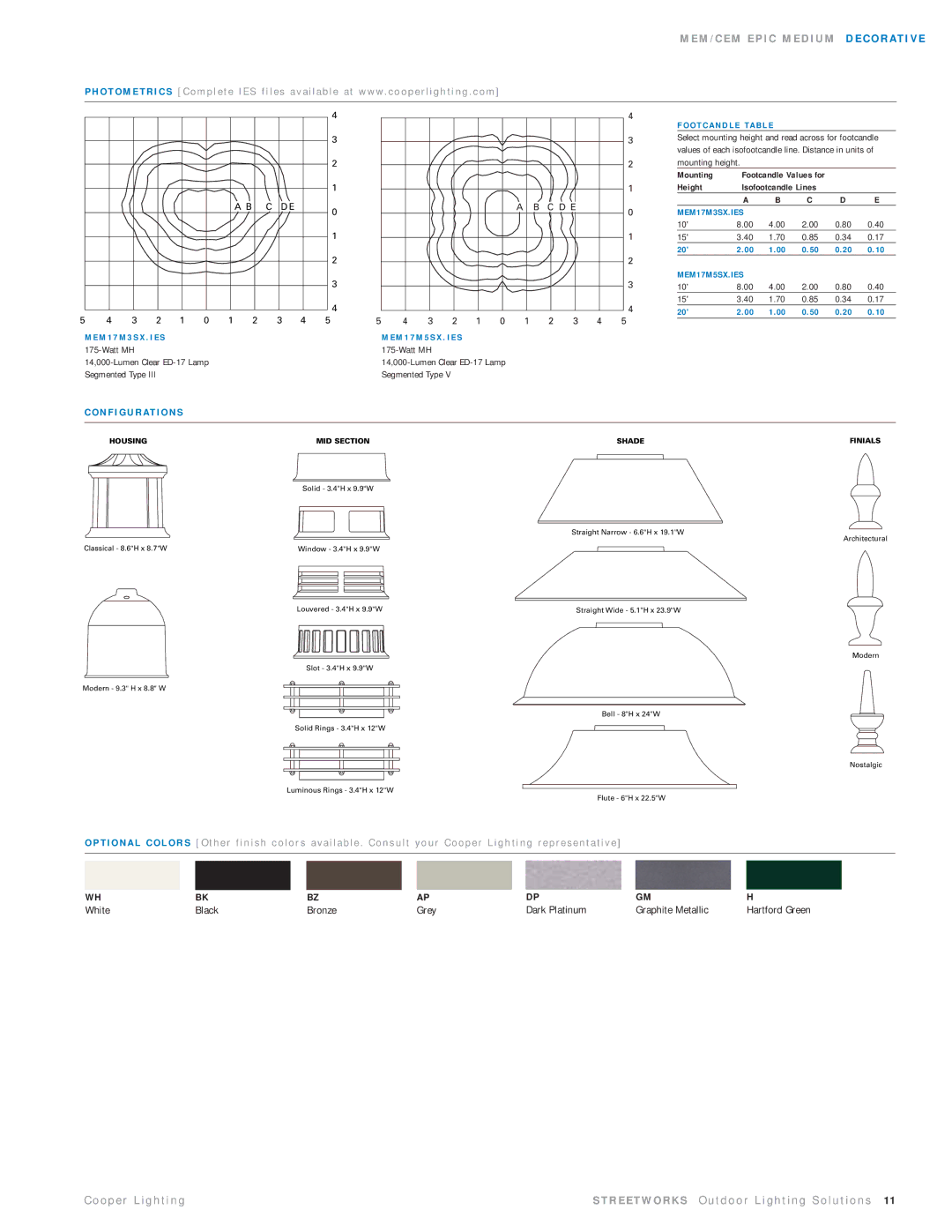

NOTE: In all flat glass and solid mid sections	NOTE: See MEM/CEM configurations on opposite page
configurations only.	for more detailed information.

IP65 RATED

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : M E M 1 7 M W W 2 S X S N B K

stainless steel fasteners.

M I D S E C T I O N

Milky white acrylic lens utilizes continuous silicone gaskets to seal lens to top casting and shade. Optional colored luminous rings are available.

S H A D E S

Heavy gauge precision spun aluminum shades offer superior surface finish and consistency in form.

D O O R F R A M E A S S E M B LY

PRODUCT	LAMP	LAMP TYPE 4
FAMILY 1	WATTAGE	M=Metal
MEM=Modern	HID 2	Halide
Epic	50=50W	S=High
Medium	70=70W	Pressure
CEM=Classic	10=100W	Sodium
Epic	15=150W	Q=Induction
Medium	17=175W
	Electrodeless
	Fluorescent 3
	55=55W
	85=85W

BALLAST TYPE 4 VOLTAGE 4

C=CWI	2=120V
H=Reac./HPF	0=208V
K=10KV CWA	4=240V
N=Hi. Reac./NPF	7=277V
P=Hi. Reac./HPF	8=480V
R=Reac./NPF	9=347V
W=CWA	K=120/277V
I=Induction	wired 120V
	L=277/120V
	wired 277V
	N=Multi-Tap
	Wired 277V
	W=Multi-Tap
	Wired 120V

DISTRIBUTION			MID SECTION	SHADE TYPE	COLOR		OPTIONS +
MA=Milk White			TYPE	SN=Straight	(add as suffix/		ACCESSORIES
Acrylic			X=Solid	Narrow	must specify)	8	(See Below)
Jar	5, 6
			(Standard)	SW=Straight	AP=Grey
2S=Type II			1=Window	Wide	BK=Black
3R=Type III			2=Louvered	BL=Bell	BZ=Bronze
Glass		6
			3=Slot	FL=Flute	DP=Dark
3S=Type III			4=Solid Rings		Platinum
4S=Type IV			5=Luminous		GM=Graphite
5R=Type V			Rings		Metallic
Glass		6
			Optional Mid		GN=Hartford
5S=Type V			Section Type		Green
SL=Spill Light			6=Luminous Rings—Red		WH=White
Eliminator 7			7=Luminous Rings—Bright Blue

8=Luminous Rings—Deep Green

9=Luminous Rings—Warm Orange

Die-cast aluminum 1/8" thick door and doorframe seal to underside of shade with a thick wall continuous silicone gasket.

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

O P T I C A L S Y S T E M S

Choice of five (5) high efficiency segmented optical systems constructed of premium 95% reflective anodized aluminum sheet.

E L E C T R I C A L T R AY

Ballast and related electrical compo- nentry are mounted to a reinforced one piece tray with integral handle. Quick disconnect wiring plugs allow easy tray removal during routine maintenance.

F I N I S H

Housing finished in a 5 stage pre- mium TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear. Standard colors include black, bronze, grey, white, dark platinum, graphite metallic, and hartford green. RAL and custom color matches available. Consult your Streetworks Representative.

E PA :

Effective Projective Area:

Flat Lens .94

Sag Lens 1.04

OPTIONS (add as suffix)

1=Single Fuse

2=Double Fuse

C=Emergency Quartz—Separate Circuit 9 E=Emergency Quartz with Time Delay 9 F=Frosted Flat Glass

H=House Side Shield 10 L=Lamp Included Q=Quartz Standby 9 R=Frosted Sag Glass

V=Vandal Shield (100W Max.) W=Wire Guard

S=Sag Glass

M=Mogul-Base Socket

PMT=Post Mount Tenon

PM-PCR=NEMA Type Photocontrol Receptacle (Post Mount Only)

NG=No Glow Luminous Mid Section 11

ACCESSORIES (order separately/replace XX with color suffix)

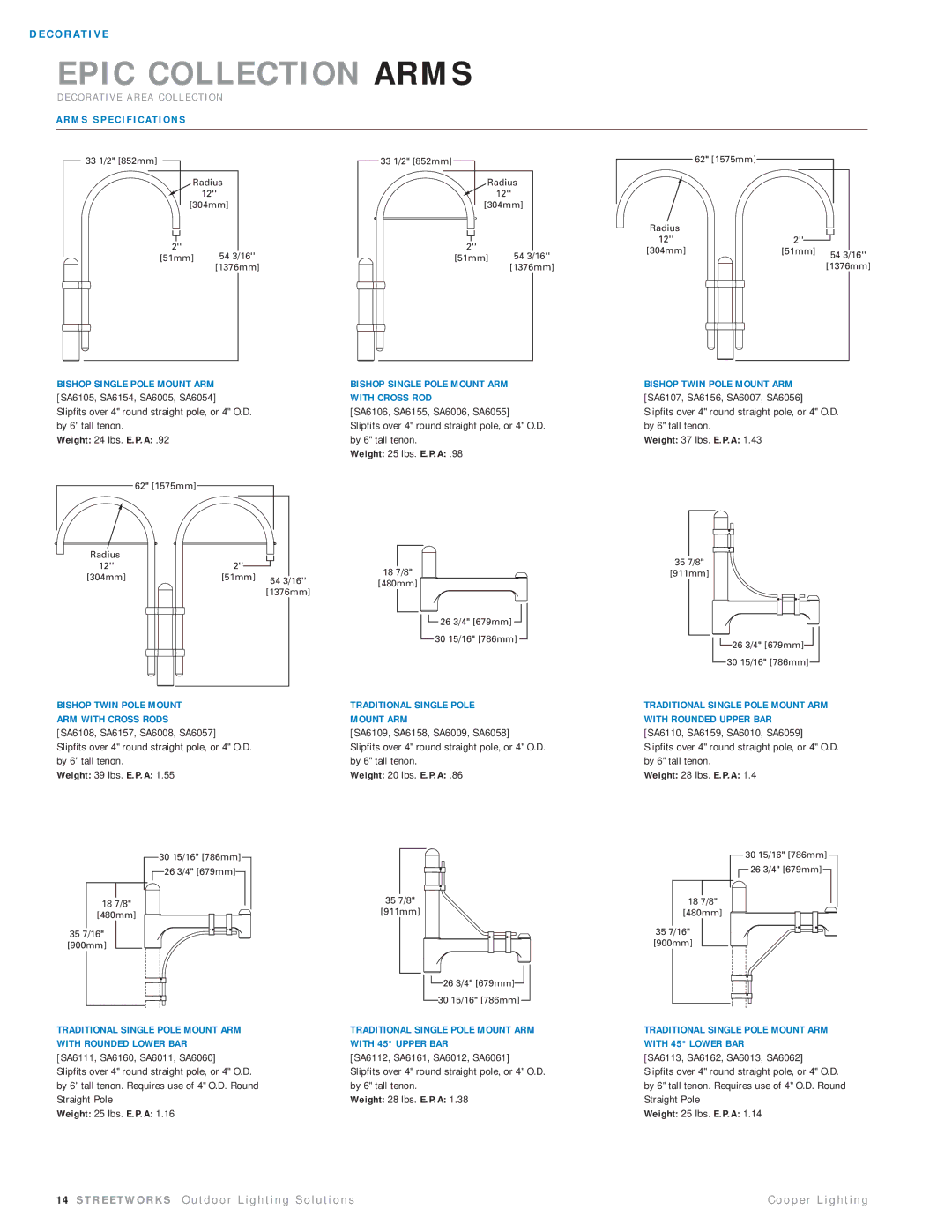

MEM Modern Epic Medium Arms

[see page 14-15 for details on arm accessories] SA6105-XX=MEM Bishop Single Pole Mount Arm SA6106-XX=MEM Bishop Single Pole Mount Arm

with Cross Rod SA6107-XX=MEM Bishop Twin Pole Mount Arm SA6108-XX=MEM Bishop Twin Pole Mount Arm

with Cross Rods SA6109-XX=MEM Traditional Single Pole Mount Arm SA6110-XX=MEM Traditional Single Pole Mount Arm

with Rounded Upper Bar SA6111-XX=MEM Traditional Single Pole Mount Arm with

Rounded Lower Bar 12

SA6112-XX=MEM Traditional Single Pole Mount Arm with 45° Upper Bar

SA6113-XX=MEM Traditional Single Pole Mount Arm with 45° Lower Bar 12

SA6114-XX=MEM Traditional Single Pole Mount Arm with 45° Upper Strap

SA6116-XX=MEM Traditional Twin Pole Mount Arm SA6117-XX=MEM Traditional Twin Pole Mount Arm with Rounded Upper Bars

SA6118-XX=MEM Traditional Twin Pole Mount Arm with Rounded Lower Bars 12

SA6119-XX=MEM Traditional Twin Pole Mount Arm with 45° Upper Bars

SA6120-XX=MEM Traditional Twin Pole Mount Arm with 45° Lower Bars 12

SA6121-XX=MEM Traditional Twin Pole Mount Arm with 45° Upper Straps

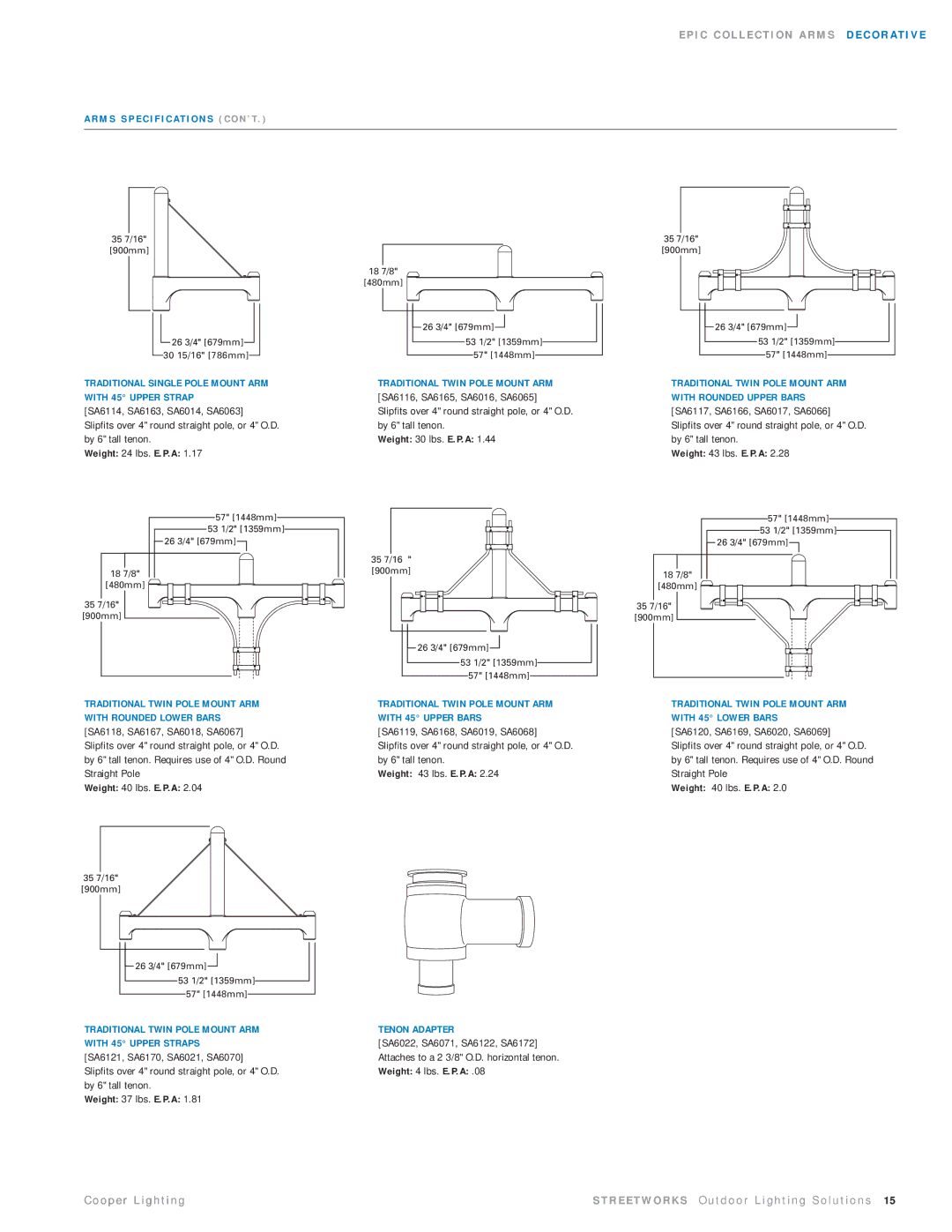

SA6122-XX=MEM Tenon Adapter for 2 3/8" O.D. Horizontal Tenon

CEM Modern Epic Medium Arms

[see page 14-15 for details on arm accessories] SA6154-XX=CEM Bishop Single Pole Mount Arm SA6155-XX=CEM Bishop Single Pole Mount Arm

with Cross Rod SA6156-XX=CEM Bishop Twin Pole Mount Arm SA6157-XX=CEM Bishop Twin Pole Mount Arm

with Cross Rods SA6158-XX=CEM Traditional Single Pole Mount Arm SA6159-XX=CEM Traditional Single Pole Mount Arm

with Rounded Upper Bar SA6160-XX=CEM Traditional Single Pole Mount Arm

with Rounded Lower Bar 12

SA6161-XX=CEM Traditional Single Pole Mount Arm with 45° Upper Bar

SA6162-XX=CEM Traditional Single Pole Mount Arm with 45° Lower Bar 12

SA6163-XX=CEM Traditional Single Pole Mount Arm with 45° Upper Strap

SA6165-XX=CEM Traditional Twin Pole Mount Arm SA6166-XX=CEM Traditional Twin Pole Mount Arm with Rounded Upper Bars

SA6167-XX=CEM Traditional Twin Pole Mount Arm with Rounded Lower Bars 12

SA6168-XX=CEM Traditional Twin Pole Mount Arm with 45° Upper Bars

SA6169-XX=CEM Traditional Twin Pole Mount Arm with 45° Lower Bars 12

SA6170-XX=CEM Traditional Twin Pole Mount Arm with 45° Upper Straps

SA6172-XX=CEM Tenon Adapter for 2 3/8" O.D. Horizontal Tenon

OA/RA1016=NEMA Photocontrol—Multi-Tap OA/RA1027=NEMA Photocontrol—480V OA/RA1201=NEMA Photocontrol—Multi-Tap (347V)

ACCESSORY OPTIONS (add as suffix to accessory) M=Modern Finial 13

A=Architectural Finial 13 N=Nostalgic Finial 13

4=NEMA Twistlock Photocontrol Receptacle 14

S H I P P I N G D ATA

Approximate Net Weight:

37 lbs. (17 kgs.)

NOTE: 1 Arms not included. Order Separately. See accessories. 2 All HID lamps are medium-base. 3 Electrodeless Fluorescent QL lamp only. Available in vertically lamped optical systems only. 120V only. 4 Refer to technical section for lamp/ballast/voltage compatibility. 5 Maximum wattage of 100W HID. 6 Vertical Lamp Only. 7 SLE only available with Solid Mid selection or with NG option. 8 Custom and RAL color matching available upon request. Consult you Cooper Lighting Representative for more information. 9 Quartz options not available on SL optic or vertical lamped optical systems. 10 House side shields available on horizontally lamped 2S, 3S, and 4S optical systems only. 11 NG option retains daytime appeal of window, louvered, slot, solid rings, or luminous rings mid section styles, but does not allow light into the upper chamber of the housing. Mid section will not glow at night, maintaining the cutoff control associated with the standard solid mid section. 12 Requires use of 4" O.D. round straight pole. 13 Traditional Arm Only. 14 Not compatible with finials.

10 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
