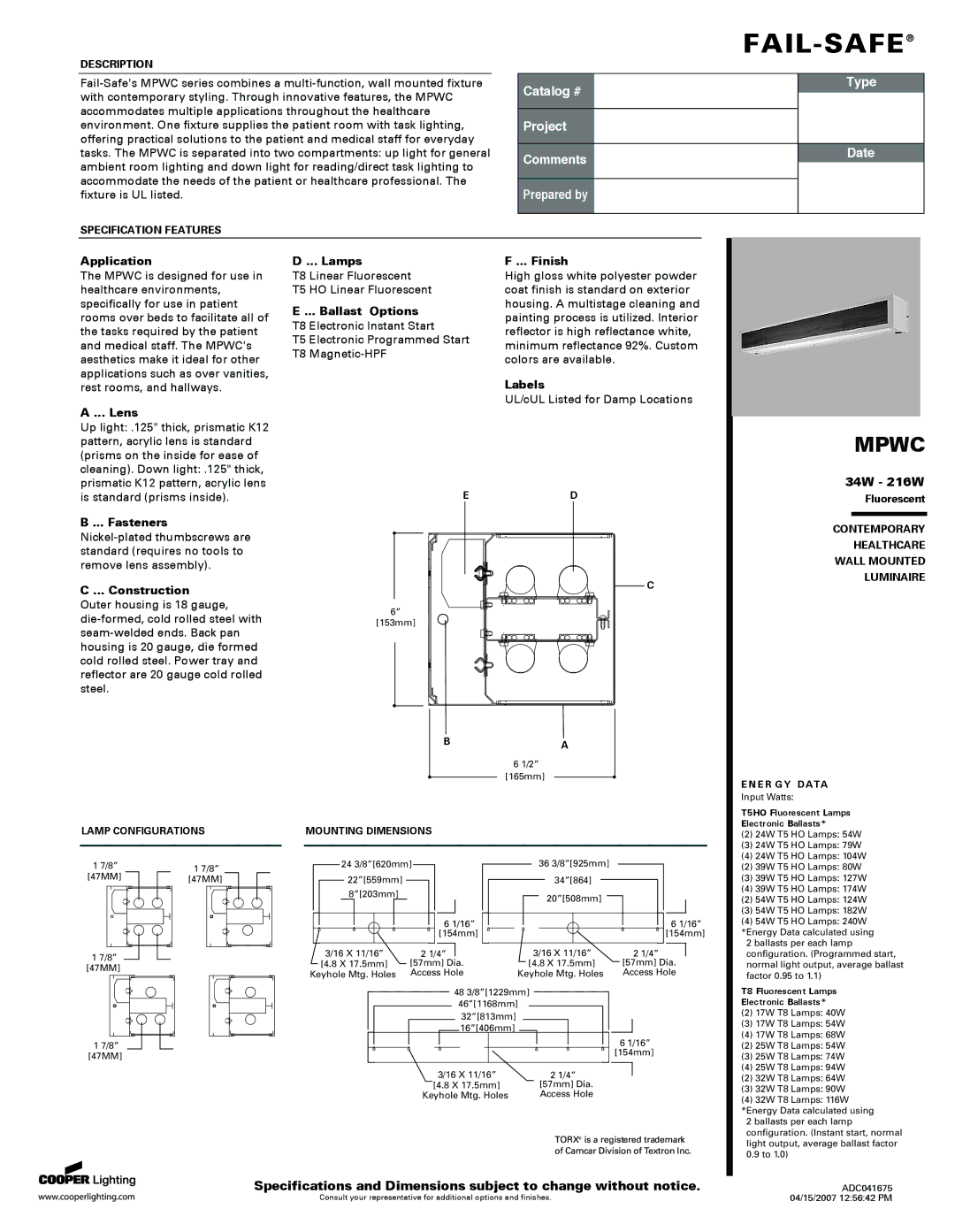

DESCRIPTION

Fail-Safe's MPWC series combines a multi-function, wall mounted fixture with contemporary styling. Through innovative features, the MPWC accommodates multiple applications throughout the healthcare environment. One fixture supplies the patient room with task lighting, offering practical solutions to the patient and medical staff for everyday tasks. The MPWC is separated into two compartments: up light for general ambient room lighting and down light for reading/direct task lighting to accommodate the needs of the patient or healthcare professional. The fixture is UL listed.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

Type

Date

Application

The MPWC is designed for use in healthcare environments, specifically for use in patient rooms over beds to facilitate all of the tasks required by the patient and medical staff. The MPWC's aesthetics make it ideal for other applications such as over vanities, rest rooms, and hallways.

A ... Lens

Up light: .125" thick, prismatic K12 pattern, acrylic lens is standard (prisms on the inside for ease of cleaning). Down light: .125" thick, prismatic K12 pattern, acrylic lens is standard (prisms inside).

B ... Fasteners

Nickel-plated thumbscrews are standard (requires no tools to remove lens assembly).

C ... Construction

Outer housing is 18 gauge, die-formed, cold rolled steel with seam-welded ends. Back pan housing is 20 gauge, die formed cold rolled steel. Power tray and reflector are 20 gauge cold rolled steel.

D ... Lamps

T8 Linear Fluorescent

T5 HO Linear Fluorescent

E ... Ballast Options

T8 Electronic Instant Start

T5 Electronic Programmed Start

T8 Magnetic-HPF

E

6”

[153mm]

B

F ... Finish

High gloss white polyester powder coat finish is standard on exterior housing. A multistage cleaning and painting process is utilized. Interior reflector is high reflectance white, minimum reflectance 92%. Custom colors are available.

Labels

UL/cUL Listed for Damp Locations

D

C

A

6 1/2” [165mm]

MPWC

34W - 216W

Fluorescent

CONTEMPORARY

HEALTHCARE

WALL MOUNTED

LUMINAIRE

E N E R G Y DATA

Input Watts:

LAMP CONFIGURATIONS



MOUNTING DIMENSIONS







T5HO Fluorescent Lamps Electronic Ballasts*

(2)

24W T5 HO Lamps: 54W

(3)

24W T5 HO Lamps: 79W

(4)

24W T5 HO Lamps: 104W

1 7/8”

1 7/8”

24 3/8”[620mm]

[47MM]





[47MM]

22”[559mm]











8”[203mm]









6 1/16”







[154mm]

1 7/8”



3/16 X 11/16”

2 1/4”



[4.8 X 17.5mm]

[57mm] Dia.

[47MM]





Keyhole Mtg. Holes

Access Hole





363/8”[925mm]

34”[864]

20”[508mm]



6

1/16”



[154mm]

3/16 X 11/16”

2 1/4”



[4.8 X 17.5mm]

[57mm] Dia.



Keyhole Mtg. Holes

Access Hole



(2)

39W T5 HO Lamps: 80W

(3)

39W T5 HO Lamps: 127W

(4)

39W T5 HO Lamps: 174W

(2)

54W T5 HO Lamps: 124W

(3)

54W T5 HO Lamps: 182W

(4)

54W T5 HO Lamps: 240W

*Energy Data calculated using

2 ballasts per each lamp

configuration. (Programmed start,

normal light output, average ballast

factor 0.95 to 1.1)

48 3/8”[1229mm]



46”[1168mm]



32”[813mm]



16”[406mm]



1 7/8”

6 1/16”

[47MM]

[154mm]



3/16 X 11/16”

2 1/4”

[4.8 X 17.5mm]

[57mm] Dia.

Keyhole Mtg. Holes

Access Hole

T8 Fluorescent Lamps

Electronic Ballasts*

(2)17W T8 Lamps: 40W

(3)17W T8 Lamps: 54W

(4)17W T8 Lamps: 68W

(2)25W T8 Lamps: 54W

(3)25W T8 Lamps: 74W

(4)25W T8 Lamps: 94W

(2)32W T8 Lamps: 64W

(3)32W T8 Lamps: 90W

(4)32W T8 Lamps: 116W *Energy Data calculated using

2 ballasts per each lamp configuration. (Instant start, normal light output, average ballast factor

0.9to 1.0)

Specifications and Dimensions subject to change without notice.

ADC041675

Consult your representative for additional options and finishes.

04/15/2007 12:56:42 PM

Page 1
Image 1

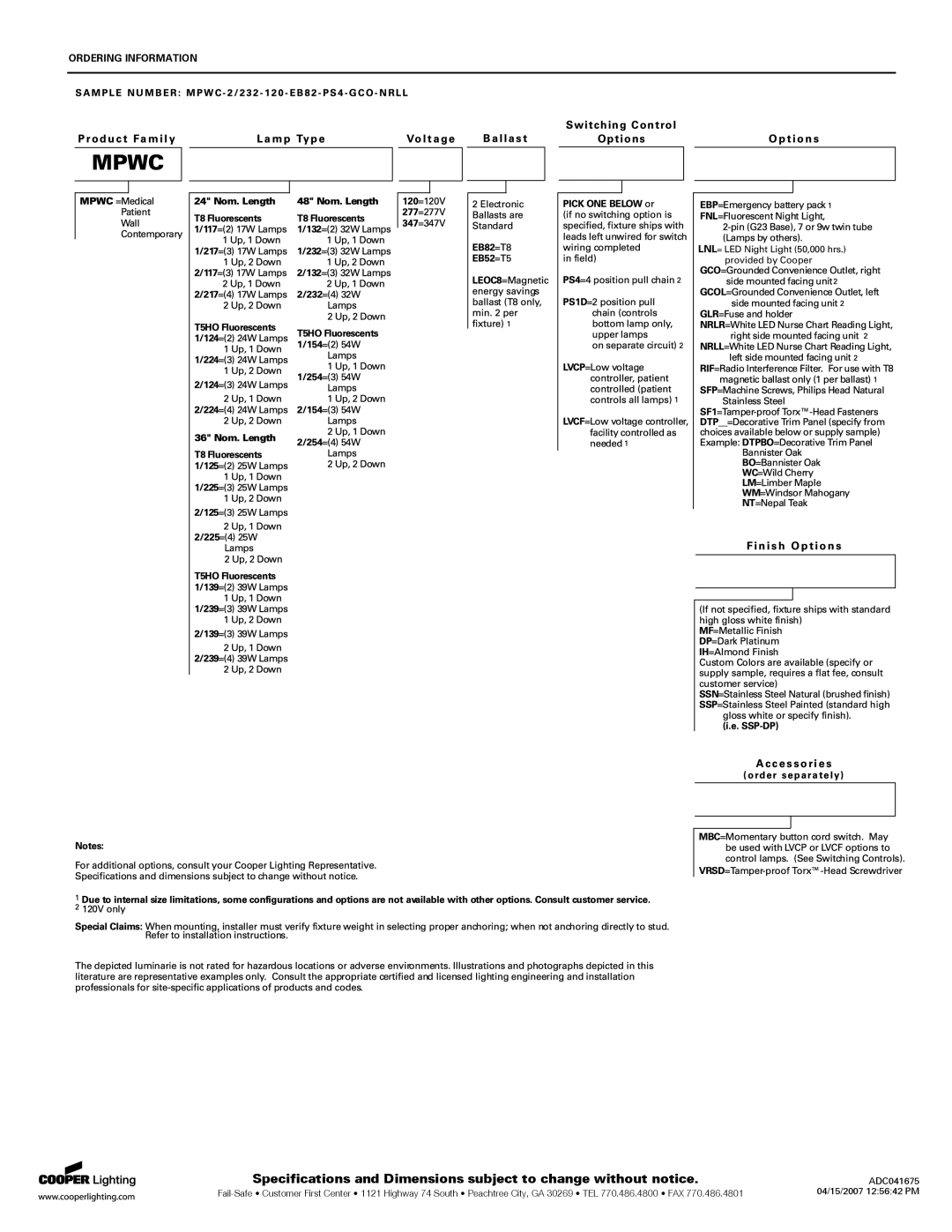

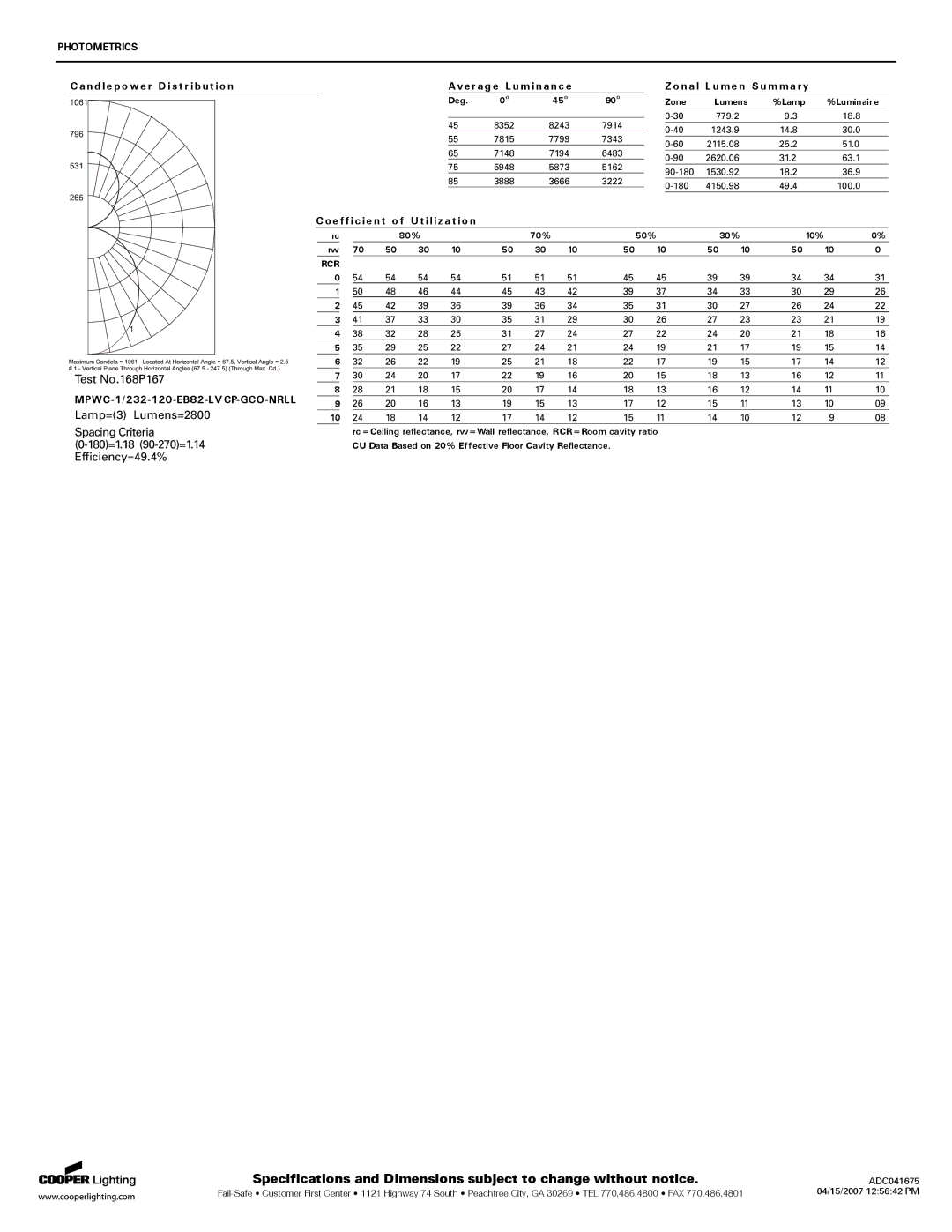

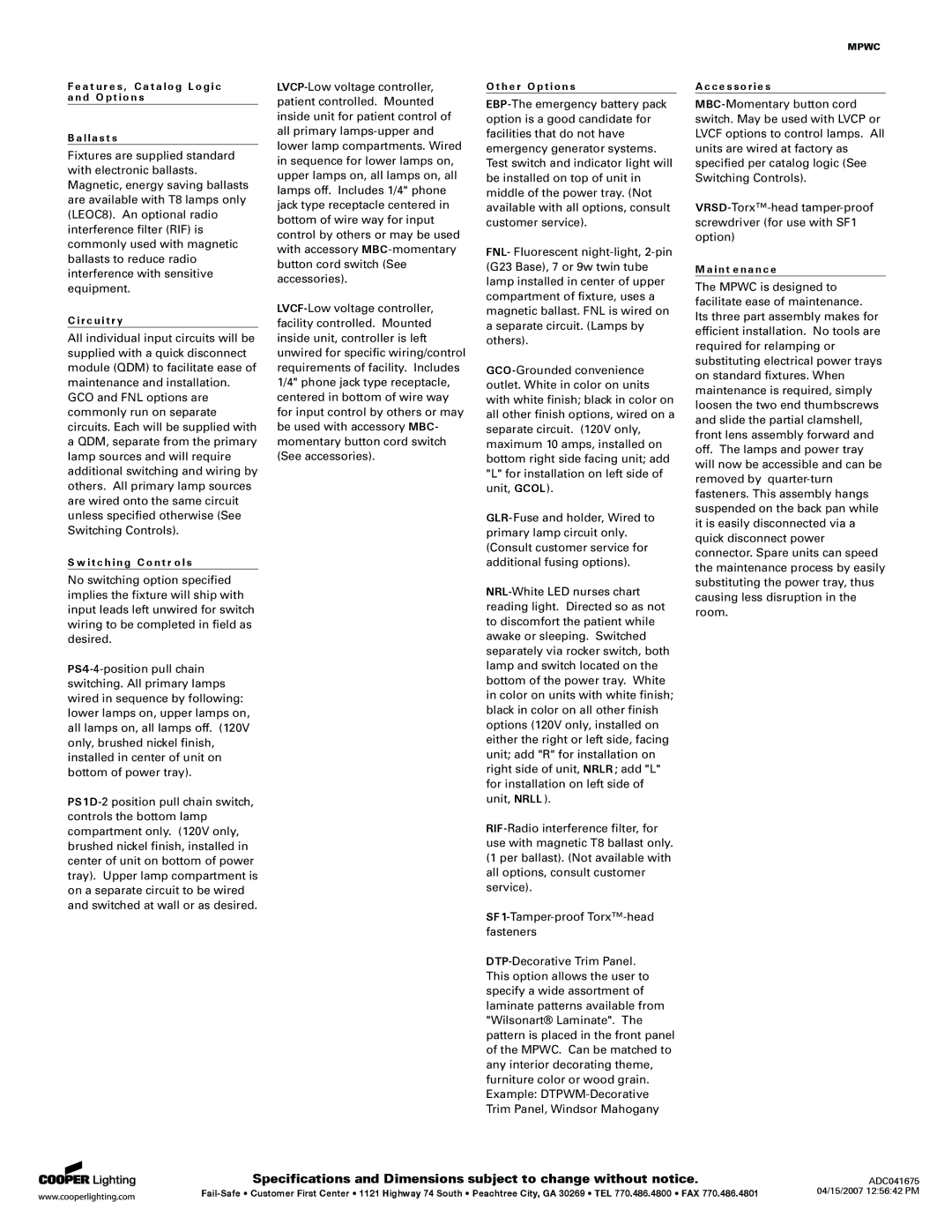

Cooper Lighting MPWC specifications T5HO Fluorescent Lamps Electronic Ballasts, T8 Fluorescent Lamps Electronic Ballasts

MPWC specifications
