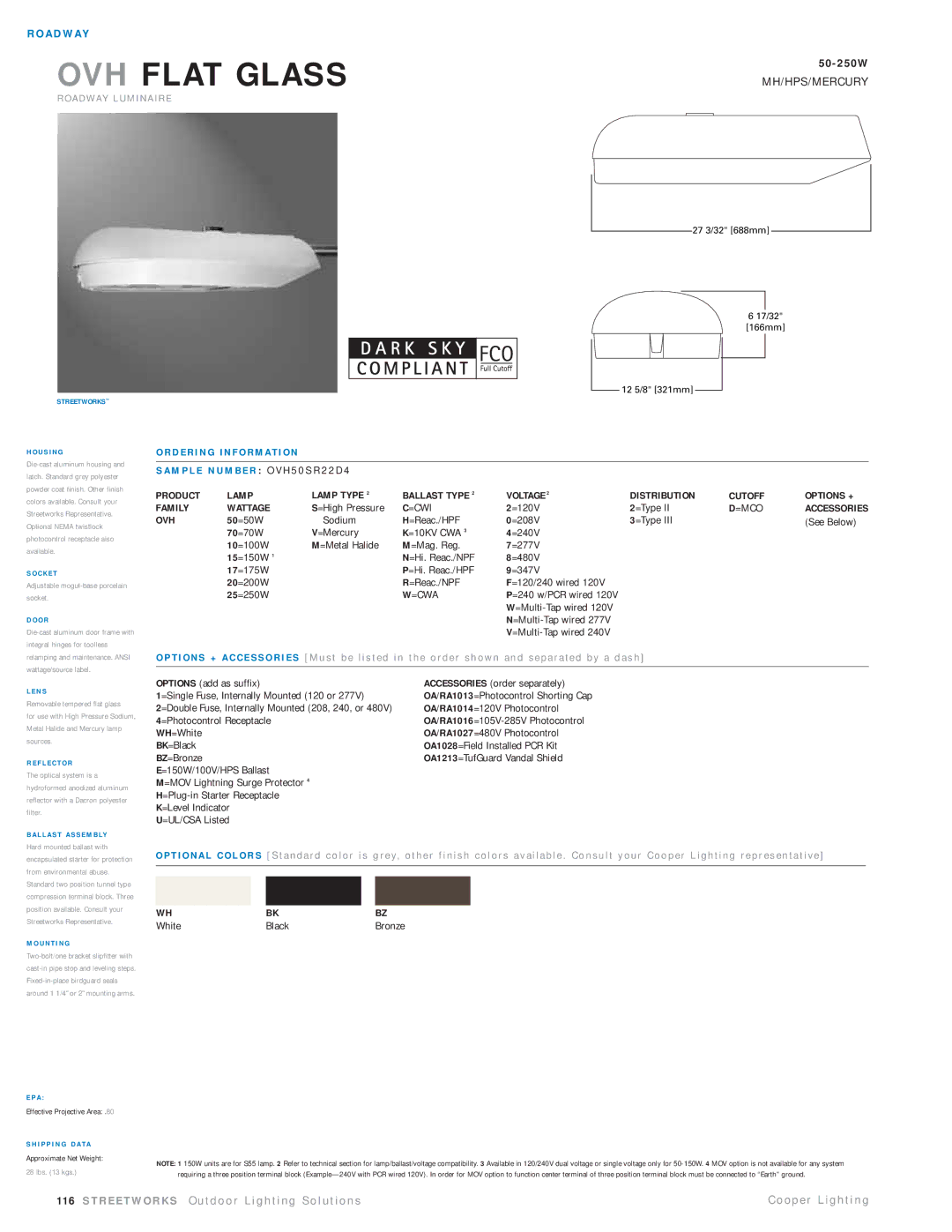

R O A D W AY
OVH FLAT GLASS	50-250W
	MH/HPS/MERCURY
R O A D WAY L U M I N A I R E

27 3/32" [688mm]

6 17/32"

[166mm]

12 5/8" [321mm]

STREETWORKS™

H O U S I N G

Die-cast aluminum housing and latch. Standard grey polyester powder coat finish. Other finish colors available. Consult your Streetworks Representative. Optional NEMA twistlock photocontrol receptacle also available.

S O C K E T

Adjustable mogul-base porcelain socket.

D O O R

Die-cast aluminum door frame with integral hinges for toolless relamping and maintenance. ANSI wattage/source label.

O R D E R I N G I N F O R M AT I O NS A M P L E N U M B E R : O V H 5 0 S R 2 2 D 4

PRODUCT	LAMP	LAMP TYPE 2	BALLAST TYPE 2	VOLTAGE 2	DISTRIBUTION	CUTOFF	OPTIONS +
FAMILY	WATTAGE	S=High Pressure	C=CWI	2=120V	2=Type II	D=MCO	ACCESSORIES
OVH	50=50W	Sodium	H=Reac./HPF	0=208V	3=Type III		(See Below)
	70=70W	V=Mercury	K=10KV CWA 3	4=240V
	10=100W	M=Metal Halide	M=Mag. Reg.	7=277V
	15=150W 1		N=Hi. Reac./NPF	8=480V
	17=175W		P=Hi. Reac./HPF	9=347V
	20=200W		R=Reac./NPF	F=120/240 wired 120V
	25=250W		W=CWA	P=240 w/PCR wired 120V
				W=Multi-Tap wired 120V
				N=Multi-Tap wired 277V
				V=Multi-Tap wired 240V

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

L E N S

Removable tempered flat glass

for use with High Pressure Sodium, Metal Halide and Mercury lamp sources.

R E F L E C T O R

The optical system is a hydroformed anodized aluminum reflector with a Dacron polyester filter.

B A L L A S T A S S E M B LY

Hard mounted ballast with encapsulated starter for protection from environmental abuse. Standard two position tunnel type compression terminal block. Three position available. Consult your Streetworks Representative.

M O U N T I N G

OPTIONS (add as suffix)	ACCESSORIES (order separately)
1=Single Fuse, Internally Mounted (120 or 277V)	OA/RA1013=Photocontrol Shorting Cap
2=Double Fuse, Internally Mounted (208, 240, or 480V)	OA/RA1014=120V Photocontrol
4=Photocontrol Receptacle	OA/RA1016=105V-285V Photocontrol
WH=White	OA/RA1027=480V Photocontrol
BK=Black	OA1028=Field Installed PCR Kit
BZ=Bronze	OA1213=TufGuard Vandal Shield
E=150W/100V/HPS Ballast
M=MOV Lightning Surge Protector 4
H=Plug-in Starter Receptacle
K=Level Indicator
U=UL/CSA Listed

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	BZ
White	Black	Bronze

Two-bolt/one bracket slipfitter with cast-in pipe stop and leveling steps. Fixed-in-place birdguard seals around 1 1/4" or 2" mounting arms.

E PA :

Effective Projective Area: .80

S H I P P I N G D ATA

Approximate Net Weight:

28 lbs. (13 kgs.)

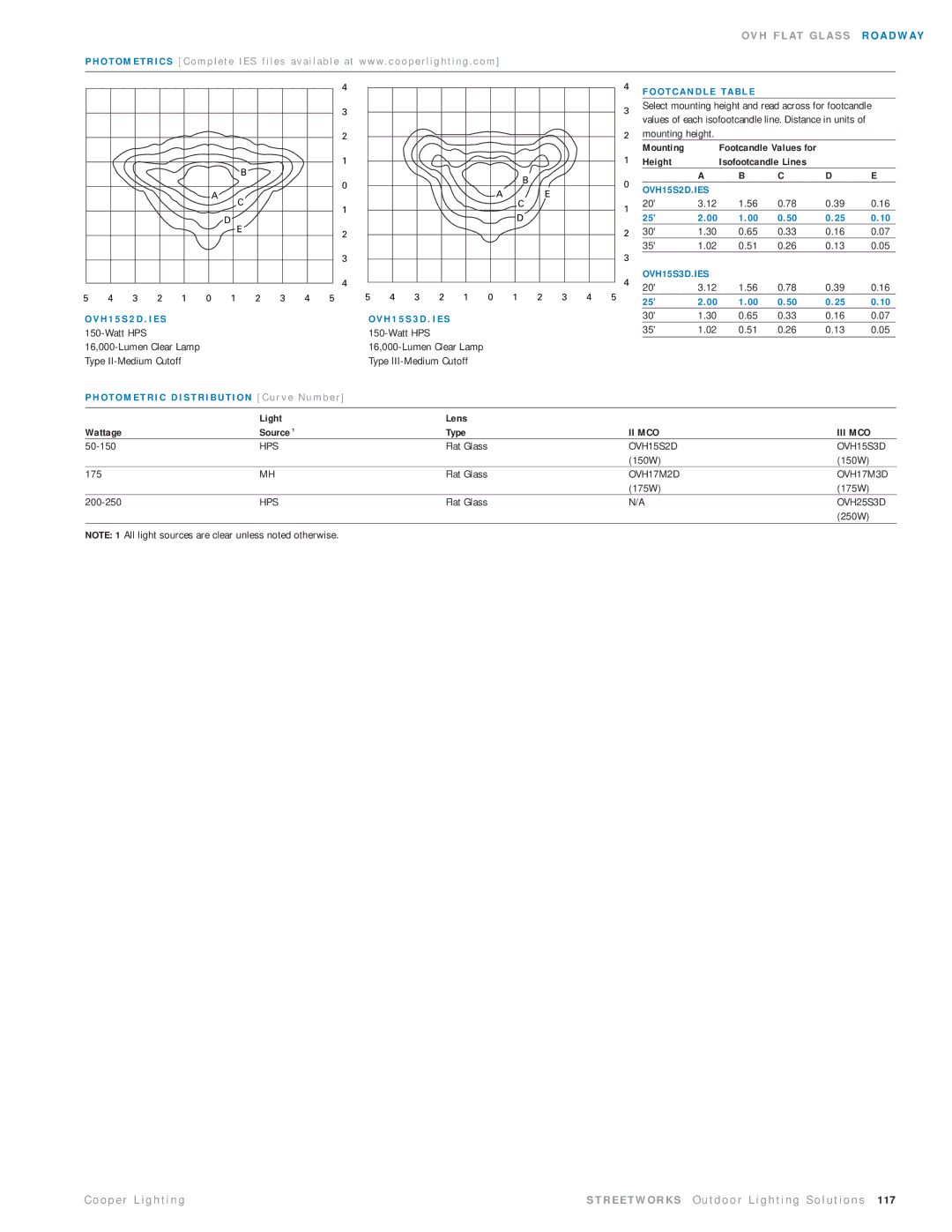

NOTE: 1 150W units are for S55 lamp. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 Available in 120/240V dual voltage or single voltage only for 50-150W. 4 MOV option is not available for any system requiring a three position terminal block (Example—240V with PCR wired 120V). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.
