COOPER LIGHTING - METALUX®

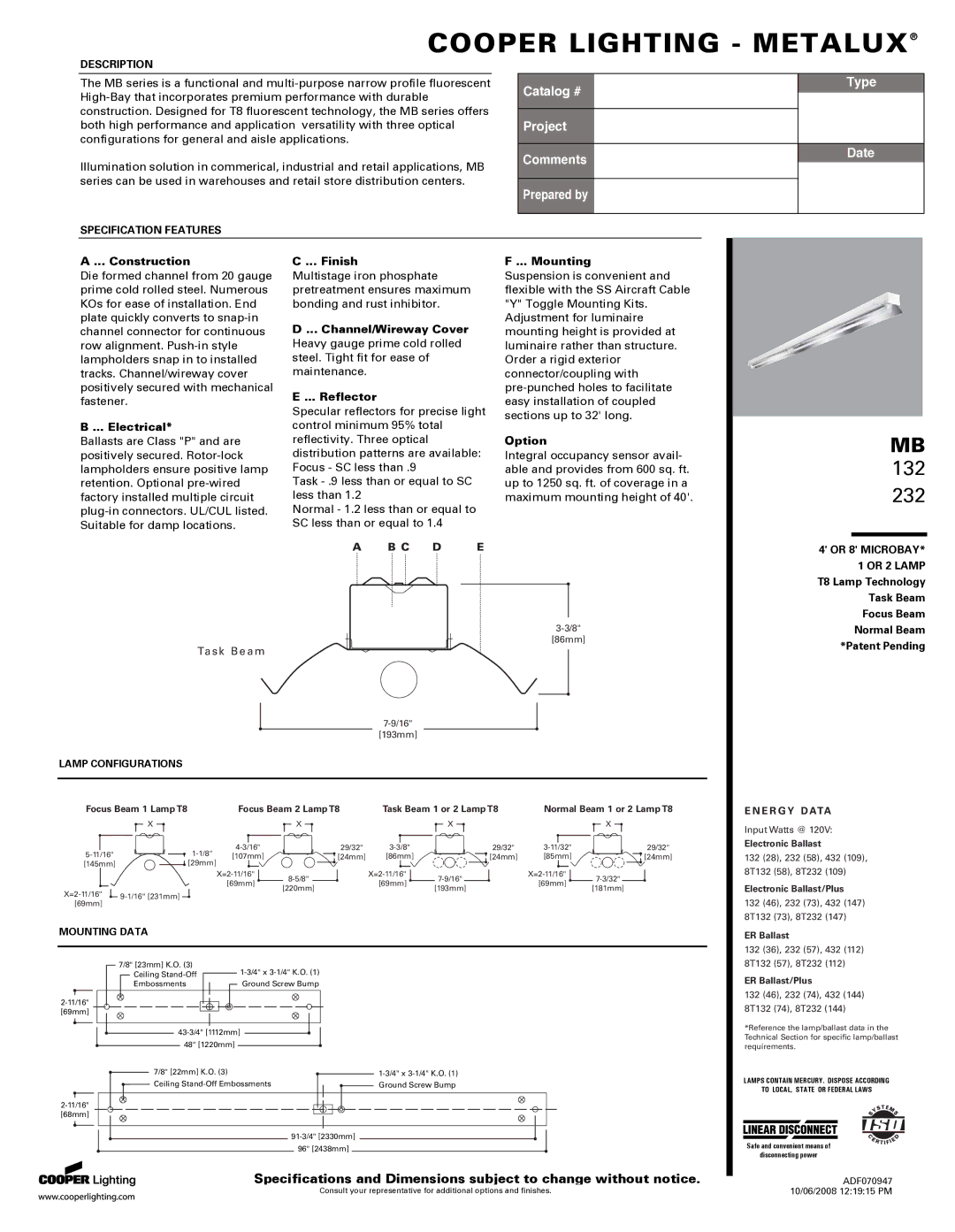

DESCRIPTION

The MB series is a functional and multi-purpose narrow profile fluorescent High-Bay that incorporates premium performance with durable construction. Designed for T8 fluorescent technology, the MB series offers both high performance and application versatility with three optical configurations for general and aisle applications.

Illumination solution in commerical, industrial and retail applications, MB series can be used in warehouses and retail store distribution centers.

Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

A ... Construction

Die formed channel from 20 gauge prime cold rolled steel. Numerous KOs for ease of installation. End plate quickly converts to snap-in channel connector for continuous row alignment. Push-in style lampholders snap in to installed tracks. Channel/wireway cover positively secured with mechanical fastener.

B ... Electrical*

Ballasts are Class "P" and are positively secured. Rotor-lock lampholders ensure positive lamp retention. Optional pre-wired factory installed multiple circuit plug-in connectors. UL/CUL listed. Suitable for damp locations.

C ... Finish

Multistage iron phosphate pretreatment ensures maximum bonding and rust inhibitor.

D ... Channel/Wireway Cover

Heavy gauge prime cold rolled steel. Tight fit for ease of maintenance.

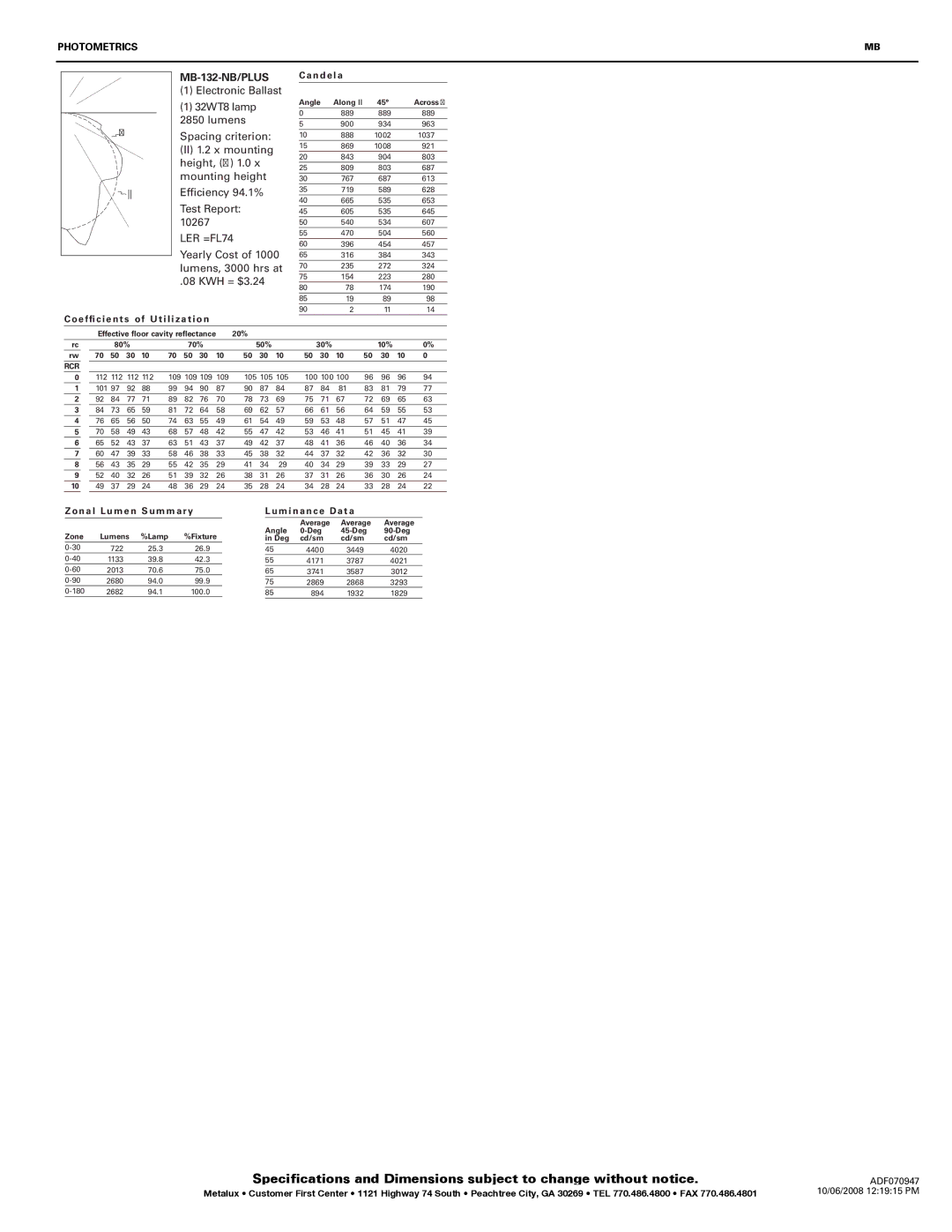

E ... Reflector

Specular reflectors for precise light control minimum 95% total reflectivity. Three optical distribution patterns are available: Focus - SC less than .9

Task - .9 less than or equal to SC less than 1.2

Normal - 1.2 less than or equal to SC less than or equal to 1.4

A B C D E

F ... Mounting

Suspension is convenient and flexible with the SS Aircraft Cable "Y" Toggle Mounting Kits. Adjustment for luminaire mounting height is provided at luminaire rather than structure. Order a rigid exterior connector/coupling with pre-punched holes to facilitate easy installation of coupled sections up to 32' long.

Option

Integral occupancy sensor avail- able and provides from 600 sq. ft. up to 1250 sq. ft. of coverage in a maximum mounting height of 40'.

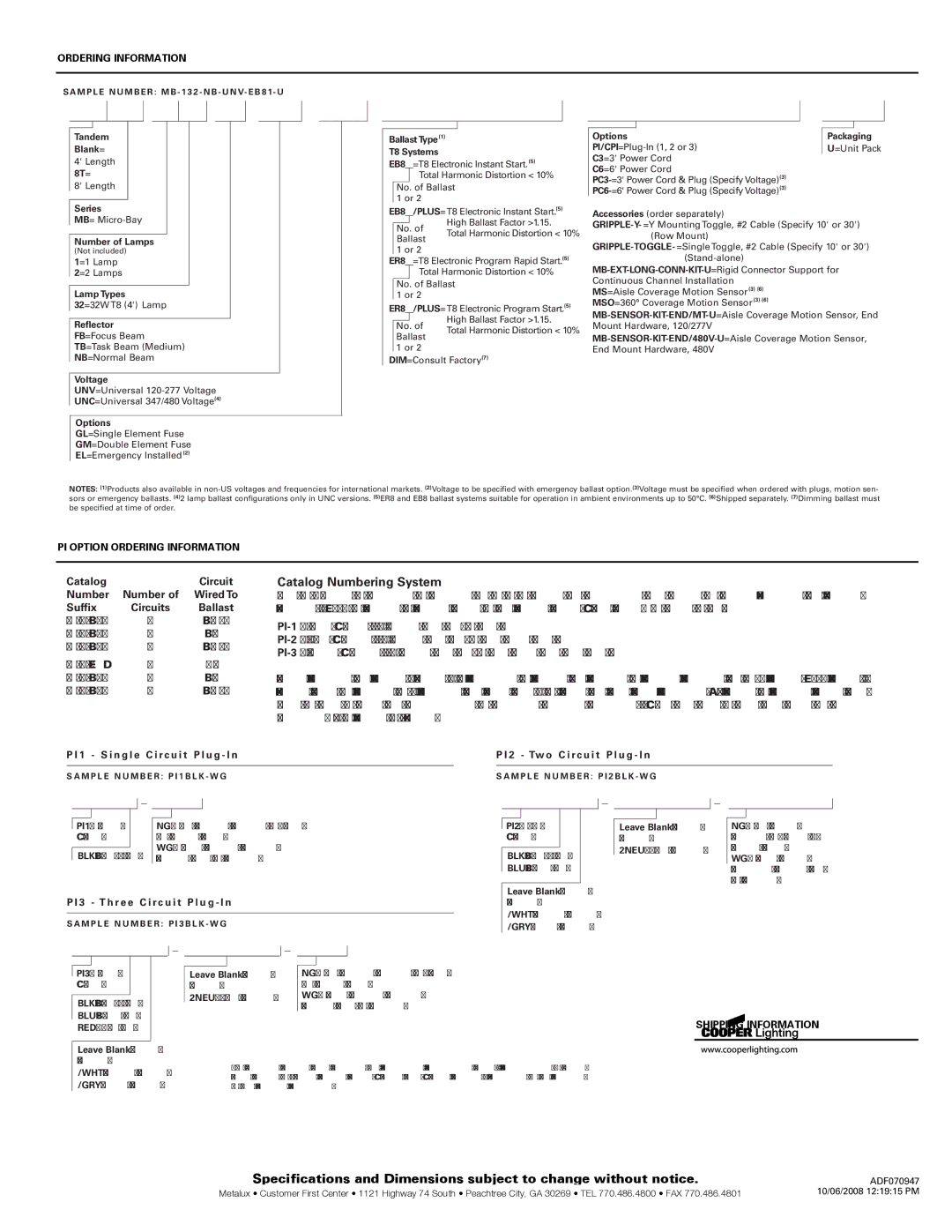

MB

132

232

4' OR 8' MICROBAY*

1 OR 2 LAMP

T8 Lamp Technology

Task Beam

Focus Beam

3-3/8"

[86mm]

Ta s k B e a m

7-9/16"

[193mm]

LAMP CONFIGURATIONS

Focus Beam 1 Lamp T8



Focus Beam 2 Lamp T8

Task Beam 1 or 2 Lamp T8

Normal Beam 1 or 2 Lamp T8



X





X



X



X

5-11/16"



1-1/8"

4-3/16"

29/32"

3-3/8"

29/32"

3-11/32"

29/32"



[107mm]

[24mm]

[86mm]

[24mm]

[85mm]

[24mm]

[145mm]



[29mm]



















X=2-11/16"

8-5/8"

X=2-11/16"

7-9/16"

X=2-11/16"

7-3/32"







[69mm]

[69mm]

[69mm]







[220mm]

[193mm]

[181mm]

X=2-11/16"

9-1/16" [231mm]























[69mm]































MOUNTING DATA

7/8" [23mm] K.O. (3)

1-3/4" x 3-1/4" K.O. (1)



Ceiling Stand-Off



Embossments

Ground Screw Bump



2-11/16"





[69mm]





43-3/4" [1112mm]



48" [1220mm]





7/8" [22mm] K.O. (3)



1-3/4" x 3-1/4" K.O. (1)

Ceiling Stand-Off Embossments

Ground Screw Bump

2-11/16"





[68mm]







91-3/4" [2330mm]





96" [2438mm]



Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

Normal Beam

*Patent Pending

E N E R G Y DATA

Input Watts @ 120V:

Electronic Ballast

132 (28), 232 (58), 432 (109),

8T132 (58), 8T232 (109)

Electronic Ballast/Plus

132 (46), 232 (73), 432 (147)

8T132 (73), 8T232 (147)

ER Ballast

132 (36), 232 (57), 432 (112)

8T132 (57), 8T232 (112)

ER Ballast/Plus

132 (46), 232 (74), 432 (144)

8T132 (74), 8T232 (144)

*Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements.

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power

ADF070947 10/06/2008 12:19:15 PM
