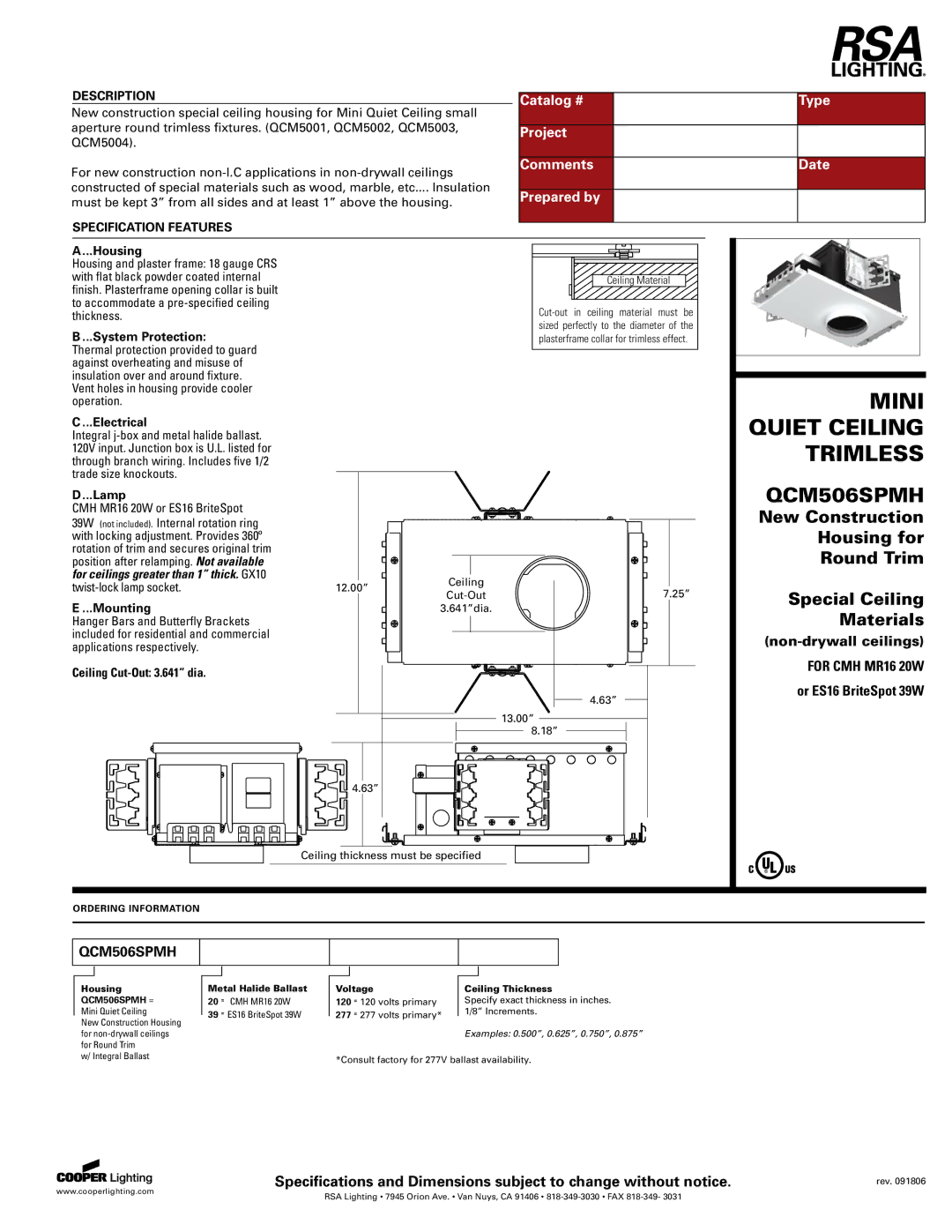

DESCRIPTION

New construction special ceiling housing for Mini Quiet Ceiling small aperture round trimless fixtures. (QCM5001, QCM5002, QCM5003, QCM5004).

For new construction non-I.C applications in non-drywall ceilings constructed of special materials such as wood, marble, etc.... Insulation

must be kept 3” from all sides and at least 1” above the housing.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A....Housing

Housing and plaster frame: 18 gauge CRS with flat black powder coated internal finish. Plasterframe opening collar is built to accommodate a pre-specified ceiling thickness.

B....System Protection:

Thermal protection provided to guard against overheating and misuse of insulation over and around fixture. Vent holes in housing provide cooler operation.

C....Electrical

Integral j-box and metal halide ballast. 120V input. Junction box is U.L. listed for through branch wiring. Includes five 1/2 trade size knockouts.

D....Lamp

CMH MR16 20W or ES16 BriteSpot

39W (not included). Internal rotation ring with locking adjustment. Provides 360º rotation of trim and secures original trim position after relamping. Not available for ceilings greater than 1” thick. GX10 twist-lock lamp socket.

E....Mounting

Hanger Bars and Butterfly Brackets included for residential and commercial applications respectively.

Ceiling Cut-Out: 3.641” dia.

Ceiling Material

Cut-out in ceiling material must be sized perfectly to the diameter of the plasterframe collar for trimless effect.

12.00”

Ceiling

7.25”

Cut-Out





3.641”dia.



4.63”

13.00”

8.18”

4.63”

Ceiling thickness must be specified

MINI QUIET CEILING TRIMLESS

QCM506SPMH

New Construction

Housing for

Round Trim

Special Ceiling Materials

(non-drywall ceilings)

FOR CMH MR16 20W or ES16 BriteSpot 39W

ORDERING INFORMATION

QCM506SPMH

__

__

Housing QCM506SPMH = Mini Quiet Ceiling

New Construction Housing for non-drywall ceilings for Round Trim

w/ Integral Ballast

Metal Halide Ballast

20 = CMH MR16 20W

39 = ES16 BriteSpot 39W

















Voltage



Ceiling Thickness



120

= 120 volts primary



Specify exact thickness in inches.



277

= 277 volts primary*



1/8” Increments.





Examples: 0.500”, 0.625”, 0.750”, 0.875”

*Consult factory for 277V ballast availability.

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1
