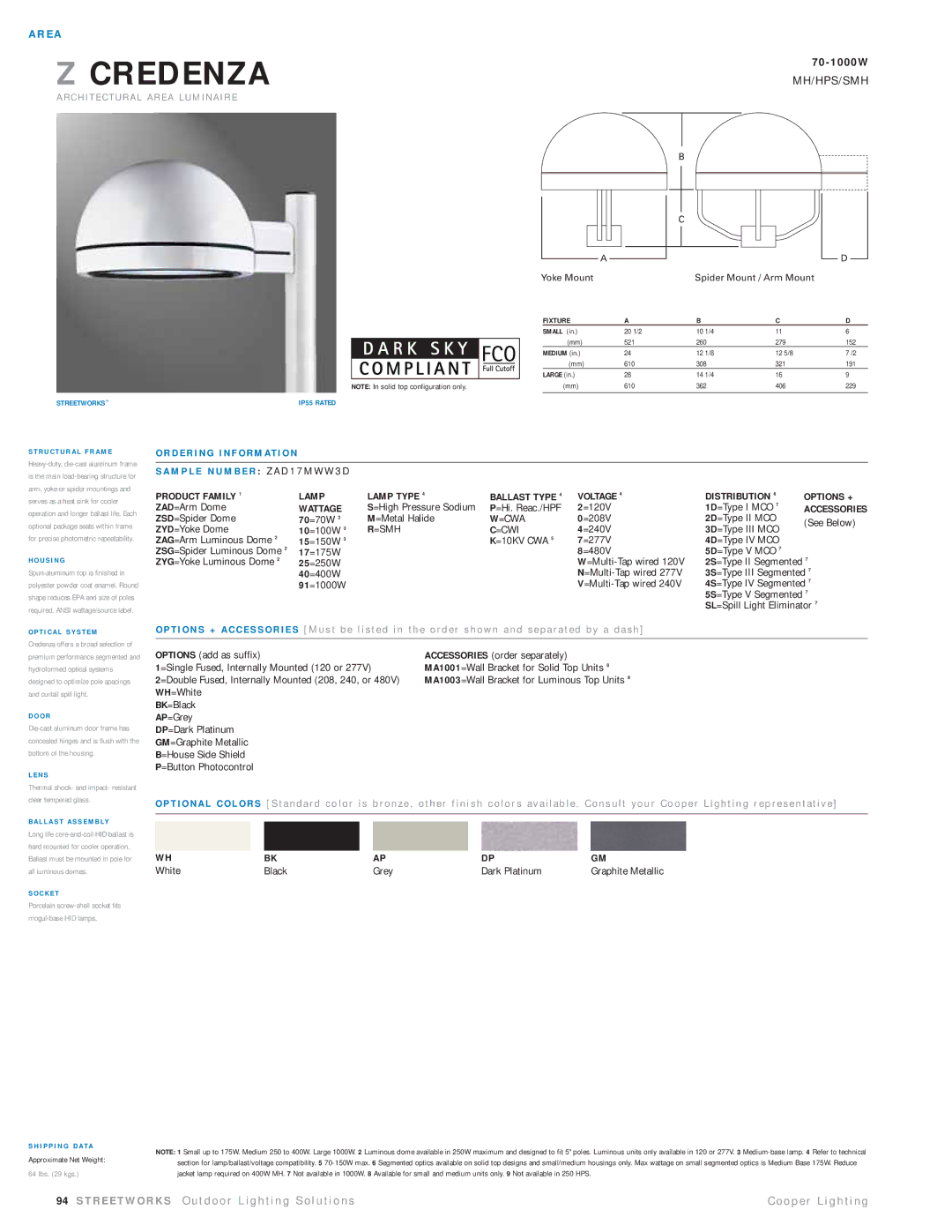

A R E A

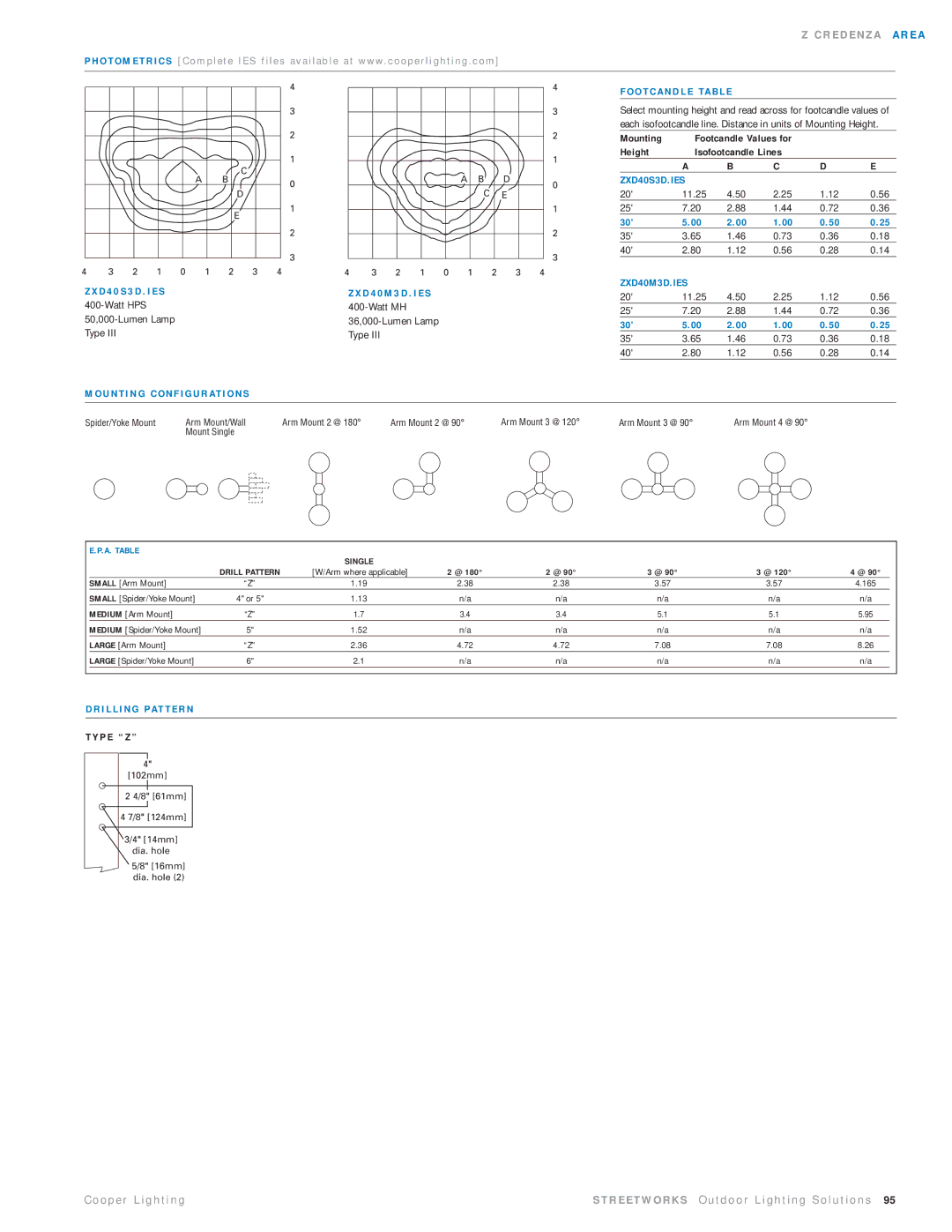

ZCREDENZA

A R C H I T E C T U R A L A R E A L U M I N A I R E

A

Yoke Mount

70-1000W

MH/HPS/SMH

B

C

D

Spider Mount / Arm Mount

	FIXTURE		A	B	C	D
	SMALL (in.)		20 1/2	10 1/4	11	6
	S	(mm)	521	260	279	152
	MEDIUM (in.)		24	12 1/8	12 5/8	7 /2
		(mm)	610	308	321	191
	LARGE (in.)		28	14 1/4	16	9
NOTE: In solid top configuration only.		(mm)	610	362	406	229

STREETWORKS™ IP55 RATED

S T R U C T U R A L F R A M E

Heavy-duty, die-cast aluminum frame is the main load-bearing structure for arm, yoke or spider mountings and serves as a heat sink for cooler operation and longer ballast life. Each optional package seats within frame for precise photometric repeatability.

H O U S I N G

Spun-aluminum top is finished in polyester powder coat enamel. Round shape reduces EPA and size of poles required. ANSI wattage/source label.

O P T I C A L S Y S T E M

Credenza offers a broad selection of premium performance segmented and hydroformed optical systems designed to optimize pole spacings and curtail spill light.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : Z A D 1 7 M W W 3 D

PRODUCT FAMILY 1	LAMP	LAMP TYPE 4		BALLAST TYPE 4	VOLTAGE 4	DISTRIBUTION 6	OPTIONS +
ZAD=Arm Dome	WATTAGE	S=High Pressure Sodium		P=Hi. Reac./HPF	2=120V	1D=Type I MCO 7	ACCESSORIES
ZSD=Spider Dome	70=70W 3	M=Metal Halide		W=CWA	0=208V	2D=Type II MCO	(See Below)
ZYD=Yoke Dome	10=100W 3	R=SMH		C=CWI	4=240V	3D=Type III MCO
ZAG=Arm Luminous Dome 2	15=150W 3			K=10KV CWA 5	7=277V	4D=Type IV MCO
ZSG=Spider Luminous Dome 2	17=175W				8=480V	5D=Type V MCO 7
ZYG=Yoke Luminous Dome 2	25=250W				W=Multi-Tap wired 120V	2S=Type II Segmented 7
	40=400W				N=Multi-Tap wired 277V	3S=Type III Segmented 7
	91=1000W				V=Multi-Tap wired 240V	4S=Type IV Segmented 7
						5S=Type V Segmented 7
						SL=Spill Light Eliminator 7
O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
OPTIONS (add as suffix)			ACCESSORIES (order separately)
1=Single Fused, Internally Mounted (120 or 277V)			MA1001=Wall Bracket for Solid Top Units 8
2=Double Fused, Internally Mounted (208, 240, or 480V)			MA1003=Wall Bracket for Luminous Top Units 9
WH=White
BK=Black

D O O R

Die-cast aluminum door frame has concealed hinges and is flush with the bottom of the housing.

L E N S

Thermal shock- and impact- resistant clear tempered glass.

B A L L A S T A S S E M B LY

Long life core-and-coil HID ballast is hard mounted for cooler operation. Ballast must be mounted in pole for all luminous domes.

S O C K E T

Porcelain screw-shell socket fits mogul-base HID lamps.

AP=Grey

DP=Dark Platinum

GM=Graphite Metallic

B=House Side Shield

P=Button Photocontrol

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	AP	DP	GM
White	Black	Grey	Dark Platinum	Graphite Metallic

S H I P P I N G D ATA

Approximate Net Weight:

64 lbs. (29 kgs.)

NOTE: 1 Small up to 175W. Medium 250 to 400W. Large 1000W. 2 Luminous dome available in 250W maximum and designed to fit 5" poles. Luminous units only available in 120 or 277V. 3 Medium-base lamp. 4 Refer to technical section for lamp/ballast/voltage compatibility. 5 70-150W max. 6 Segmented optics available on solid top designs and small/medium housings only. Max wattage on small segmented optics is Medium Base 175W. Reduce jacket lamp required on 400W MH. 7 Not available in 1000W. 8 Available for small and medium units only. 9 Not available in 250 HPS.

94 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
