Dell 4210X - page 57

Using Your Projector 57

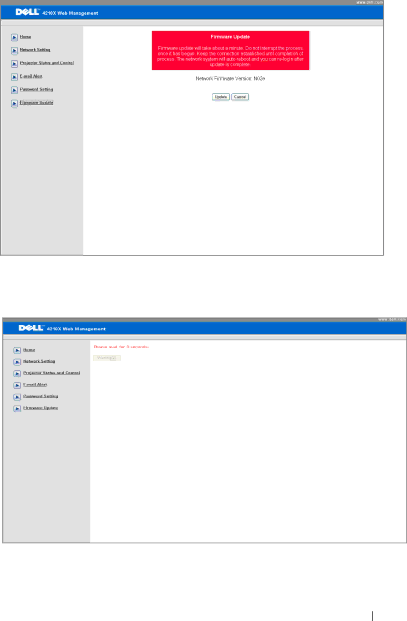

Firmware Update

Use the Firmware Update page to update your projector’s firmware. Press Update

to start.

• Please wait till the count reaches 0.
