Electrolux 726553, 727076, 726555, 726554, RCDR2M12U, RCDR2M13U, RCDR2M04U manual RCDR2M20U

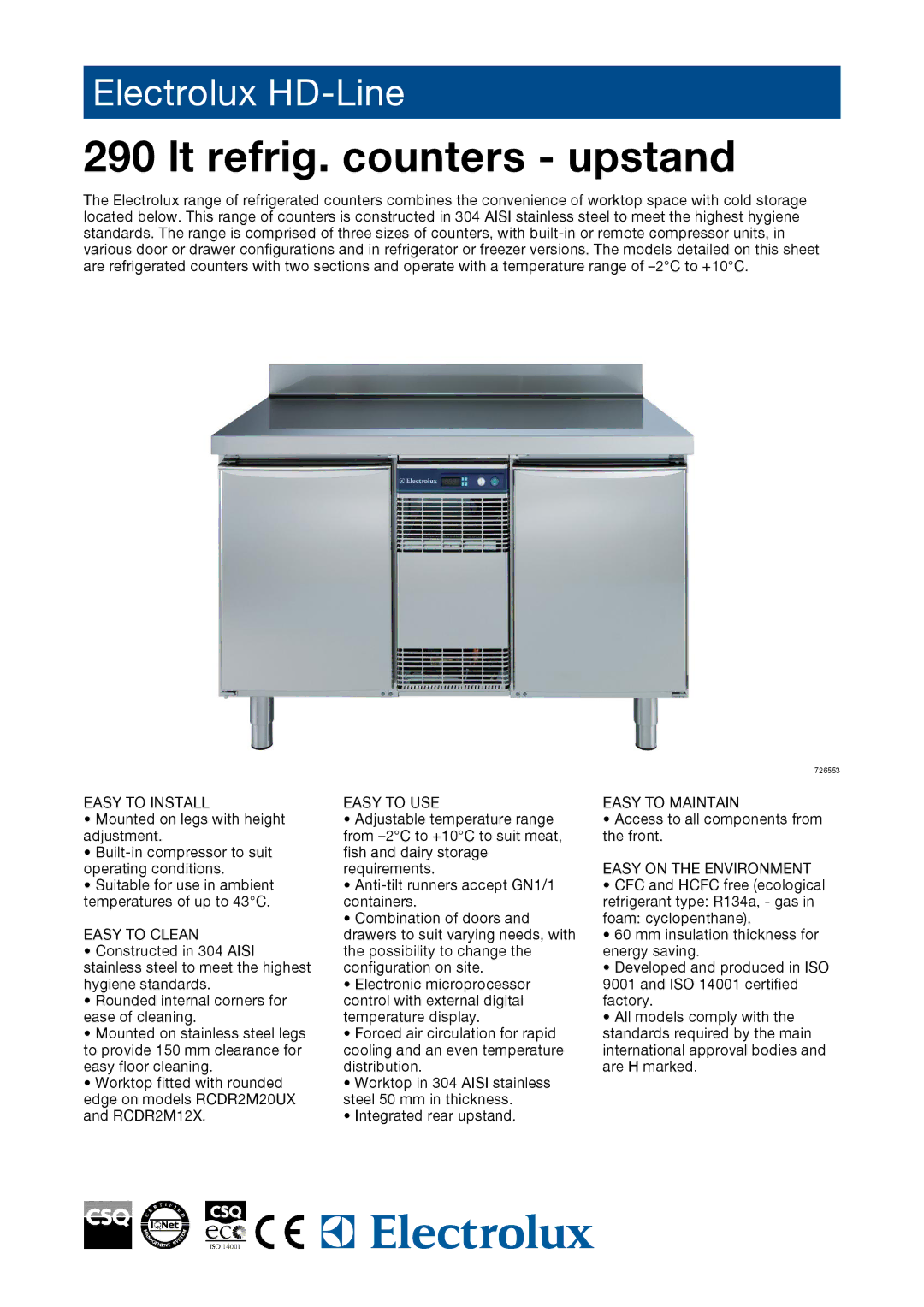

Electrolux HD-Line

290 lt refrig. counters - upstand

	RCDR2M20U	RCDR2M12U	RCDR2M04U	RCDR2M13U
	726553	726554	726555	727076

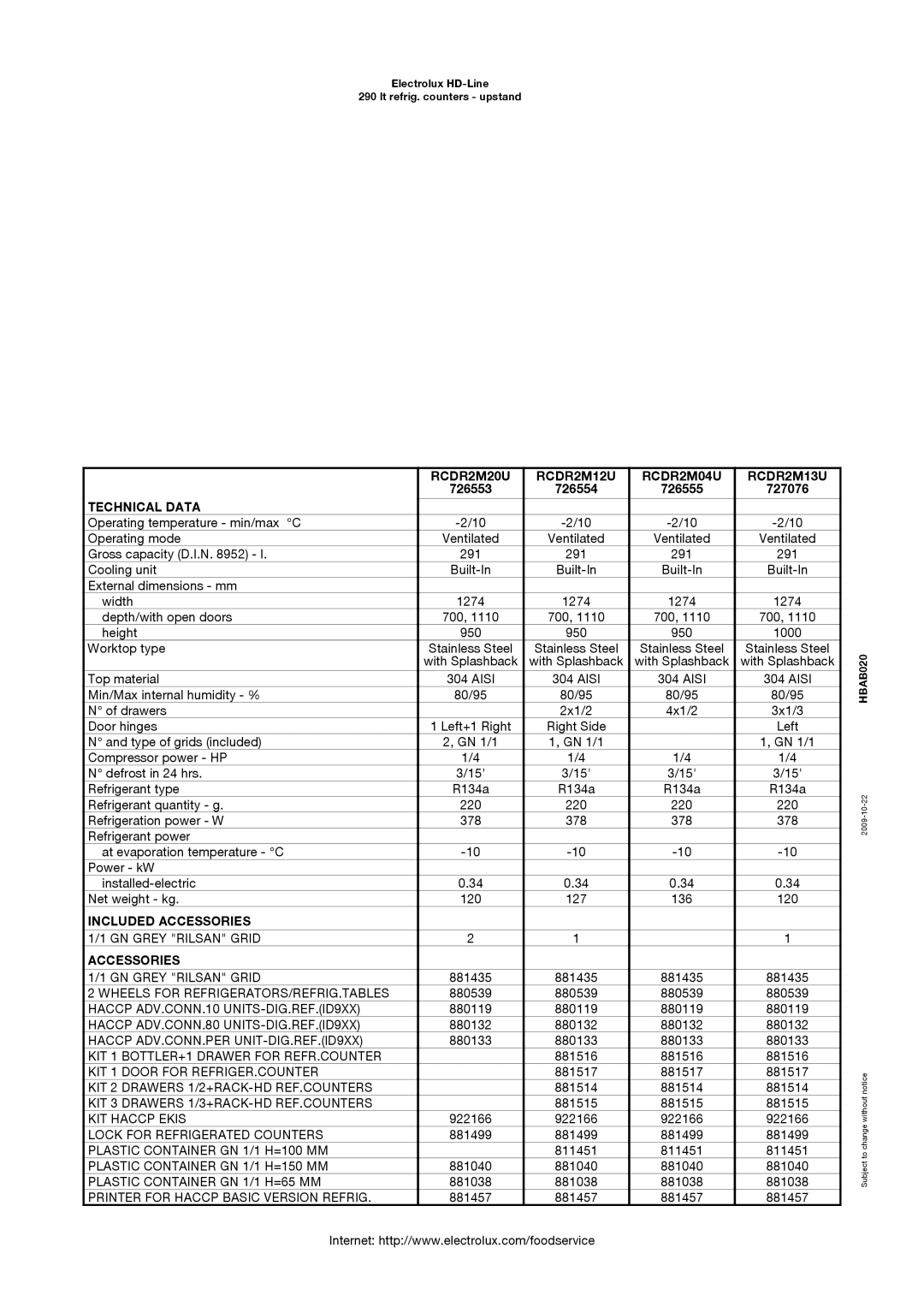

TECHNICAL DATA
Operating temperature - min/max °C	-2/10	-2/10	-2/10	-2/10
Operating mode	Ventilated	Ventilated	Ventilated	Ventilated
Gross capacity (D.I.N. 8952) - l.	291	291	291	291
Cooling unit	Built-In	Built-In	Built-In	Built-In
External dimensions - mm
width	1274	1274	1274	1274
depth/with open doors	700, 1110	700, 1110	700, 1110	700, 1110
height	950	950	950	1000
Worktop type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	HBAB020
Min/Max internal humidity - %	80/95	80/95	80/95	80/95
	with Splashback	with Splashback	with Splashback	with Splashback
Top material	304 AISI	304 AISI	304 AISI	304 AISI
N° of drawers		2x1/2	4x1/2	3x1/3
Door hinges	1 Left+1 Right	Right Side		Left
N° and type of grids (included)	2, GN 1/1	1, GN 1/1		1, GN 1/1
Compressor power - HP	1/4	1/4	1/4	1/4
N° defrost in 24 hrs.	3/15'	3/15'	3/15'	3/15'
Refrigerant type	R134a	R134a	R134a	R134a	-22
Refrigerant quantity - g.	220	220	220	220
					-10
Refrigeration power - W	378	378	378	378
					2009
Refrigerant power
at evaporation temperature - °C	-10	-10	-10	-10
Power - kW
installed-electric	0.34	0.34	0.34	0.34
Net weight - kg.	120	127	136	120
INCLUDED ACCESSORIES
1/1 GN GREY "RILSAN" GRID	2	1		1
ACCESSORIES
1/1 GN GREY "RILSAN" GRID	881435	881435	881435	881435
2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES	880539	880539	880539	880539
HACCP ADV.CONN.10 UNITS-DIG.REF.(ID9XX)	880119	880119	880119	880119
HACCP ADV.CONN.80 UNITS-DIG.REF.(ID9XX)	880132	880132	880132	880132
HACCP ADV.CONN.PER UNIT-DIG.REF.(ID9XX)	880133	880133	880133	880133
KIT 1 BOTTLER+1 DRAWER FOR REFR.COUNTER		881516	881516	881516
KIT 1 DOOR FOR REFRIGER.COUNTER		881517	881517	881517	notice
KIT 2 DRAWERS 1/2+RACK-HD REF.COUNTERS		881514	881514	881514
KIT 3 DRAWERS 1/3+RACK-HD REF.COUNTERS		881515	881515	881515	without
KIT HACCP EKIS	922166	922166	922166	922166	to change
LOCK FOR REFRIGERATED COUNTERS	881499	881499	881499	881499
PLASTIC CONTAINER GN 1/1 H=100 MM		811451	811451	811451
PLASTIC CONTAINER GN 1/1 H=150 MM	881040	881040	881040	881040	Subject
PLASTIC CONTAINER GN 1/1 H=65 MM	881038	881038	881038	881038
PRINTER FOR HACCP BASIC VERSION REFRIG.	881457	881457	881457	881457

Internet: http://www.electrolux.com/foodservice
