	Lustertone® with Quick-Clip®
®	Double Ledge Model DRKRQ Series

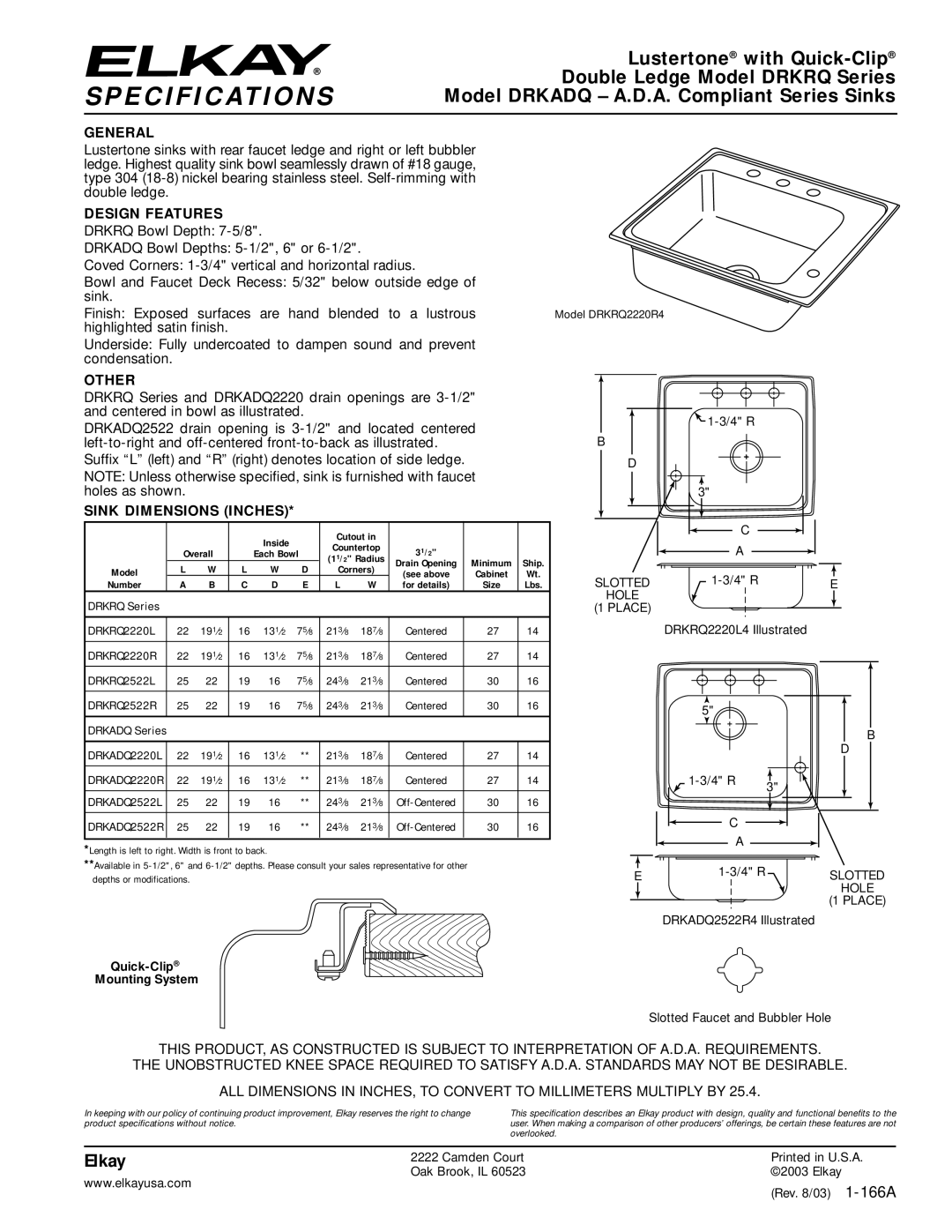

SPECIFICATIONS
	Model DRKADQ – A.D.A. Compliant Series Sinks

GENERAL

Lustertone sinks with rear faucet ledge and right or left bubbler ledge. Highest quality sink bowl seamlessly drawn of #18 gauge, type 304 (18-8) nickel bearing stainless steel. Self-rimming with double ledge.

DESIGN FEATURES

DRKRQ Bowl Depth: 7-5/8".

DRKADQ Bowl Depths: 5-1/2", 6" or 6-1/2".

Coved Corners: 1-3/4" vertical and horizontal radius.

Bowl and Faucet Deck Recess: 5/32" below outside edge of sink.

Finish: Exposed surfaces are hand blended to a lustrous highlighted satin finish.

Underside: Fully undercoated to dampen sound and prevent condensation.

OTHER

DRKRQ Series and DRKADQ2220 drain openings are 3-1/2" and centered in bowl as illustrated.

DRKADQ2522 drain opening is 3-1/2" and located centered left-to-right and off-centered front-to-back as illustrated.

Suffix “L” (left) and “R” (right) denotes location of side ledge.

NOTE: Unless otherwise specified, sink is furnished with faucet holes as shown.

SINK DIMENSIONS (INCHES)*

Inside

Cutout in

Countertop

3

1

/2"

Overall

Each Bowl

(11/2" Radius

Model

L

W

L

W

D

Corners)

Drain Opening

Minimum

Ship.

(see above

Cabinet

Wt.

Number

A

B

C

D

E

L

W

for details)

Size

Lbs.

DRKRQ Series

DRKRQ2220L

22

191⁄2

16

131⁄2 75⁄8

213⁄8 187⁄8

Centered

27

14

DRKRQ2220R

22

191⁄2

16

131⁄2 75⁄8

213⁄8 187⁄8

Centered

27

14

DRKRQ2522L

25

22

19

16

75⁄8

243⁄8 213⁄8

Centered

30

16

DRKRQ2522R

25

22

19

16

75⁄8

243⁄8

213⁄8

Centered

30

16

DRKADQ Series

DRKADQ2220L

22

191⁄2

16

131⁄2 **

213⁄8 187⁄8

Centered

27

14

DRKADQ2220R

22

191⁄2

16

131⁄2 **

213⁄8 187⁄8

Centered

27

14

DRKADQ2522L

25

22

19

16

**

243⁄8 213⁄8

Off-Centered

30

16

DRKADQ2522R

25

22

19

16

**

243⁄8

213⁄8

Off-Centered

30

16

*Length is left to right. Width is front to back.

**Available in 5-1/2", 6" and 6-1/2" depths. Please consult your sales representative for other depths or modifications.

Quick-Clip®

Mounting System

Model DRKRQ2220R4

	1-3/4" R
B
D
	3"
	C
	A
SLOTTED	1-3/4" R	E
HOLE
(1 PLACE)
	DRKRQ2220L4 Illustrated

	5"
			B
			D
	1-3/4" R	3"
	C
	A
E	1-3/4" R		SLOTTED
			HOLE
			(1 PLACE)
	DRKADQ2522R4 Illustrated

Slotted Faucet and Bubbler Hole

THIS PRODUCT, AS CONSTRUCTED IS SUBJECT TO INTERPRETATION OF A.D.A. REQUIREMENTS.

THE UNOBSTRUCTED KNEE SPACE REQUIRED TO SATISFY A.D.A. STANDARDS MAY NOT BE DESIRABLE.

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
