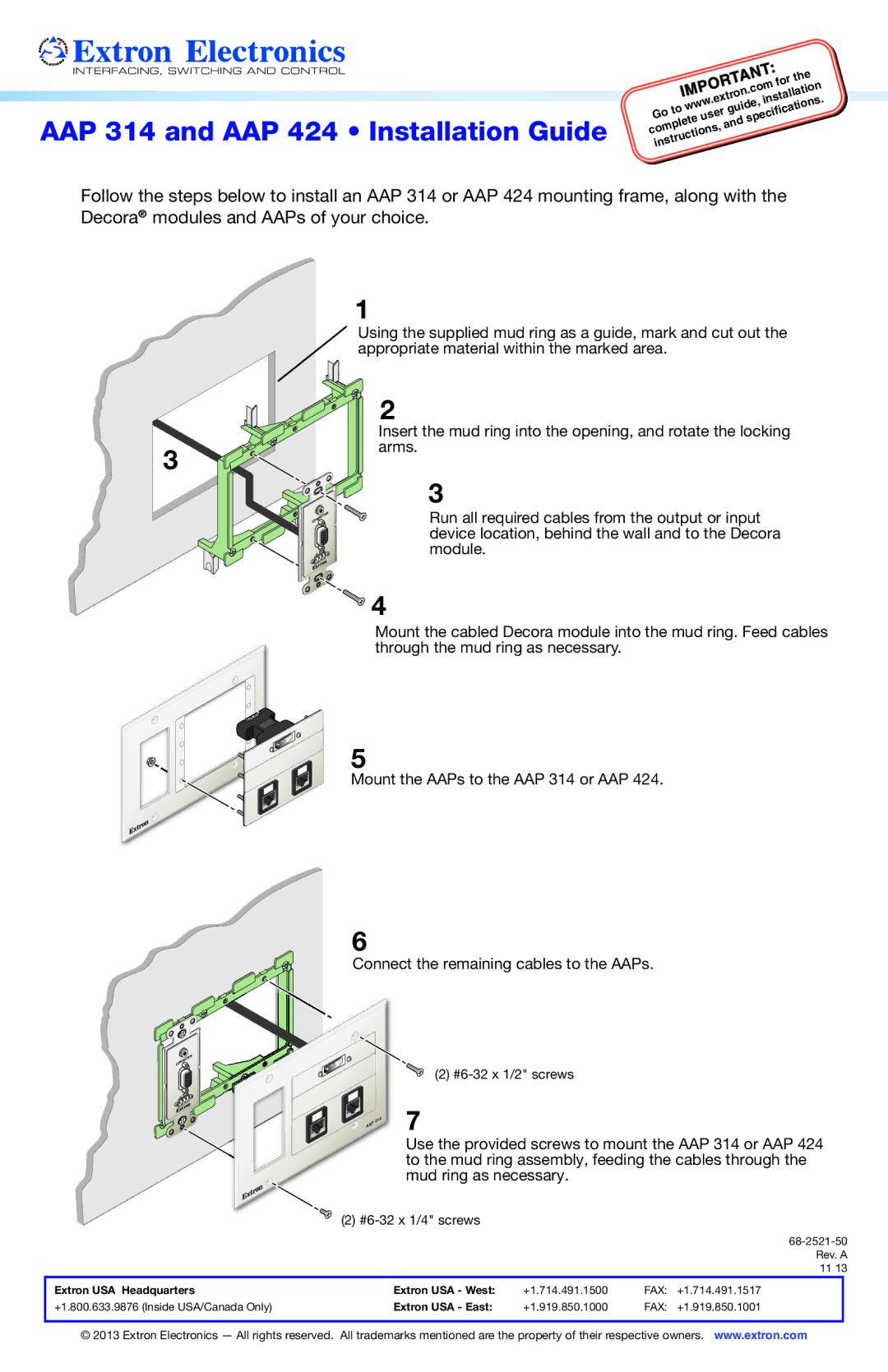

AAP 314 and AAP 424 • Installation Guide

							:
					TANT			rthe
						.com		fo
	IMPORon						,installation
			.e
	to	www		xtr				.
Go						specifications
			user
					guide
complete					and
instructions,

Follow the steps below to install an AAP 314 or AAP 424 mounting frame, along with the Decora® modules and AAPs of your choice.

1

Using the supplied mud ring as a guide, mark and cut out the appropriate material within the marked area.

3

CO	MPUTER
		B	C
A

2

Insert the mud ring into the opening, and rotate the locking arms.

3

Run all required cables from the output or input device location, behind the wall and to the Decora module.

4

314

AAP

	PU	TER
COM
	B	C
A

Mount the cabled Decora module into the mud ring. Feed cables through the mud ring as necessary.

5

Mount the AAPs to the AAP 314 or AAP 424.

6

Connect the remaining cables to the AAPs.

(2) #6-32 x 1/2" screws

	31	4	7
AAP

Use the provided screws to mount the AAP 314 or AAP 424 to the mud ring assembly, feeding the cables through the mud ring as necessary.

(2) #6-32x 1/4" screws

68-2521-50 Rev. A 11 13
