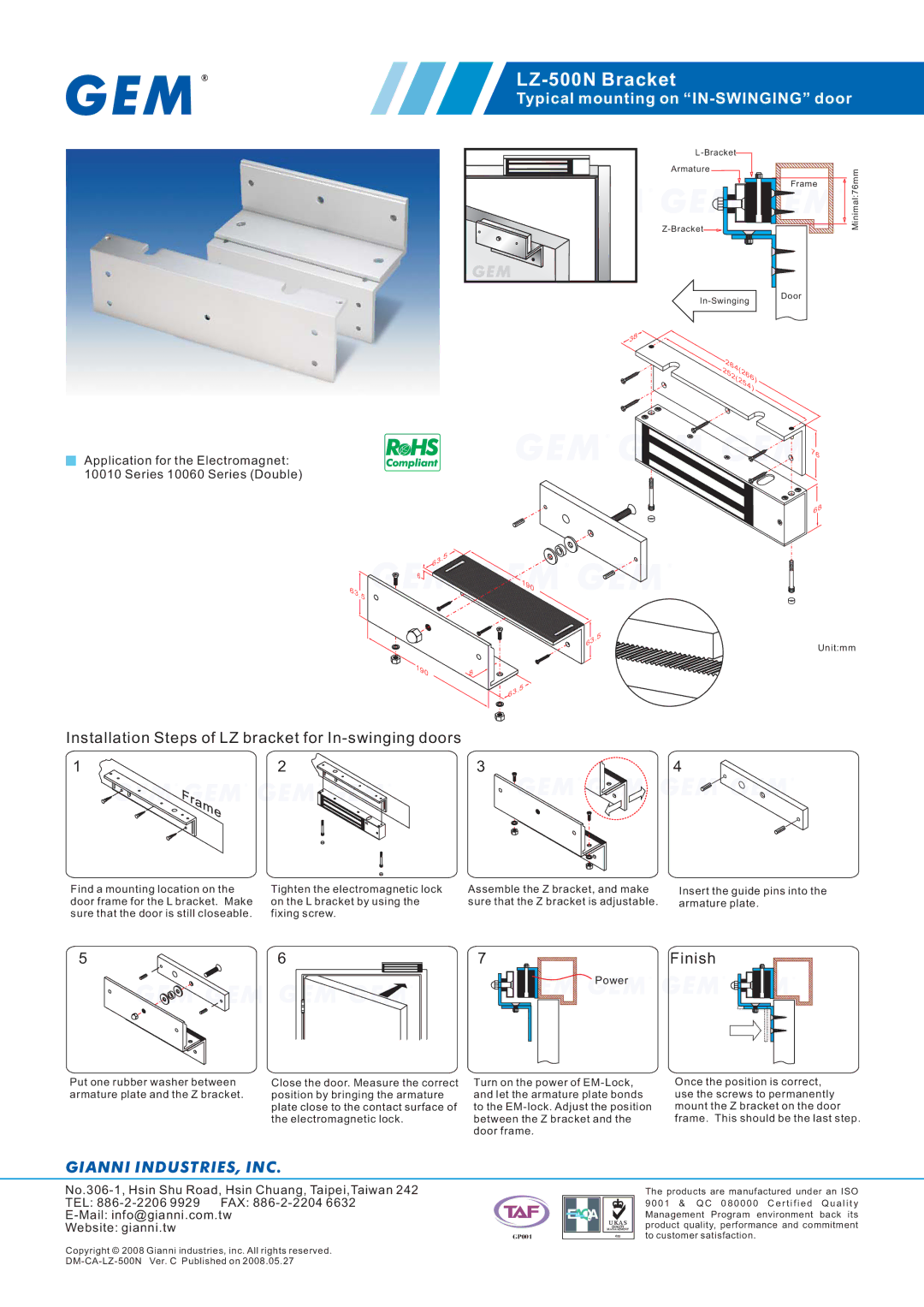

Gianni Industries GP001 manual LZ-500N Bracket, Typical mounting on IN-SWINGING door, Finish

LZ-500N Bracket

Typical mounting on “IN-SWINGING” door

L-Bracket
Armature		Minimal:76mm
	Frame
Z-Bracket
In-Swinging	Door
38

264(266) 252(254)

Application for the Electromagnet: 10010 Series 10060 Series (Double)

63.5

.5 63

6

190 8

190

.5 63

.5 63

Installation Steps of LZ bracket for In-swinging doors

1 2 3

4

76

68

Unit:mm

Find a mounting location on the door frame for the L bracket. Make sure that the door is still closeable.

Tighten the electromagnetic lock on the L bracket by using the fixing screw.

Assemble the Z bracket, and make sure that the Z bracket is adjustable.

Insert the guide pins into the armature plate.

5

6

7	Finish
	Power

Put one rubber washer between armature plate and the Z bracket.

Close the door. Measure the correct position by bringing the armature plate close to the contact surface of the electromagnetic lock.

Turn on the power of EM-Lock, and let the armature plate bonds to the EM-lock. Adjust the position between the Z bracket and the door frame.

Once the position is correct, use the screws to permanently mount the Z bracket on the door frame. This should be the last step.

GIANNI INDUSTRIES, INC.

No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242

TEL: 886-2-2206 9929 FAX: 886-2-2204 6632

E-Mail: info@gianni.com.tw

Website: gianni.tw

GP001

The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.

Copyright © 2008 Gianni industries, inc. All rights reserved. DM-CA-LZ-500N Ver. C Published on 2008.05.27
