Model HDS-200/300

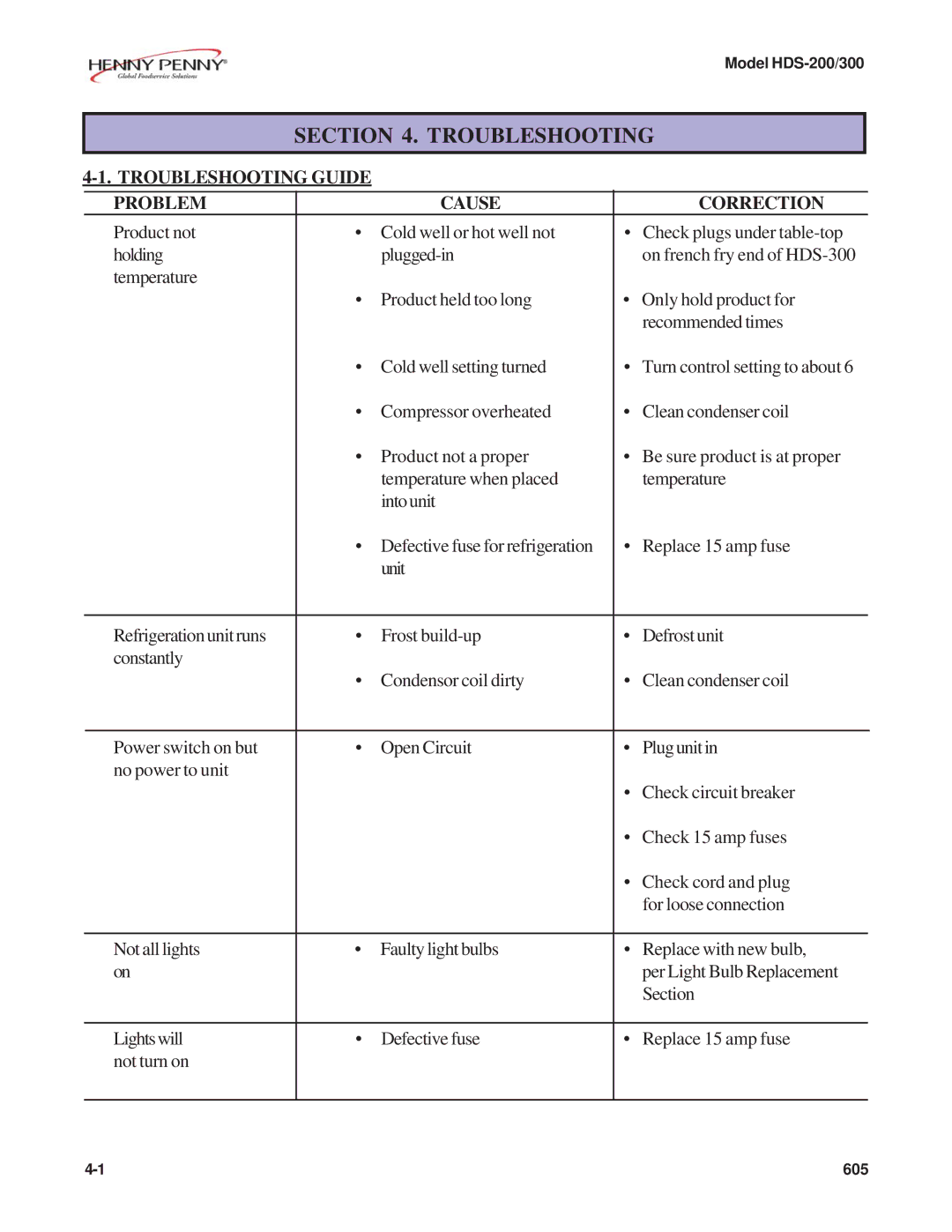

SECTION 4. TROUBLESHOOTING





4-1. TROUBLESHOOTING GUIDE













PROBLEM



CAUSE



CORRECTION





Product not

Cold well or hot well not

Check plugs under table-top



holding



plugged-in



on french fry end of HDS-300



temperature

Product held too long

Only hold product for















recommended times





Cold well setting turned

Turn control setting to about 6





Compressor overheated

Clean condenser coil





Product not a proper

Be sure product is at proper







temperature when placed



temperature







intounit













Defective fuse for refrigeration

Replace 15 amp fuse







unit



























Refrigeration unit runs

Frost build-up

Defrost unit



constantly

Condensor coil dirty

Clean condenser coil



















Power switch on but

Open Circuit

Plugunitin



no power to unit





Check circuit breaker

















• Check 15 amp fuses









• Check cord and plug











for loose connection



















Not all lights

Faulty light bulbs

Replace with new bulb,



on







per Light Bulb Replacement











Section



















Lightswill

Defective fuse

Replace 15 amp fuse



not turn on





























4-1
