Removal and Replacement Procedures
2.Position the tablet PC with the front toward you.

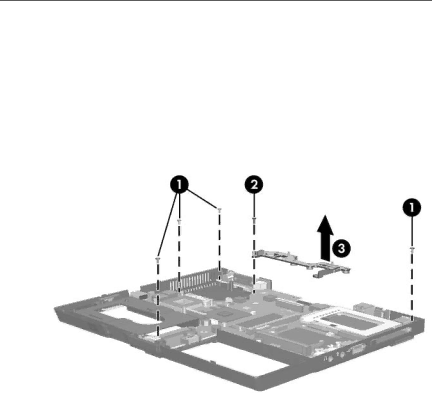

3.Remove the four T8M2.0×5.0 screws 1 that secure the system board to the tablet PC.
4.Remove the T8M2.0×7.5 screw 2 that secures the system board spacer to the tablet PC.
5.Remove the system board spacer 3.
Removing the System Board Screws
