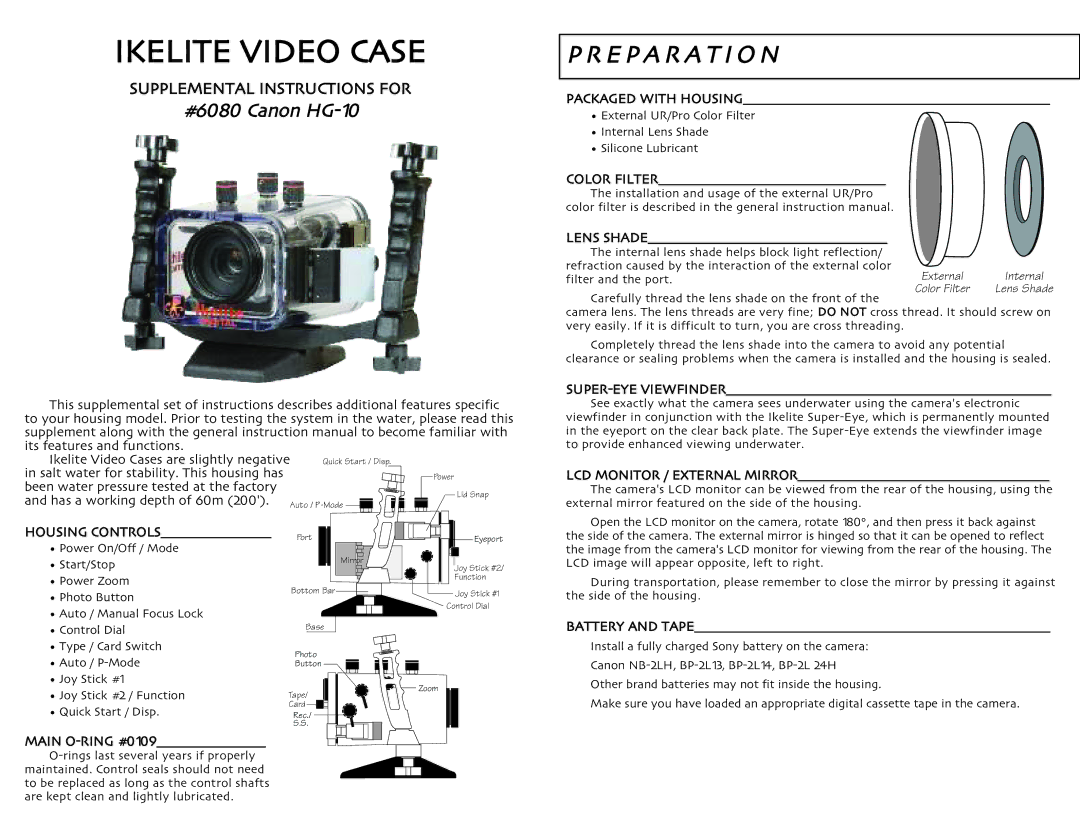

IKELITE VIDEO CASE

SUPPLEMENTAL INSTRUCTIONS FOR

#6080 Canon HG-10

Thissupplementalsetofinstructionsdescribesadditionalfeaturesspecific

toyourhousingmodel.Priortotestingthesysteminthewater,pleasereadthis

supplementalongwiththegeneralinstructionmanualtobecomefamiliarwith

itsfeaturesandfunctions.







IkeliteVideoCasesareslightlynegative

Quick Start / Disp.



insaltwaterforstability.Thishousinghas





Power

beenwaterpressuretestedatthefactory





Lid Snap

andhasaworkingdepthof60m(200').

Auto / P-Mode



HOUSING CONTROLS__________________

Port



Eyeport

• Power On/Off / Mode







• Start/Stop



Mirror

Joy Stick #2/





• Power Zoom





Function

Bottom Bar

Joy Stick #1

• Photo Button









Control Dial

• Auto / Manual Focus Lock







• Control Dial

Base



• Type / Card Switch






• Auto / P-Mode

Button





• Joy Stick #1

Tape/



Zoom

• Joy Stick #2/ Function





Card





• Quick Start / Disp.

Rec./





MAIN O-RING #0109________________

S.S.











O-rings last several years if properly







maintained. Contr ol seals sh ould not need







to be replac ed as long as the control shafts







are kept clean and ligh tly lubricated .







P R E P A R A T IO N





PACKAGED WITH HOUSING__________________________________________________

• External UR/Pro Color Filter





• Internal Lens Shade





• Silicone Lubricant





COLOR FILTER_____________________________________





The installation and usage of the external UR/Pro





color filter is described in the general instruction manual.





LENS SHADE_______________________________________





The internal lens shade helps block light reflection/





refraction caused by the interaction of the external color





filter and the port.

External

Internal

Carefully thread the lens shade on the front of the

Color Filter

Lens Shade

camera lens. The lens threads are very fine; DO NOT cross thread. It should screw on very easily. If it is difficult to turn, you are cross threading.

Completely thread the lens shade into the camera to avoid any potential clearance or sealing problems when the camera is installed and the housing is s ealed.

SUPER-EYE VIEWFINDER_____________________________________________________

See exactly what the camera sees underwater using the camera's electronic viewfinder in conjunction with the Ikelite Super-Eye, which is permanently mounted in the eyeport on the clear back plate. The Super-Eye extends the viewfinder image to provide enhanced viewing underwater.

LCD MONITOR / EXTERNAL MIRROR_________________________________________

The camera's LCD monitor can be viewed from the rear of t he housing, using the external mirror featured on the side of the housing.

Open the LCD monitor on the camera, rotate 180°,and then press it back against the side of the camera. The external mirror is hinged so that it can be opened to reflect the image from the camera's LCD monitor for viewing from the rear of the housing. The LCD image will appear opposite, left to r ight.

During transportation, please remember to close the mirror by pressing it ag ainst the side of the housing.

BATTERY AND TAPE__________________________________________________________

Install a fully charged Sony battery on the camera:

Canon NB-2LH, BP-2L13, BP-2L14, BP-2L 24H

Other brand batteries may not fit inside the housing.

Make sure you have loaded an appropriate digital cassette tape in the camera.

Page 1
