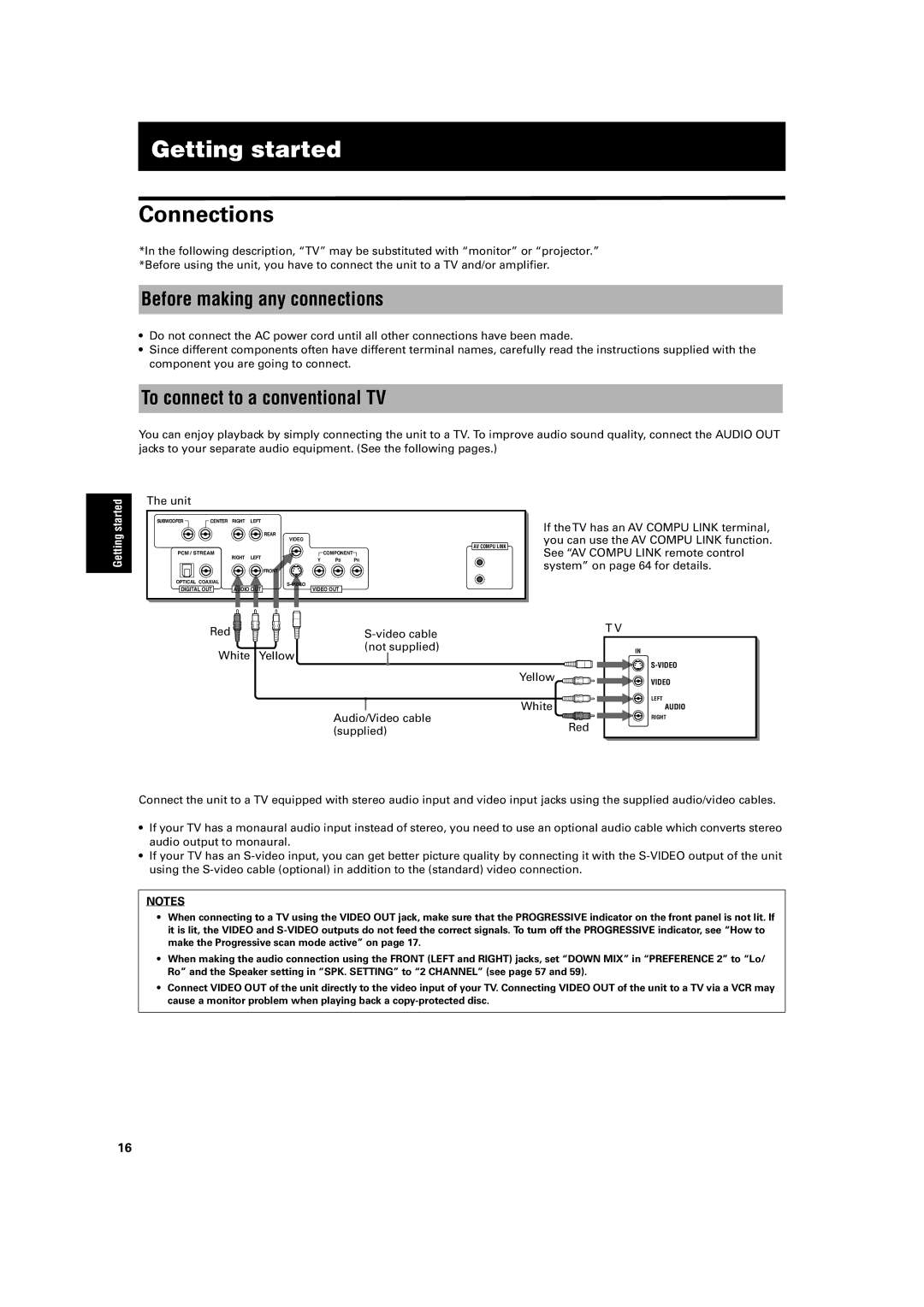

Getting started
18
Getting started
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
Connect the unit's AUDIO OUT (FRONT LEFT/RIGHT) to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio
amplifier or receiver.
NOTES
Connect “Y” to “Y”, “PB” to “PB, “PR” to “PR” correctly.
When the component video input jacks of the TV is of the BNC type, use an adapter to convert a pin jack to a BNC jack
(optional).
Make the “DOWN MIX” setting in “PREFERENCE 2” to “Lo/Ro” and the Speaker setting in “SPK. SETTING” to “2 CHANNEL”
(see pages 57 and 59).
When the Progressive scan mode is selected, the VIDEO and S-VIDEO outputs do not feed the correct signals.
About SCAN MODE
To display video on the monitor (television) screen, the conventional scanning method is called “Interlaced scan.
With this method, only half of the horizontal lines are displayed at a time. So two fields complete a single picture
(frame); i.e., the first f ield, containing all the odd-n umbered lines, is displayed foll owed by the second field, contai ning
all the even-numbered lines.
On the other hand, the Progressive scan system scans all horizontal lines at a time, so you can double the number of
pictures compared with the interlaced scan, resulting flicker-free, high-density picture.
To enjoy the progressive scanned video, a monitor (or TV or projector) to be connected to the unit must have the
Progressive inputs.
Depending on the material source format, DVD VIDEO discs can be classified into two types; film source and video
source (Note that some DVD VIDEO discs contain both film source and video source). Film sources are recorded as 24-
frame-per-second information, while (NTSC) video sources are recorded as 30-frame-per-second (60-field-per-second
interlaced) information.
When the unit plays back a film source material, uninterlaced progressive output signals are created using the original
information. When a video source material is played back, the unit interleaves lines between the interlaced lines on
each to create the pseudo uninterlaced picture and outputs as the progressive signal.
To connect to an audio amplifier or receiver
NOTE
When using the unit with a stereo amplifier or receiver, make the “DOWN MIX” setting in “PREFERENCE 2” to “Lo/Ro” and the
Speaker etting in “SPK. SETTING” to “2 CHANNEL” (see pages 57 and 59).
Audio cable
(supplied)
White
Red
White
Red Amplifier or receiver
AV COMPU LINK
VIDEO OUTDIGITAL OUT
RIGHT
COMPONENT
S-VIDEO
YP
B
P
R
PCM / STREAM
COAXIALOPTICAL
LEFT
VIDEO
The unit
FRONT
REAR
RIGHT LEFTSUBWOOFER
CENTER
AUDIO OUT
AUDIO
RIGHT
LEFT
IN

