48
Chapter 7

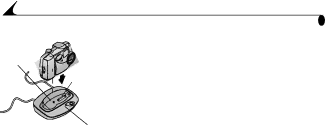

3Place the camera in the Camera Dock;
insert the locator pin into the camera tripod
socket and push down to seat the
connector.
The Camera Dock light glows green
when the connectors are properly
seated. The camera is now powered by
the Camera Dock instead of the camera
batteries.
NOTE: If the Battery Pack in the camera requires charging, the Camera Dock
light turns red after a few seconds and charging begins.
Charging the Battery Pack
The batteries in the Battery Pack are not charged when you receive it.
1Turn off the camera.
2Make sure the Battery Pack is installed in the camera.
3Place the camera in the Camera Dock (see page 47).
mCharging begins after a few seconds.
mThe Camera Dock light glows red while charging, then glows green
when the Battery Pack is fully charged.
mFull charging takes about 2.5 hours. After the Battery Pack is fully
charged, leave the camera in the Camera Dock. It continually senses
battery power and resumes charging whenever necessary. Under these
conditions, there is no red light while charging.
mCharging stops if you turn on the camera. If the camera is left in the
Camera Dock with the power on, charging resumes when the camera
enters Deep Sleep mode (see page 6).
NOTE: The Camera Dock only charges the provided Battery Pack. If you place
the camera in the Camera Dock with any other type of batteries,
rechargable or not, no charging takes place.
Light
Connector
Locator
pin
