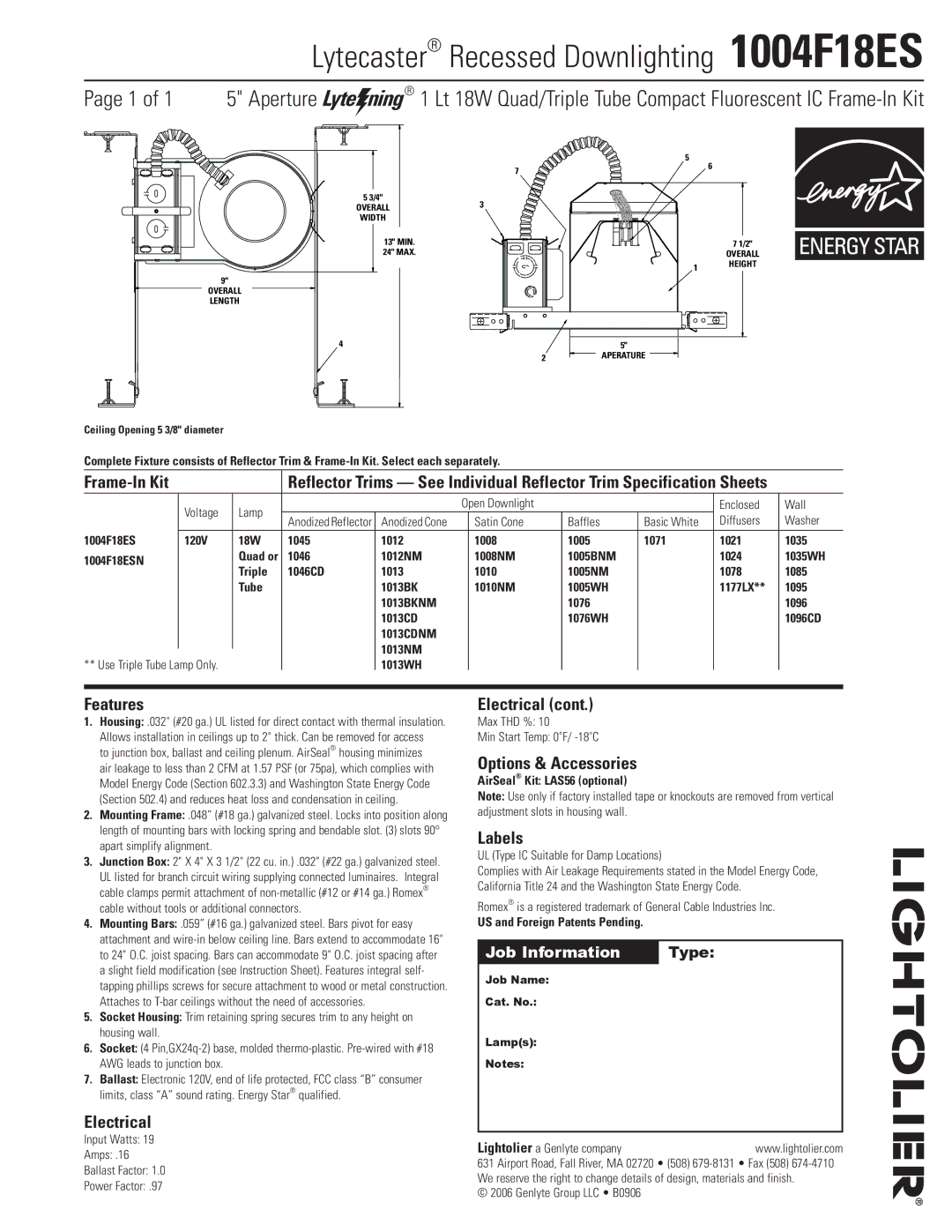

Lightolier specifications Lytecaster Recessed Downlighting 1004F18ES, Features, Electrical

Lytecaster® Recessed Downlighting  1004F18ES

Page 1 of 1 5" Aperture 0® 1 Lt 18W Quad/Triple Tube Compact Fluorescent IC Frame-In Kit

7

5 3/4"

OVERALL3 WIDTH

13" MIN. 24" MAX.

9"

OVERALL

LENGTH

4 2

5

6

7 1/2"

OVERALL

1 HEIGHT

5"

APERATURE

Ceiling Opening 5 3/8" diameter

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit			Reflector Trims — See Individual Reflector Trim Specification Sheets
	Voltage	Lamp			Open Downlight				Enclosed	Wall
			Anodized Reflector	Anodized Cone		Satin Cone	Baffles	Basic White	Diffusers	Washer
1004F18ES	120V	18W	1045	1012		1008	1005	1071	1021	1035
1004F18ESN		Quad or	1046	1012NM		1008NM	1005BNM		1024	1035WH
		Triple	1046CD	1013		1010	1005NM		1078	1085
		Tube		1013BK		1010NM	1005WH		1177LX**	1095
				1013BKNM			1076			1096
				1013CD			1076WH			1096CD
				1013CDNM
				1013NM
** Use Triple Tube Lamp Only.				1013WH

Features

1.Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.

Allows installation in ceilings up to 2" thick. Can be removed for access to junction box, ballast and ceiling plenum. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and Washington State Energy Code (Section 502.4) and reduces heat loss and condensation in ceiling.

2.Mounting Frame: .048” (#18 ga.) galvanized steel. Locks into position along length of mounting bars with locking spring and bendable slot. (3) slots 90° apart simplify alignment.

3.Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.

UL listed for branch circuit wiring supplying connected luminaires. Integral cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex® cable without tools or additional connectors.

4.Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy attachment and wire-in below ceiling line. Bars extend to accommodate 16" to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing after a slight field modification (see Instruction Sheet). Features integral self- tapping phillips screws for secure attachment to wood or metal construction. Attaches to T-bar ceilings without the need of accessories.

5.Socket Housing: Trim retaining spring secures trim to any height on housing wall.

6.Socket: (4 Pin,GX24q-2) base, molded thermo-plastic. Pre-wired with #18 AWG leads to junction box.

7.Ballast: Electronic 120V, end of life protected, FCC class “B” consumer limits, class “A” sound rating. Energy Star® qualified.

Electrical

Input Watts: 19

Amps: .16

Ballast Factor: 1.0

Power Factor: .97

Electrical (cont.)

Max THD %: 10

Min Start Temp: 0˚F/ -18˚C

Options & Accessories

AirSeal® Kit: LAS56 (optional)

Note: Use only if factory installed tape or knockouts are removed from vertical adjustment slots in housing wall.

Labels

UL (Type IC Suitable for Damp Locations)

Complies with Air Leakage Requirements stated in the Model Energy Code, California Title 24 and the Washington State Energy Code.

Romex® is a registered trademark of General Cable Industries Inc.

US and Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
