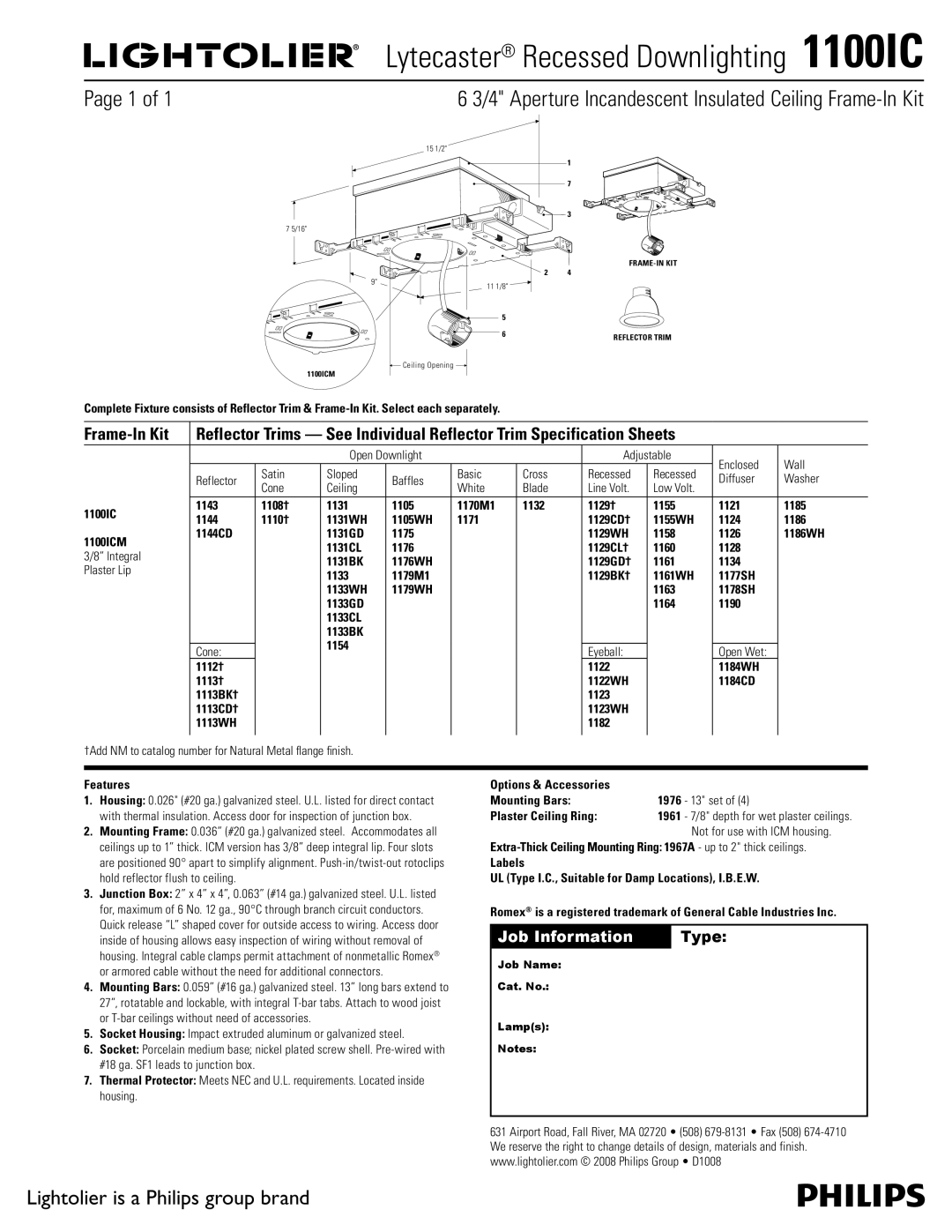

Lytecaster® Recessed Downlighting  1100IC































































































































































Page 1 of 1































6 3/4" Aperture Incandescent Insulated Ceiling Frame-In Kit

15 1/2"





1





7





3

7 5/16"









FRAME-IN KIT



2

4

9"

11 1/8"







5



6

REFLECTOR TRIM



Ceiling Opening

1100ICM

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit

Reflector Trims — See Individual Reflector Trim Specification Sheets











Open Downlight





Adjustable

Enclosed

Wall





Satin

Sloped



Basic

Cross

Recessed

Recessed



Reflector

Baffles

Diffuser

Washer



Cone

Ceiling

White

Blade

Line Volt.

Low Volt.

































1100IC

1143

1108†

1131

1105

1170M1

1132

1129†

1155

1121

1185

1144

1110†

1131WH

1105WH

1171



1129CD†

1155WH

1124

1186





1100ICM

1144CD



1131GD

1175





1129WH

1158

1126

1186WH





1131CL

1176





1129CL†

1160

1128



3/8” Integral















1131BK

1176WH





1129GD†

1161

1134



Plaster Lip















1133

1179M1





1129BK†

1161WH

1177SH





















1133WH

1179WH







1163

1178SH









1133GD









1164

1190









1133CL





















1133BK





















1154

















Cone:









Eyeball:



Open Wet:





















1112†











1122



1184WH





1113†











1122WH



1184CD





1113BK†











1123









1113CD†











1123WH









1113WH











1182





























†Add NM to catalog number for Natural Metal flange finish.

Features

1.Housing: 0.026" (#20 ga.) galvanized steel. U.L. listed for direct contact with thermal insulation. Access door for inspection of junction box.

2.Mounting Frame: 0.036” (#20 ga.) galvanized steel. Accommodates all ceilings up to 1” thick. ICM version has 3/8” deep integral lip. Four slots are positioned 90° apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.

3.Junction Box: 2” x 4” x 4”, 0.063” (#14 ga.) galvanized steel. U.L. listed for, maximum of 6 No. 12 ga., 90°C through branch circuit conductors. Quick release “L” shaped cover for outside access to wiring. Access door inside of housing allows easy inspection of wiring without removal of housing. Integral cable clamps permit attachment of nonmetallic Romex® or armored cable without the need for additional connectors.

4.Mounting Bars: 0.059” (#16 ga.) galvanized steel. 13” long bars extend to 27”, rotatable and lockable, with integral T-bar tabs. Attach to wood joist or T-bar ceilings without need of accessories.

5.Socket Housing: Impact extruded aluminum or galvanized steel.

6.Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18 ga. SF1 leads to junction box.

7.Thermal Protector: Meets NEC and U.L. requirements. Located inside housing.

Options & Accessories



Mounting Bars:

1976 - 13" set of (4)

Plaster Ceiling Ring:

1961 - 7/8" depth for wet plaster ceilings.



Not for use with ICM housing.

Extra-Thick Ceiling Mounting Ring: 1967A - up to 2" thick ceilings.

Labels

UL (Type I.C., Suitable for Damp Locations), I.B.E.W.

Romex® is a registered trademark of General Cable Industries Inc.
