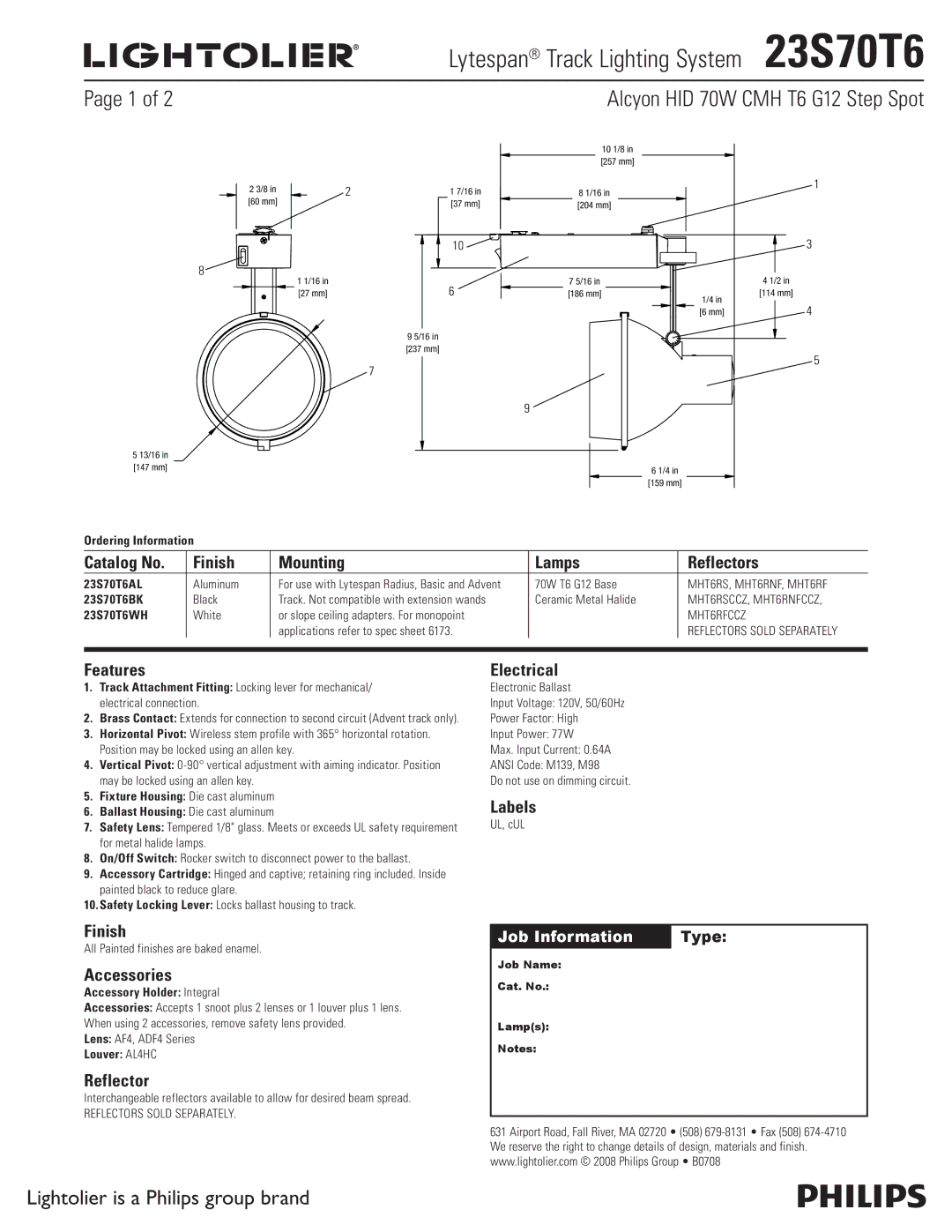

Lytespan® Track Lighting System  23S70T6

Page 1 of 2





Alcyon HID 70W CMH T6 G12 Step Spot







10 1/8 in











[257 mm]





2 3/8 in

2

1 7/16 in

8 1/16 in



1





[60 mm]



[37 mm]

[204 mm]









10





3

8

1 1/16 in



7 5/16 in



4 1/2 in



6





[27 mm]

[186 mm]

1/4 in

[114 mm]









4









[6 mm]

9 5/16 in

[237 mm]

7

5

9

5 13/16 in

[147 mm]6 1/4 in

[159 mm]

Ordering Information

Catalog No.

Finish

Mounting

Lamps

Reflectors

23S70T6AL

Aluminum

For use with Lytespan Radius, Basic and Advent

70W T6 G12 Base

MHT6RS, MHT6RNF, MHT6RF

23S70T6BK

Black

Track. Not compatible with extension wands

Ceramic Metal Halide

MHT6RSCCZ, MHT6RNFCCZ,

23S70T6WH

White

or slope ceiling adapters. For monopoint



MHT6RFCCZ





applications refer to spec sheet 6173.



REFLECTORS SOLD SEPARATELY











Features

1.Track Attachment Fitting: Locking lever for mechanical/ electrical connection.

2.Brass Contact: Extends for connection to second circuit (Advent track only).

3.Horizontal Pivot: Wireless stem profile with 365° horizontal rotation. Position may be locked using an allen key.

4.Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position may be locked using an allen key.

5.Fixture Housing: Die cast aluminum

6.Ballast Housing: Die cast aluminum

7.Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement for metal halide lamps.

8.On/Off Switch: Rocker switch to disconnect power to the ballast.

9.Accessory Cartridge: Hinged and captive; retaining ring included. Inside painted black to reduce glare.

10.Safety Locking Lever: Locks ballast housing to track.

Finish

All Painted finishes are baked enamel.

Accessories

Accessory Holder: Integral

Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.

When using 2 accessories, remove safety lens provided.

Lens: AF4, ADF4 Series

Louver: AL4HC

Reflector

Interchangeable reflectors available to allow for desired beam spread.

REFLECTORS SOLD SEPARATELY.

Lightolier is a Philips group brand

Electrical

Electronic Ballast

Input Voltage: 120V, 50/60Hz

Power Factor: High

Input Power: 77W

Max. Input Current: 0.64A

ANSI Code: M139, M98

Do not use on dimming circuit.

Labels

UL, cUL

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B0708
