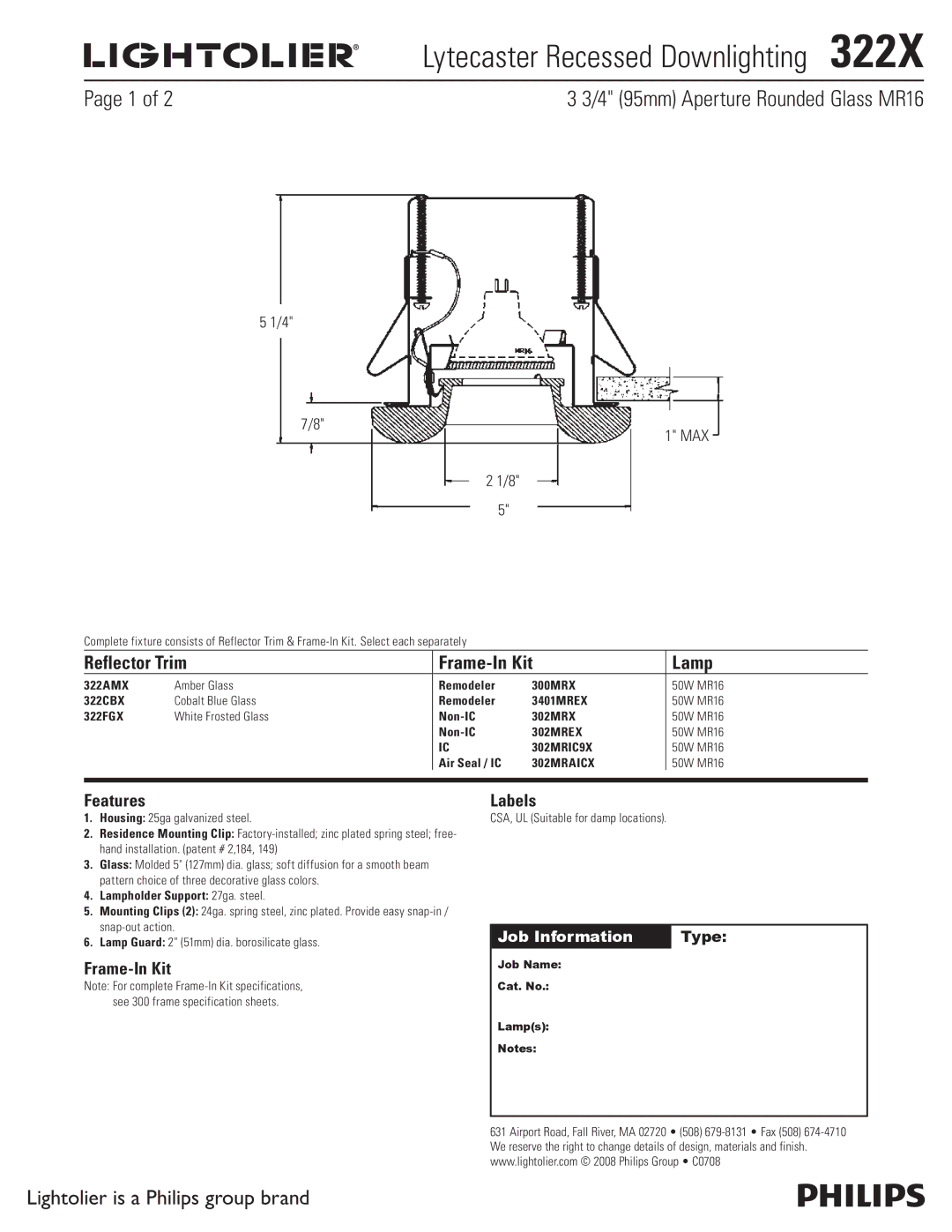

Lightolier specifications Lytecaster Recessed Downlighting322X, Page 1 of, Job Information

	Lytecaster Recessed Downlighting  322X
Page 1 of 2	3 3/4" (95mm) Aperture Rounded Glass MR16

5 1/4"

7/8"

1" MAX

21/8"

5"

Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately

Reflector Trim		Frame-In Kit		Lamp
322AMX	Amber Glass	Remodeler	300MRX	50W MR16
322CBX	Cobalt Blue Glass	Remodeler	3401MREX	50W MR16
322FGX	White Frosted Glass	Non-IC	302MRX	50W MR16
		Non-IC	302MREX	50W MR16
		IC	302MRIC9X	50W MR16
		Air Seal / IC	302MRAICX	50W MR16

Features

1.Housing: 25ga galvanized steel.

2.Residence Mounting Clip: Factory-installed; zinc plated spring steel; free- hand installation. (patent # 2,184, 149)

3.Glass: Molded 5" (127mm) dia. glass; soft diffusion for a smooth beam pattern choice of three decorative glass colors.

4.Lampholder Support: 27ga. steel.

5.Mounting Clips (2): 24ga. spring steel, zinc plated. Provide easy snap-in / snap-out action.

6.Lamp Guard: 2" (51mm) dia. borosilicate glass.

Frame-In Kit

Note: For complete Frame-In Kit specifications, see 300 frame specification sheets.

Lightolier is a Philips group brand

Labels

CSA, UL (Suitable for damp locations).

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • C0708
