Lightolier 8170WH specifications Page 1 of, Finishes, Mounting, Lamps, Features, Labels, Patents

Lytespan® Track Lighting System	8170WH
Page 1 of 2	MR16 Ring Magnetic
	8170WH
	8170BK

Ordering Information

Catalog No.	Finishes	Mounting	Lamps
8170WH	Matte White	All Lytespan Track Systems	20W-75W
8170BK	Matte Black		MR-16 12V

Features

1.Transformer Housing: Die-cast aluminum. Fitter twists onto track and locks on.

2.Lamp Holder: Die-form aluminum, .032”.

3.Bracket: .060” steel.

4.Trunion Mounting: Tensioned, provides 90° vertical adjustment.

5.Pivot Mounting: Tensioned; 90° horizontal adjustment each side.

6.Movable Brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track.

7.Polarity Key

8.Push Tab: Molded polycarbonate. Detaches unit.

9.Lamp Guard: Tempered glass.

Electrical/Dimming

Low voltage magnetic transformer designed to fit a compact die-cast housing scaled to complement the track. Two-pin base socket, pre-wired with sleeved No. 18 braided SF-1 leads. For dimming control, use only dimmers specially rated for inductive loads (low voltage fixtures equipped with magnetic transformers) such as Lightolier Lytemode and Scenist systems and Lightolier dimmers carrying the suffix VA.

Options & Accessory

2” Series Color Filters, Spread Lens, Beam Elongator, Louver (See Lightolier Specification Sheet 7472).

Finish

All painted finishes baked enamel.

Labels

UL; I.B.E.W.

Patents

U.S. Patent No. 3,496,518. Foreign patents granted.

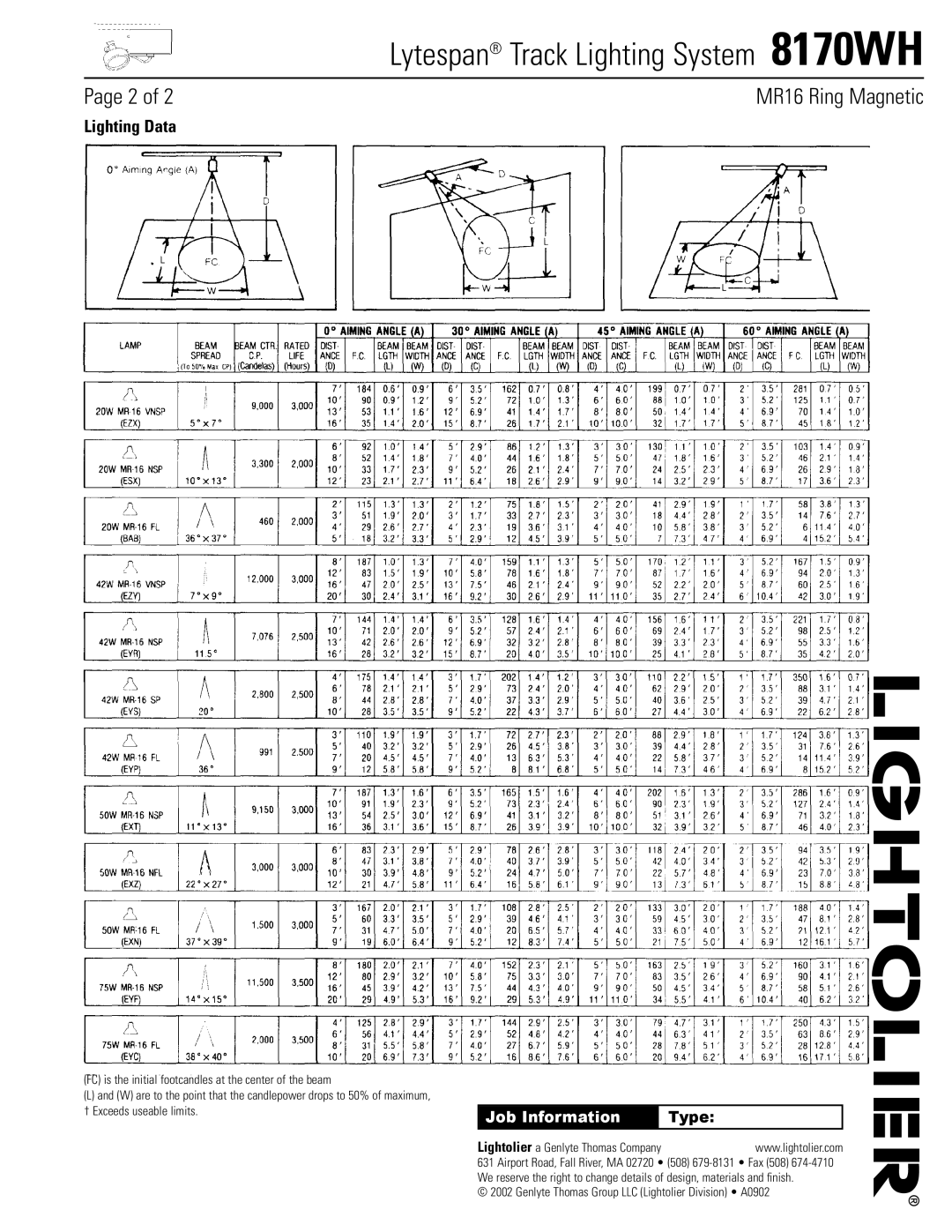

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
