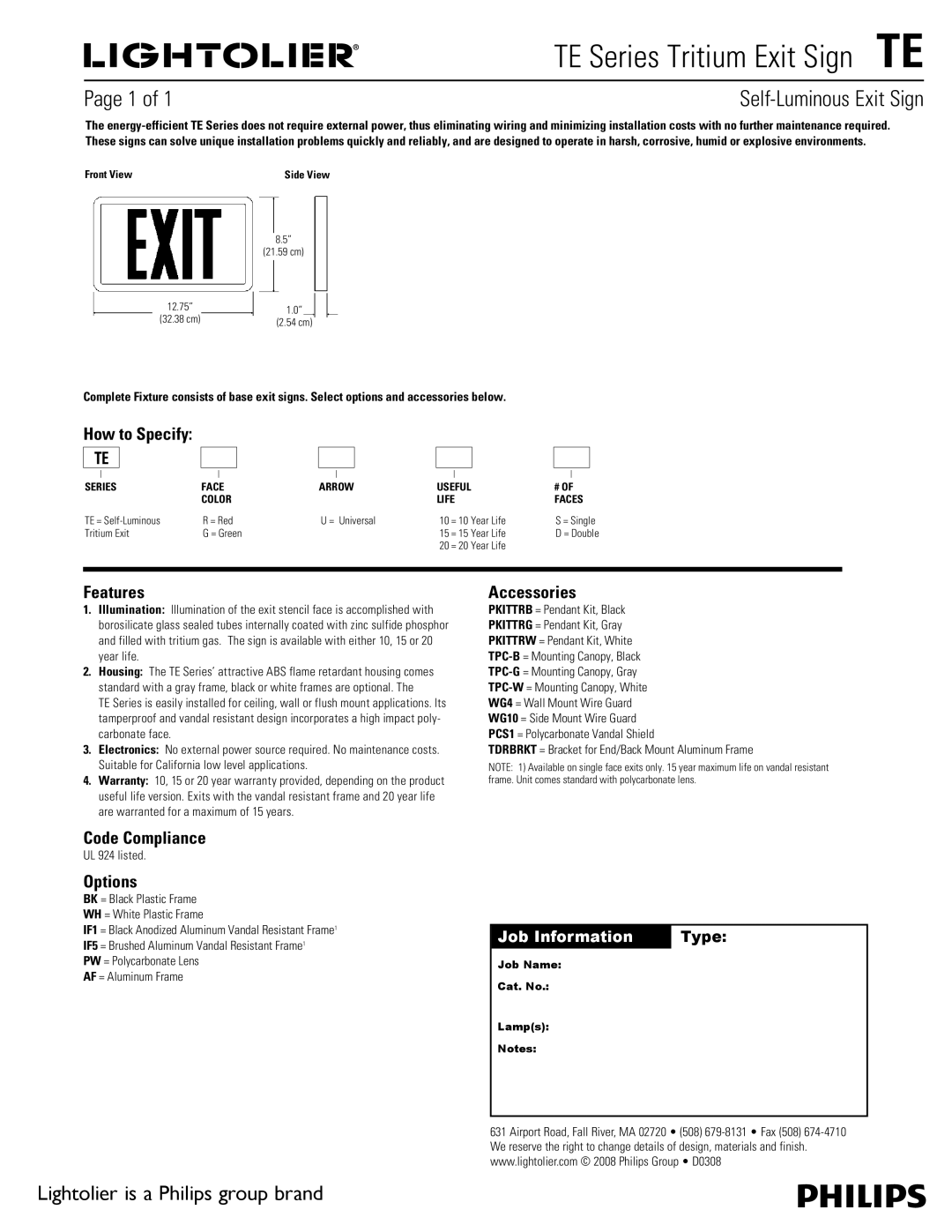

	TE Series Tritium Exit Sign  TE
Page 1 of 1	Self-Luminous Exit Sign

The energy-efficient TE Series does not require external power, thus eliminating wiring and minimizing installation costs with no further maintenance required. These signs can solve unique installation problems quickly and reliably, and are designed to operate in harsh, corrosive, humid or explosive environments.

Front View Side View

8.5”

(21.59 cm)

12.75”	1.0”
(32.38 cm)
	(2.54 cm)

Complete Fixture consists of base exit signs. Select options and accessories below.

How to Specify:

TE

SERIES	FACE	ARROW	USEFUL	# OF
	COLOR		LIFE	FACES
TE = Self-Luminous	R = Red	U = Universal	10 = 10 Year Life	S = Single
Tritium Exit	G = Green		15 = 15 Year Life	D = Double
			20 = 20 Year Life

Features

1.Illumination: Illumination of the exit stencil face is accomplished with borosilicate glass sealed tubes internally coated with zinc sulfide phosphor and filled with tritium gas. The sign is available with either 10, 15 or 20 year life.

2.Housing: The TE Series’ attractive ABS flame retardant housing comes standard with a gray frame, black or white frames are optional. The TE Series is easily installed for ceiling, wall or flush mount applications. Its tamperproof and vandal resistant design incorporates a high impact poly- carbonate face.

3.Electronics: No external power source required. No maintenance costs. Suitable for California low level applications.

4.Warranty: 10, 15 or 20 year warranty provided, depending on the product useful life version. Exits with the vandal resistant frame and 20 year life are warranted for a maximum of 15 years.

Accessories

PKITTRB = Pendant Kit, Black

PKITTRG = Pendant Kit, Gray

PKITTRW = Pendant Kit, White

TPC-B= Mounting Canopy, Black

TPC-G= Mounting Canopy, Gray

TPC-W= Mounting Canopy, White WG4 = Wall Mount Wire Guard WG10 = Side Mount Wire Guard PCS1 = Polycarbonate Vandal Shield

TDRBRKT = Bracket for End/Back Mount Aluminum Frame

NOTE: 1) Available on single face exits only. 15 year maximum life on vandal resistant frame. Unit comes standard with polycarbonate lens.

Code Compliance

UL 924 listed.

Options

BK = Black Plastic Frame

WH = White Plastic Frame

IF1 = Black Anodized Aluminum Vandal Resistant Frame1 IF5 = Brushed Aluminum Vandal Resistant Frame1

PW = Polycarbonate Lens AF = Aluminum Frame

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • D0308
