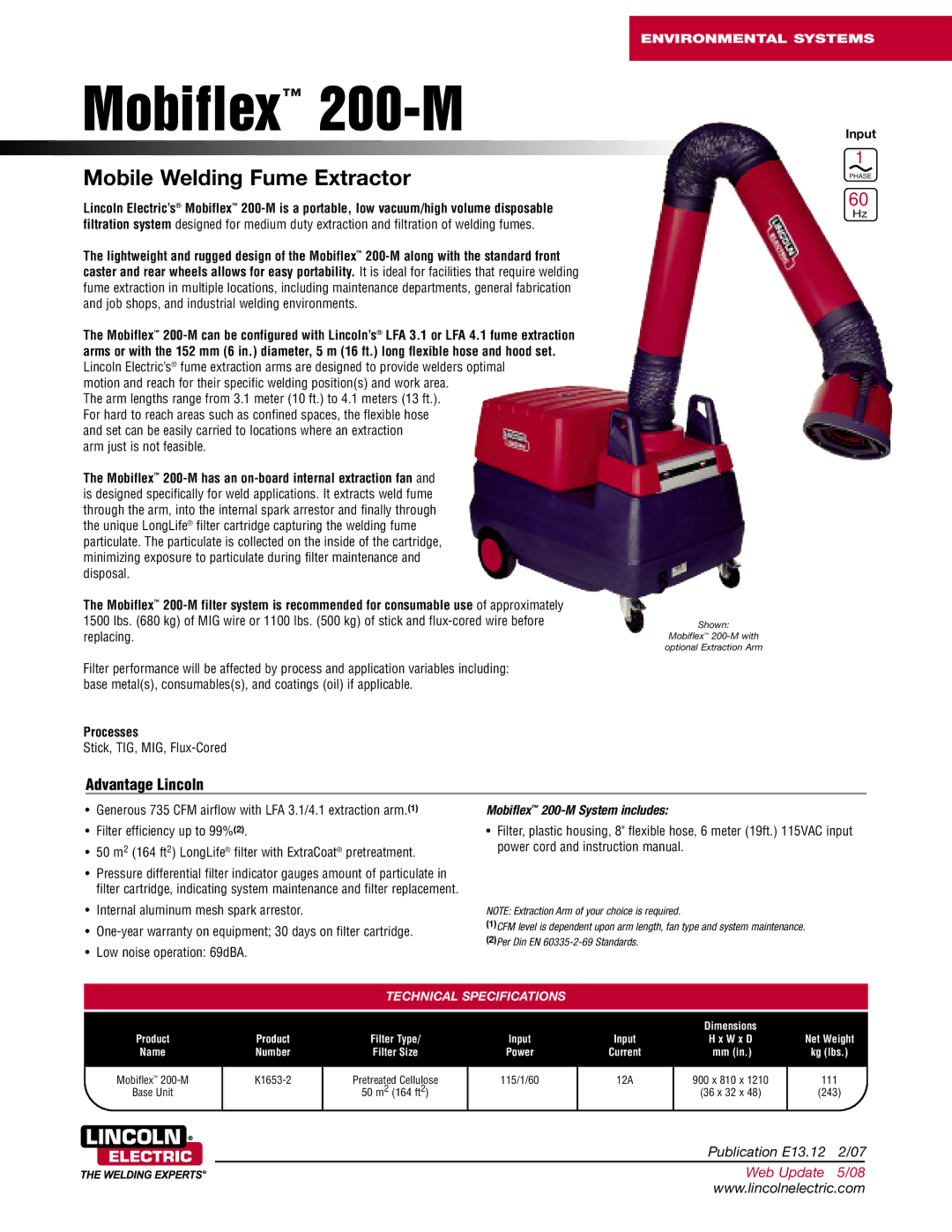

Mobiflex™ 200-M

Mobile Welding Fume Extractor

Lincoln Electric’s® Mobiflex™ 200-M is a portable, low vacuum/high volume disposable filtration system designed for medium duty extraction and filtration of welding fumes.

The lightweight and rugged design of the Mobiflex™ 200-M along with the standard front caster and rear wheels allows for easy portability. It is ideal for facilities that require welding fume extraction in multiple locations, including maintenance departments, general fabrication and job shops, and industrial welding environments.

The Mobiflex™ 200-M can be configured with Lincoln’s® LFA 3.1 or LFA 4.1 fume extraction arms or with the 152 mm (6 in.) diameter, 5 m (16 ft.) long flexible hose and hood set. Lincoln Electric’s® fume extraction arms are designed to provide welders optimal

motion and reach for their specific welding position(s) and work area. The arm lengths range from 3.1 meter (10 ft.) to 4.1 meters (13 ft.). For hard to reach areas such as confined spaces, the flexible hose and set can be easily carried to locations where an extraction

arm just is not feasible.

The Mobiflex™ 200-M has an on-board internal extraction fan and is designed specifically for weld applications. It extracts weld fume through the arm, into the internal spark arrestor and finally through the unique LongLife® filter cartridge capturing the welding fume particulate. The particulate is collected on the inside of the cartridge, minimizing exposure to particulate during filter maintenance and disposal.

The Mobiflex™ 200-M filter system is recommended for consumable use of approximately 1500 lbs. (680 kg) of MIG wire or 1100 lbs. (500 kg) of stick and flux-cored wire before replacing.

Filter performance will be affected by process and application variables including: base metal(s), consumables(s), and coatings (oil) if applicable.

Processes

Stick, TIG, MIG, Flux-Cored

ENVIRONMENTAL SYSTEMS

Input

1

PHASE

60

Hz

Shown:

Mobiflex™ 200-M with optional Extraction Arm

Advantage Lincoln

•Generous 735 CFM airflow with LFA 3.1/4.1 extraction arm.(1)

•Filter efficiency up to 99%(2).

•50 m2 (164 ft2) LongLife® filter with ExtraCoat® pretreatment.

•Pressure differential filter indicator gauges amount of particulate in filter cartridge, indicating system maintenance and filter replacement.

•Internal aluminum mesh spark arrestor.

•One-year warranty on equipment; 30 days on filter cartridge.

•Low noise operation: 69dBA.

Mobiflex™ 200-M System includes:

•Filter, plastic housing, 8" flexible hose, 6 meter (19ft.) 115VAC input power cord and instruction manual.

NOTE: Extraction Arm of your choice is required.

(1)CFM level is dependent upon arm length, fan type and system maintenance.

(2)Per Din EN 60335-2-69 Standards.

TECHNICAL SPECIFICATIONS

Product

Name

Mobiflex™ 200-M

Base Unit

Product Number

K1653-2

Filter Type/

Filter Size

Pretreated Cellulose

50 m2 (164 ft2)

Input

Power

115/1/60

Input

Current

12A

Dimensions

H x W x D mm (in.)

900 x 810 x 1210

(36 x 32 x 48)

Net Weight

kg (lbs.)

111

(243)

Publication E13.12 2/07

Web Update 5/08 www.lincolnelectric.com
