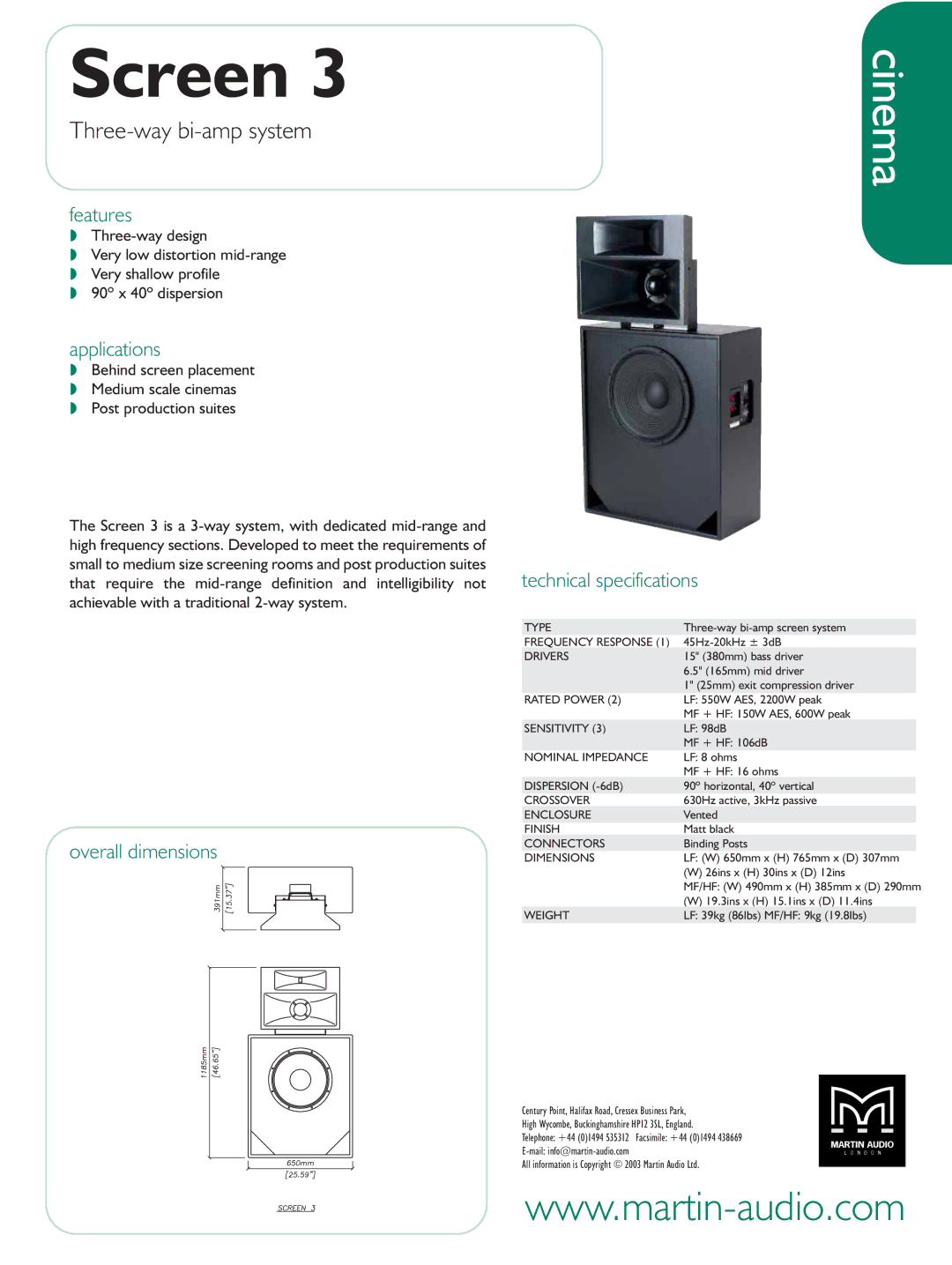

Martin Audio Screen 3 technical specifications Cinema, Three-way bi-amp system

Screen 3

Three-way bi-amp system

features

!Three-way design

!Very low distortion mid-range

!Very shallow profile

!90º x 40º dispersion

applications

!Behind screen placement

!Medium scale cinemas

!Post production suites

The Screen 3 is a 3-way system, with dedicated mid-range and high frequency sections. Developed to meet the requirements of small to medium size screening rooms and post production suites that require the mid-range definition and intelligibility not achievable with a traditional 2-way system.

overall dimensions

cinema

technical specifications

TYPE	Three-way bi-amp screen system
FREQUENCY RESPONSE (1)	45Hz-20kHz ± 3dB
DRIVERS	15" (380mm) bass driver
	6.5" (165mm) mid driver
	1" (25mm) exit compression driver
RATED POWER (2)	LF: 550W AES, 2200W peak
	MF + HF: 150W AES, 600W peak
SENSITIVITY (3)	LF: 98dB
	MF + HF: 106dB
NOMINAL IMPEDANCE	LF: 8 ohms
	MF + HF: 16 ohms
DISPERSION (-6dB)	90º horizontal, 40º vertical
CROSSOVER	630Hz active, 3kHz passive
ENCLOSURE	Vented
FINISH	Matt black
CONNECTORS	Binding Posts
DIMENSIONS	LF: (W) 650mm x (H) 765mm x (D) 307mm
	(W) 26ins x (H) 30ins x (D) 12ins
	MF/HF: (W) 490mm x (H) 385mm x (D) 290mm
	(W) 19.3ins x (H) 15.1ins x (D) 11.4ins
WEIGHT	LF: 39kg (86lbs) MF/HF: 9kg (19.8lbs)
