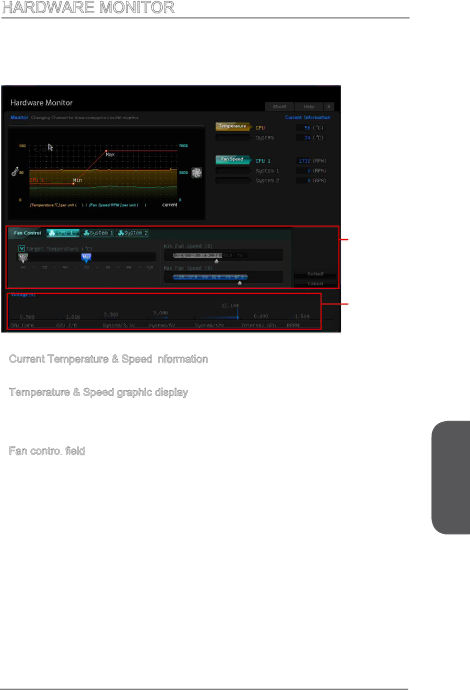

HARDWARE MONITOR

Temperature &

Current

Temperature & Speed

Speed

information

graphic display



































Fan

control field

Voltage display

Current Temperature & Speed information

Shows the current CPU temperature, system temperature and fans' speeds.

Temperature & Speed graphic display

The red graph shows the minimum and maximum temperatures that be set on the “Fan control field”. The yellow graph shows current CPU/ system temperature. The green shows current CPU/ System fan speed.

Fan control field

This motherboard provides a fan speed control feature call “Smart Fan Control”. Smart Fan Control automatically controls fan speed depending on the current CPU/ system temperature and to keep it with a specific operating speed. When the current CPU/ system temperature is over the maximum temperature, the CPU/ system fan will run at the maximum speed. When the current CPU/ system temperature is under the minimum temperature, the CPU/ system fan will run at the minimum speed. In this field, you can set the CPU and system fans’ speeds and target temperatures.

Chapter 3

3-27

BIOS Setup
