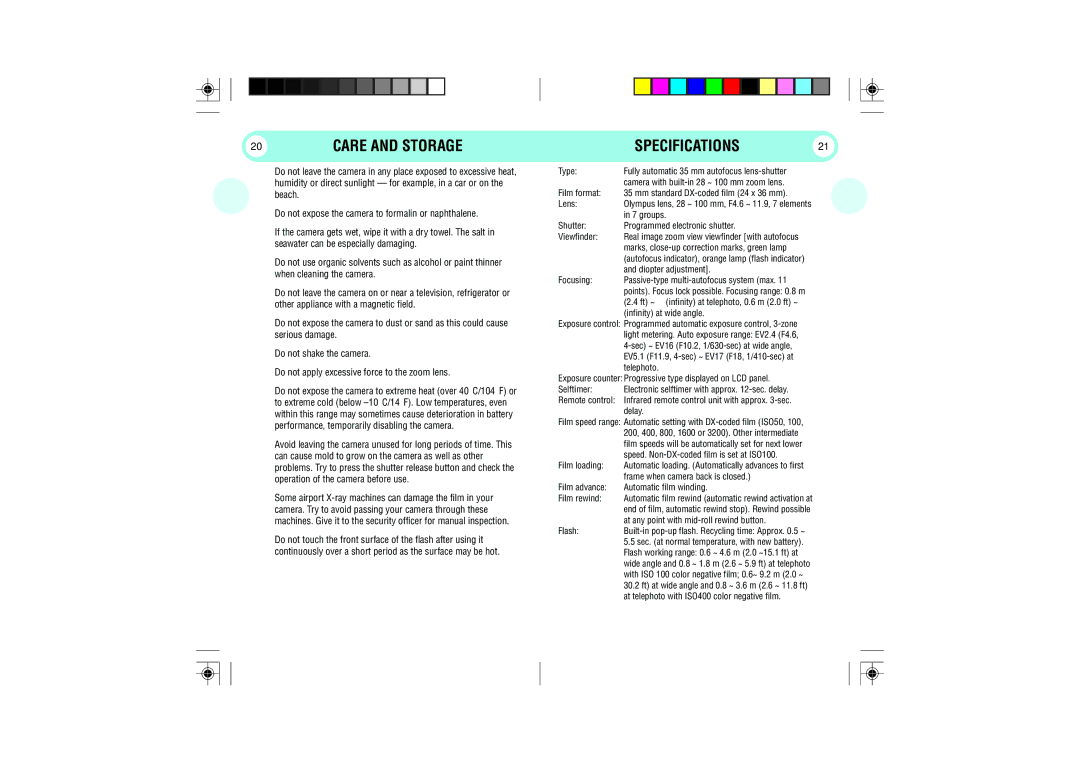

Olympus 100 manual Specifications, Care and Storage

20 CARE AND STORAGE

￿Do not leave the camera in any place exposed to excessive heat, humidity or direct sunlight — for example, in a car or on the beach.

￿Do not expose the camera to formalin or naphthalene.

￿If the camera gets wet, wipe it with a dry towel. The salt in seawater can be especially damaging.

￿Do not use organic solvents such as alcohol or paint thinner when cleaning the camera.

￿Do not leave the camera on or near a television, refrigerator or other appliance with a magnetic field.

￿Do not expose the camera to dust or sand as this could cause serious damage.

￿Do not shake the camera.

￿Do not apply excessive force to the zoom lens.

￿Do not expose the camera to extreme heat (over 40°C/104°F) or to extreme cold (below –10°C/14°F). Low temperatures, even within this range may sometimes cause deterioration in battery performance, temporarily disabling the camera.

￿Avoid leaving the camera unused for long periods of time. This can cause mold to grow on the camera as well as other problems. Try to press the shutter release button and check the operation of the camera before use.

￿Some airport X-ray machines can damage the film in your camera. Try to avoid passing your camera through these machines. Give it to the security officer for manual inspection.

￿Do not touch the front surface of the flash after using it continuously over a short period as the surface may be hot.

	SPECIFICATIONS	21
Type:	Fully automatic 35 mm autofocus lens-shutter
	camera with built-in 28 ~ 100 mm zoom lens.
Film format:	35 mm standard DX-coded film (24 x 36 mm).
Lens:	Olympus lens, 28 ~ 100 mm, F4.6 ~ 11.9, 7 elements
	in 7 groups.
Shutter:	Programmed electronic shutter.
Viewfinder:	Real image zoom view viewfinder [with autofocus
	marks, close-up correction marks, green lamp
	(autofocus indicator), orange lamp (flash indicator)
	and diopter adjustment].
Focusing:	Passive-type multi-autofocus system (max. 11
	points). Focus lock possible. Focusing range: 0.8 m
	(2.4 ft) ~ ∞ (infinity) at telephoto, 0.6 m (2.0 ft) ~ ∞
	(infinity) at wide angle.
Exposure control: Programmed automatic exposure control, 3-zone
	light metering. Auto exposure range: EV2.4 (F4.6,
	4-sec) ~ EV16 (F10.2, 1/630-sec) at wide angle,
	EV5.1 (F11.9, 4-sec) ~ EV17 (F18, 1/410-sec) at
	telephoto.
Exposure counter: Progressive type displayed on LCD panel.
Selftimer:	Electronic selftimer with approx. 12-sec. delay.
Remote control:	Infrared remote control unit with approx. 3-sec.
	delay.

Film speed range: Automatic setting with DX-coded film (ISO50, 100,

	200, 400, 800, 1600 or 3200). Other intermediate
	film speeds will be automatically set for next lower
	speed. Non-DX-coded film is set at ISO100.
Film loading:	Automatic loading. (Automatically advances to first
	frame when camera back is closed.)
Film advance:	Automatic film winding.
Film rewind:	Automatic film rewind (automatic rewind activation at
	end of film, automatic rewind stop). Rewind possible
	at any point with mid-roll rewind button.
Flash:	Built-in pop-up flash. Recycling time: Approx. 0.5 ~
	5.5 sec. (at normal temperature, with new battery).
	Flash working range: 0.6 ~ 4.6 m (2.0 ~15.1 ft) at
	wide angle and 0.8 ~ 1.8 m (2.6 ~ 5.9 ft) at telephoto
	with ISO 100 color negative film; 0.6~ 9.2 m (2.0 ~
	30.2 ft) at wide angle and 0.8 ~ 3.6 m (2.6 ~ 11.8 ft)
	at telephoto with ISO400 color negative film.
