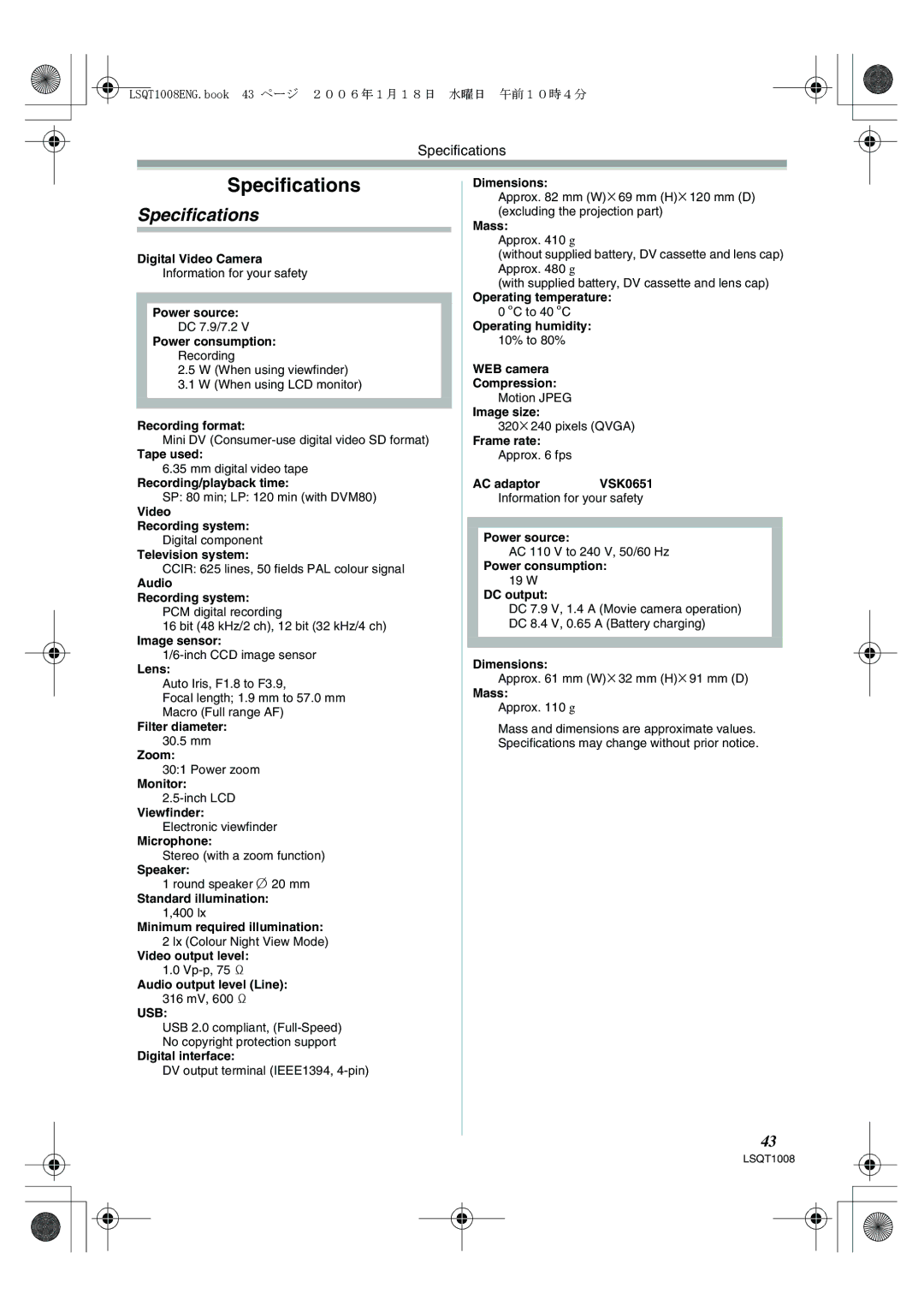

Specifications

Specifications

Specifications

Digital Video Camera

Information for your safety

Power source:

DC 7.9/7.2 V

Power consumption:

Recording

2.5W (When using viewfinder)

3.1W (When using LCD monitor)

Recording format:

Mini DV (Consumer-use digital video SD format)

Tape used:

6.35mm digital video tape

Recording/playback time:

SP: 80 min; LP: 120 min (with DVM80)

Video

Recording system: Digital component

Television system:

CCIR: 625 lines, 50 fields PAL colour signal

Audio

Recording system: PCM digital recording

16 bit (48 kHz/2 ch), 12 bit (32 kHz/4 ch)

Image sensor:

1/6-inch CCD image sensor

Lens:

Auto Iris, F1.8 to F3.9,

Focal length; 1.9 mm to 57.0 mm Macro (Full range AF)

Filter diameter:

30.5mm

Zoom:

30:1 Power zoom

Monitor: 2.5-inch LCD

Viewfinder:

Electronic viewfinder

Microphone:

Stereo (with a zoom function)

Speaker:

1 round speaker 20 mm

Standard illumination: 1,400 lx

Minimum required illumination: 2 lx (Colour Night View Mode)

Video output level:

1.0Vp-p, 75 h

Audio output level (Line): 316 mV, 600 h

USB:

USB 2.0 compliant, (Full-Speed) No copyright protection support

Digital interface:

DV output terminal (IEEE1394, 4-pin)

Dimensions:

Approx. 82 mm (W)k69 mm (H)k120 mm (D) (excluding the projection part)

Mass:

Approx. 410 g

(without supplied battery, DV cassette and lens cap) Approx. 480 g

(with supplied battery, DV cassette and lens cap)

Operating temperature:

0 oC to 40 oC

Operating humidity:

10% to 80%

WEB camera

Compression:

Motion JPEG

Image size:

320k240 pixels (QVGA)

Frame rate:

Approx. 6 fps

AC adaptor

VSK0651

Information for your safety

Power source:

AC 110 V to 240 V, 50/60 Hz

Power consumption:

19W

DC output:

DC 7.9 V, 1.4 A (Movie camera operation) DC 8.4 V, 0.65 A (Battery charging)

Dimensions:

Approx. 61 mm (W)k32 mm (H)k91 mm (D)

Mass:

Approx. 110 g

Mass and dimensions are approximate values. Specifications may change without prior notice.
