B. FEATURES

MODEL: QPSCDNV

Indoor Digital Color CCD Box

Camera With Night Vision

CCTV SYSTEM

www.q-see.com

To prevent fire or shock hazard do not expose the insides

WARNING of the unit to rain or moisture.

This symbol alerts the user to the presence of important operating and maintenance issues according to the manual.

SA 1966

This symbol alerts the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock .

SA 1965

CAUTION:

RISK OF ELECTRIC SHOCK



CAUTION:



To prevent electric shocks and

DO NOT OPEN

!



risk of fire hazards, only use the power

supply specifled for unit.

CAUT ION: T O REDUCE T HE RISK OF ELECT RIC SHOCK DO NOT

REMOVE COVER (OR BACK) NO USER-SERVICEABL E PART S

INSIDE REFER SERVICING T O QUALFIED SERVICE

PERSONINEL

Warning- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,uses,and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.



Caution

Any changes or modifications in construction of this device which are not











expressly approved by the party responsible for compliance could void













the users' authority to operate the equipment.

















A. PRECAUTIONS

a Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws or covers.

There are no user serviceable parts inside. Ask a qualified service person for servicing.

bHandle the camera with care.

Do not abuse the camera. Avoid hitting, shaking, etc.

The camera could be damaged by improper handling or storage.

cDo not use strong or abrasive detergents when cleaning the camera body.

Use a dry cloth to clean the camera when dirty .

In case the dirt is hard to remove, use a mild detergent and wipe gently.

dDo not use the camera beyond the prescribed voltage range.

Ensure the input power source voltage is conforms to the local city voltage. Higher voltage could fuse the power supply, Lower voltage could cause abnormal performance.

eDo not aim strong light directly into the camera, it will prevent

( )the camera from producting effective video.

THIS CCTV COLOR CCDCAMERA Introduces advanced CCD and digital

technology, and offers customers a high quality and high resolution picture.

Comes with auto iris lens

Indoor use only

Has a high-resolution 1/4" CCD image sensor with image resolution of 420TVL

The high performance digital-processing chip greatly improves the signal-to- noise ratio and distortion

Automatic white balance function enables the camera to produce correct and nature colors in the day, by automatically adjusting the white balance point.

Low power consumption

C. CONNECTION







D. SPECIFICATIONS







a

One monitor system with one camera























Video monitor





COLOR 1/4" SONY CCD















Image Sensor











AC ADAPTER

























电源





Pixel

NTSC:510(H)

492(V) PAL:500(H)

582(H)





CAMERA















420TVL

















Horizontal Resolution





















Sync System





Internal

















Scanning system





Interlace 2:1

















Electronic Shutter

PAL: 1/50s~1/100000s

NTSC: 1/60s~1/100000s















White Balance





Auto



b



One monitor system with two or more cameras















( )









Usable Illumination



0 Lux(when IR LEDs on)









AC ADAPTER

Video monitor

Gamma







0.45







CAMERA



















































S/N Ratio





48dB

















Video Output



1.0Vp-p 75￿ BNC

















Auto DC/Iris Drive







Yes

















Night Vision



28pcs x φ5 LEDs, 16m (53ft)

















Lens



Manual 3.5-8mm

















Mounting







CS

















AGC





Auto

















BLC





Auto

















Power Supply





DC12V 500mA

















Power Consumption





< 5W









电源



DVR

监视器

Operating Temp

-10

+50(14 F to 122 F) RH 95% Max

































Weight



13 oz (370g)



E. DIMENSIONS

Page 1
Image 1

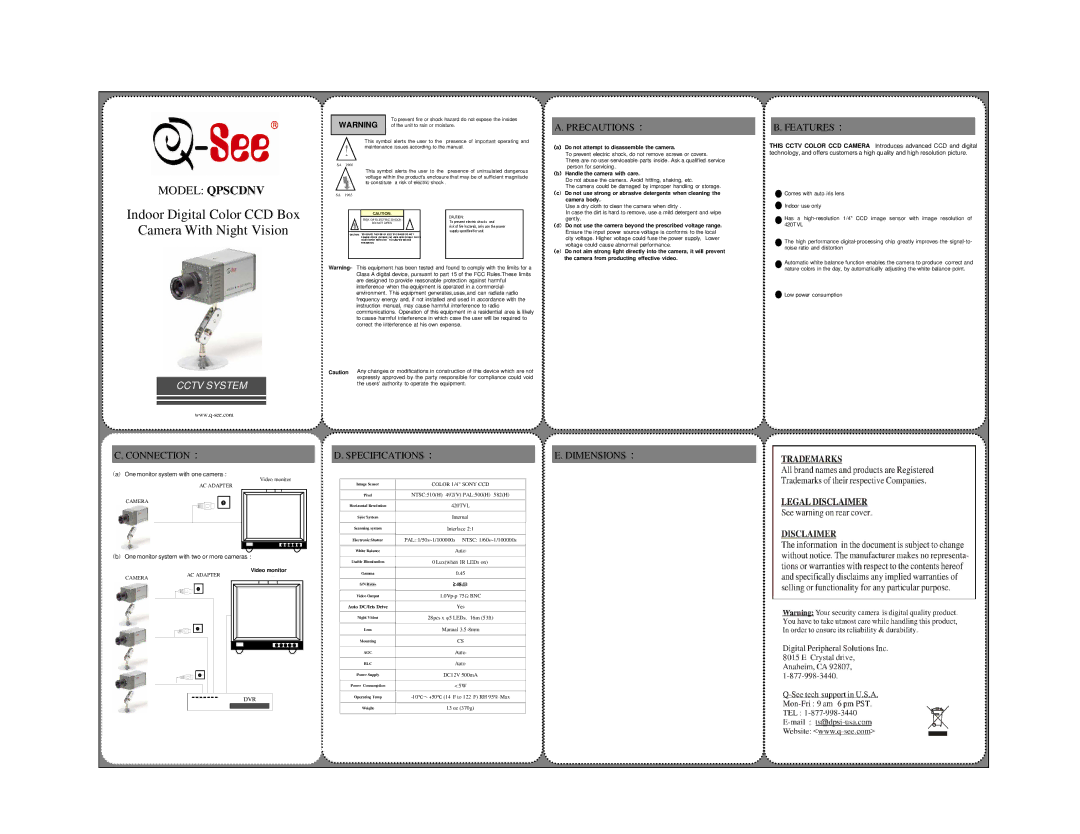

Q-See QPSCDNV specifications Precautions, Connection Specifications, Dimensions
