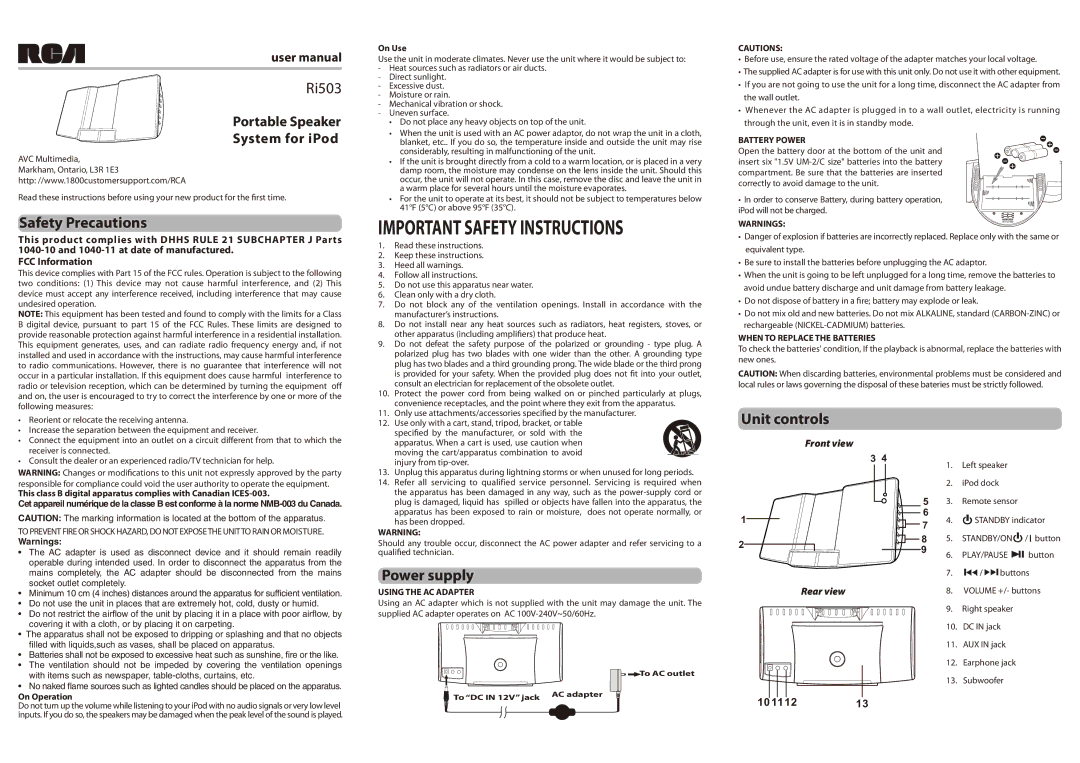

RCA RI503 user manual Remote controls Listening to your iPod, More information, Specifications

Remote controls

1

Listening to your iPod

Compatible iPod types

• iPod nano (1st generation) 1GB, 2GB, 4GB

• iPod nano (2nd generation) 2GB, 4GB, 8GB

More information

Troubleshooting tips

System doesn’t turn on

Cleaning the exterior

• Disconnect the system from AC

2

3

4

5

6

1/5. VOLUME +/- buttons

2/4. / buttons

3.STANDBY/ON/ button

6. PLAY/PAUSE button

• iPod nano 3rd generation (video) 4GB, 8GB

• iPod mini 4GB, 6GB

• iPod 5th generation (video) 30GB, 60GB, 80GB

• iPod classic 80GB, 160GB

• iPod touch 8GB, 16GB,32GB

Installing the iPod Dock Adaptor

•Unplug the unit for a moment, and then plug it back in.

•Check the outlet by plugging in another device.

No sound

• Adjust volume setting.

• Make sure you’ve selected the

power before cleaning the exterior

of the unit with a soft dust cloth.

• Clean the exterior with a soft clean

cloth or slightly moistened chamois

leather. DO NOT use solvents as it

may cause damage to the unit.

Using the Remote Control Correctly

•Point the remote control at the REMOTE SENSOR located on the unit.

•When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation.

•The recommended maximum effective distance for remote operation is about 16 feet (5 meters).

ATTENTION	To Change Battery
Remove the protective plastic tab	1. Open the battery door.
before operating the remote control.
	2. Insert one CR2025 (3V) size battery.

1. Before connecting your iPod, you need to install the appropriate iPod Dock Adapter(supplied with the iPod or sold separately) in the dock of the unit.

2. Insert your iPod Dock Adapter into the dock until it sits firmly in place.

Removing the iPod Dock Adaptor

1. Remove the iPod Dock Adapter as illustrated in the figure to the right.

2. Replace it with another one you need.

Inserting Your iPod

1. Ensure the appropriate iPod Docking Adapter is installed.

2. Insert your iPod into the connector in the dock.

correct function.

iPod does not start play

•Make sure the iPod is properly connected to the universal dock for iPod.

ESD Remark:

I n case of misfunc tion due to electrostatic discharge just reset t h e p ro d u c t ( d i s co n n e c t a n d reconnect of the power source may be required) to resume normal operation.

The descriptions and characteristics in this owner’s manual are for the purpose of general reference only and not as a guarantee. In order to provide you with the highest quality product, we may make changes or modifications without prior notice. The English version serves as the final reference on all product and operational details should any discrepancies arise in other languages.

Battery Replacement

When the battery becomes weak, the operating distance of the remote control is greatly reduced and you will need to replace it.

Note: If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.

WARNINGS:

•Do not dispose of battery in fire; battery may explode or leak.

•Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

•Danger of explosion would be resulted if battery is incorrectly replaced. Replace only with the same or equivalent type of battery.

CAUTION: When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be strictly followed.

Start playback

1.Press the STANDBY/ON / button to turn on the unit.

2.Press the PLAY/PAUSE button to start playing.

Note: When you are listening to iPod, please disconnect all other audio devices.

Notes:

•Under AC power supply, the iPod will be charged automatically.

•Under battery operation, the iPod will not be charged.

Pausing Playback

•Press the PLAY/PAUSE button.

•To resume playback, press the PLAY/PAUSE button again.

Skipping to a Another Track

•Press the button to skip to the beginning of the current track or skip to previous track. Press the button to skip to the beginning of the next track.

Locating a Particular Point on a Track

•Keep either the or button pressed during playback, according to the desired direction, and release at the desired point.

Note: Please refer to the user's guide that was included with your iPod for more details.

Specifications

DC: 12V EXTERNAL DC SUPPLY

BATTERY SUPPLY: 1.5Vx6 “C” SIZE/UM-2/LR14/MN1400

Design and specifications are subject to change without notice.

Volume adjustment

TO ADJUST THE VOLUME

Adjust the VOLUME control to obtain the desired volume.

FOR PERSONAL LISTENING

Connect headphones ( Ø3.5mm stereo mini plug) to the PHONES jack. Adjust the VOLUME control to obtain the desired volume.

When headphones are connected, the speakers are automatically disconnected.

AUX IN connection

Connecting to AUX IN for other sound sources

You can connect audio devices such as your iPod, CD players or MP3 players to the unit through the AUX IN jack. Use the Line-in cable (not supplied), connect the AUX IN jack on the back panel to the Line Out or Earphone jack of the other audio devices.

Listening to the Connected Device

Turn on the audio device you have attached to the AUX IN jack.
