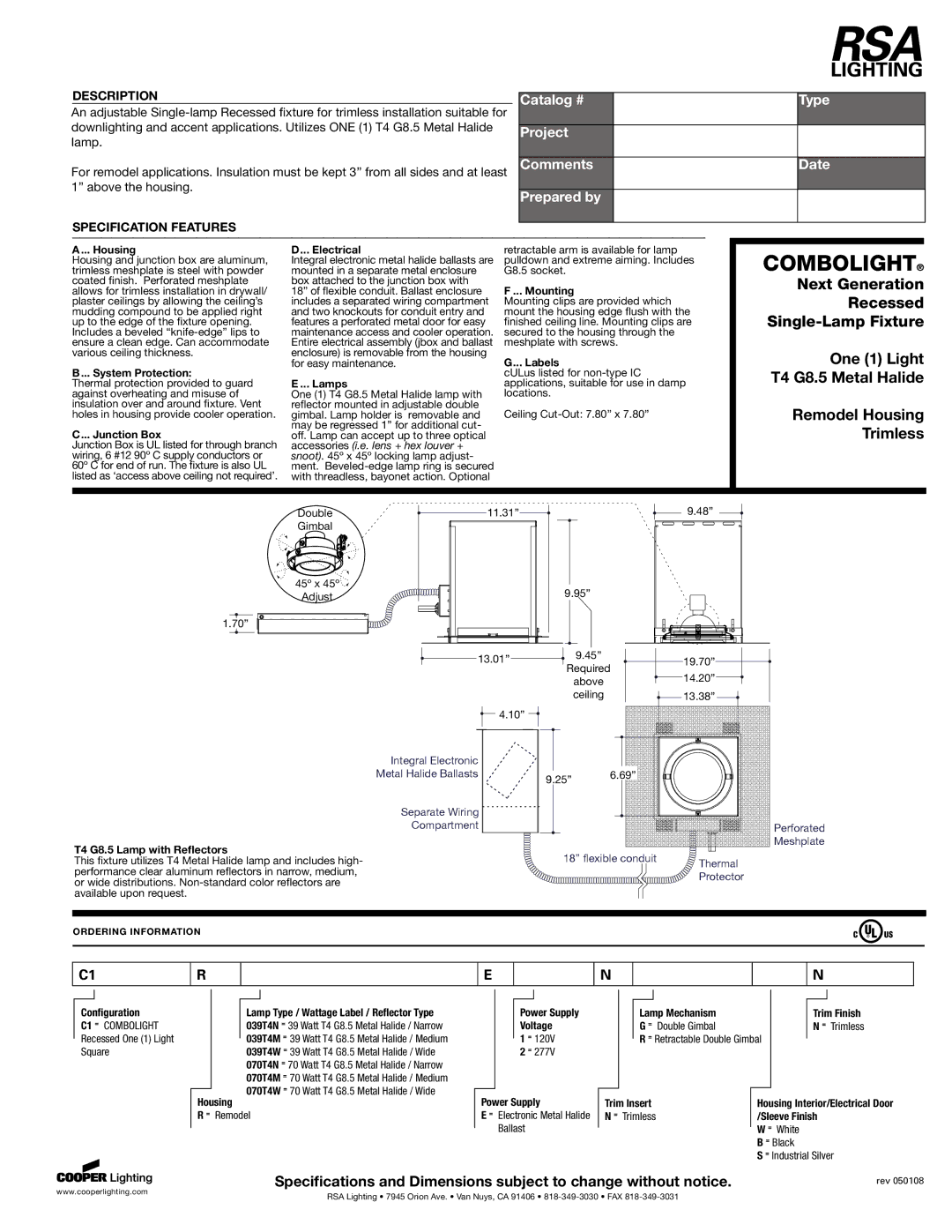

DESCRIPTION

An adjustable Single-lamp Recessed fixture for trimless installation suitable for downlighting and accent applications. Utilizes ONE (1) T4 G8.5 Metal Halide lamp.

For remodel applications. Insulation must be kept 3” from all sides and at least 1” above the housing.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A.... Housing

Housing and junction box are aluminum, trimless meshplate is steel with powder coated finish. Perforated meshplate allows for trimless installation in drywall/ plaster ceilings by allowing the ceiling’s mudding compound to be applied right up to the edge of the fixture opening. Includes a beveled “knife-edge” lips to ensure a clean edge. Can accommodate various ceiling thickness.

B.... System Protection:

Thermal protection provided to guard against overheating and misuse of insulation over and around fixture. Vent holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through branch wiring, 6 #12 90º C supply conductors or 60º C for end of run. The fixture is also UL listed as ‘access above ceiling not required’.

D... Electrical

Integral electronic metal halide ballasts are mounted in a separate metal enclosure box attached to the junction box with 18” of flexible conduit. Ballast enclosure includes a separated wiring compartment and two knockouts for conduit entry and features a perforated metal door for easy maintenance access and cooler operation. Entire electrical assembly (jbox and ballast enclosure) is removable from the housing for easy maintenance.

E.... Lamps

One (1) T4 G8.5 Metal Halide lamp with reflector mounted in adjustable double gimbal. Lamp holder is removable and may be regressed 1” for additional cut- off. Lamp can accept up to three optical accessories (i.e. lens + hex louver + snoot). 45º x 45º locking lamp adjust- ment. Beveled-edge lamp ring is secured with threadless, bayonet action. Optional

retractable arm is available for lamp pulldown and extreme aiming. Includes G8.5 socket.

F.... Mounting

Mounting clips are provided which mount the housing edge flush with the finished ceiling line. Mounting clips are secured to the housing through the meshplate with screws.

G... Labels

cULus listed for non-type IC applications, suitable for use in damp locations.

Ceiling Cut-Out: 7.80” x 7.80”

COMBOLIGHT®

Next Generation

Recessed

Single-Lamp Fixture

One (1) Light T4 G8.5 Metal Halide

Remodel Housing Trimless

Double

11.31”





9.48”

Gimbal









45º x 45º



9.95”





Adjust







1.70”











13.01”

9.45”



19.70”



Required





14.20”





above















ceiling



13.38”



4.10”









Integral Electronic









Metal Halide Ballasts

9.25”

6.69”













Separate Wiring









Compartment







T4 G8.5 Lamp with Reflectors



18” flexible conduit



This fixture utilizes T4 Metal Halide lamp and includes high-



Thermal

performance clear aluminum reflectors in narrow, medium,













Protector

or wide distributions. Non-standard color reflectors are















available upon request.









Perforated Meshplate

ORDERING INFORMATION

C1

R

E

N

N

















Configuration



Lamp Type / Wattage Label / Reflector Type



C1 = COMBOLIGHT



039T4N = 39 Watt T4 G8.5 Metal Halide / Narrow



Recessed One (1) Light



039T4M = 39 Watt T4 G8.5 Metal Halide / Medium







Square



039T4W = 39 Watt T4 G8.5 Metal Halide / Wide











070T4N = 70 Watt T4 G8.5 Metal Halide / Narrow











070T4M = 70 Watt T4 G8.5 Metal Halide / Medium











070T4W = 70 Watt T4 G8.5 Metal Halide / Wide















Housing







R =

Remodel















































Power Supply





Lamp Mechanism







Trim Finish





Voltage





G = Double Gimbal







N = Trimless





1

= 120V





R = Retractable Double Gimbal



















2

= 277V













































Power Supply

Trim Insert

Housing Interior/Electrical Door

E = Electronic Metal Halide

N = Trimless

/Sleeve Finish



Ballast













W = White

































B = Black



















S = Industrial Silver

Specifications and Dimensions subject to change without notice.

rev 050108

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031



Page 1
