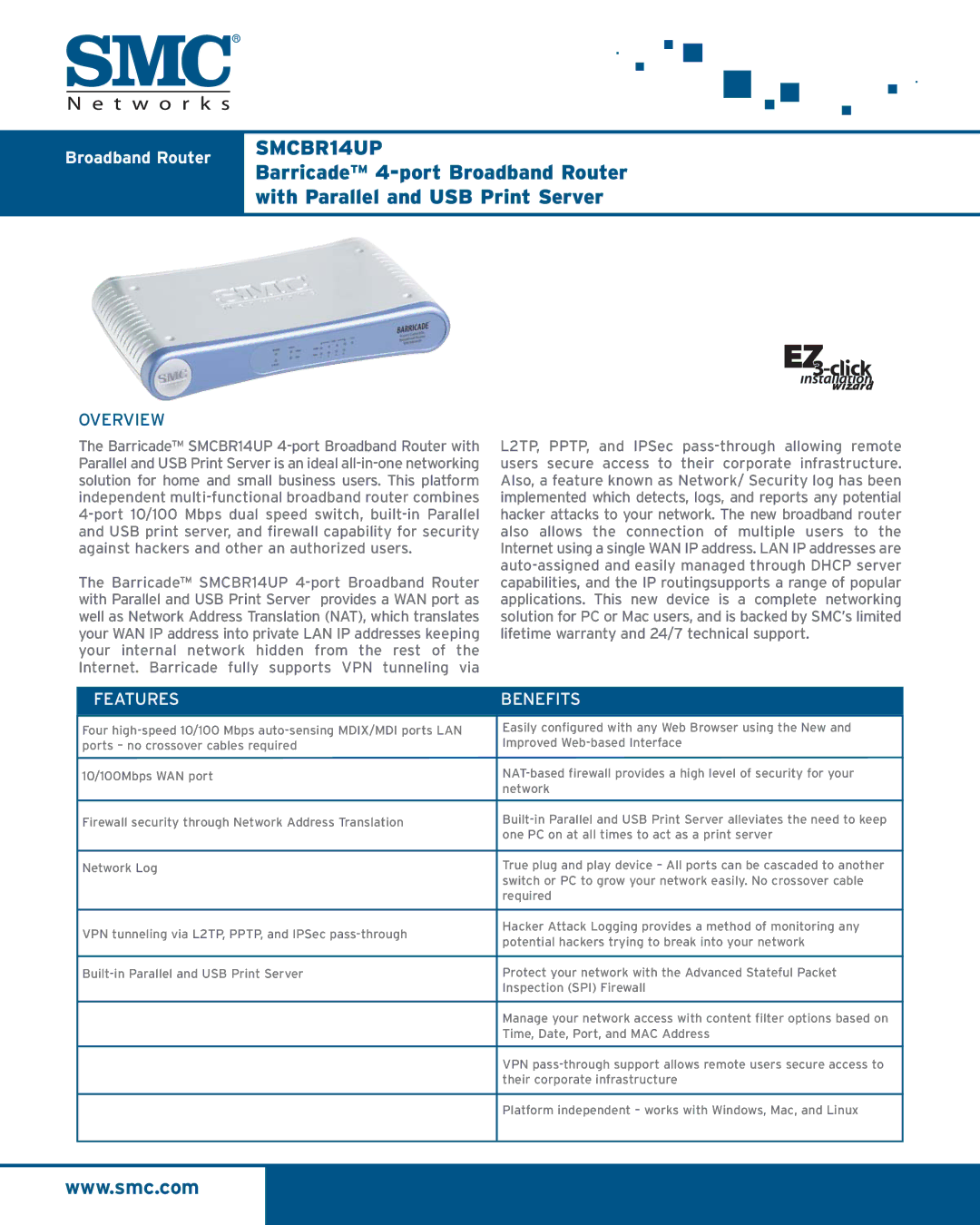

SMC Networks SMCBR14UP warranty Broadband Router, Overview, Features, Benefits

Broadband Router

SMCBR14UP

Barricade™ 4-port Broadband Router with Parallel and USB Print Server

OVERVIEW

The Barricade™ SMCBR14UP 4-port Broadband Router with Parallel and USB Print Server is an ideal all-in-one networking solution for home and small business users. This platform independent multi-functional broadband router combines 4-port 10/100 Mbps dual speed switch, built-in Parallel and USB print server, and firewall capability for security against hackers and other an authorized users.

The Barricade™ SMCBR14UP 4-port Broadband Router with Parallel and USB Print Server provides a WAN port as well as Network Address Translation (NAT), which translates your WAN IP address into private LAN IP addresses keeping your internal network hidden from the rest of the Internet. Barricade fully supports VPN tunneling via

L2TP, PPTP, and IPSec pass-through allowing remote users secure access to their corporate infrastructure. Also, a feature known as Network/ Security log has been implemented which detects, logs, and reports any potential hacker attacks to your network. The new broadband router also allows the connection of multiple users to the Internet using a single WAN IP address. LAN IP addresses are auto-assigned and easily managed through DHCP server capabilities, and the IP routingsupports a range of popular applications. This new device is a complete networking solution for PC or Mac users, and is backed by SMC’s limited lifetime warranty and 24/7 technical support.

FEATURES	BENEFITS
Four high-speed 10/100 Mbps auto-sensing MDIX/MDI ports LAN	Easily configured with any Web Browser using the New and
ports – no crossover cables required	Improved Web-based Interface
10/100Mbps WAN port	NAT-based firewall provides a high level of security for your
	network
Firewall security through Network Address Translation	Built-in Parallel and USB Print Server alleviates the need to keep
	one PC on at all times to act as a print server
Network Log	True plug and play device – All ports can be cascaded to another
	switch or PC to grow your network easily. No crossover cable
	required
VPN tunneling via L2TP, PPTP, and IPSec pass-through	Hacker Attack Logging provides a method of monitoring any
	potential hackers trying to break into your network
Built-in Parallel and USB Print Server	Protect your network with the Advanced Stateful Packet
	Inspection (SPI) Firewall
	Manage your network access with content filter options based on
	Time, Date, Port, and MAC Address
	VPN pass-through support allows remote users secure access to
	their corporate infrastructure
	Platform independent – works with Windows, Mac, and Linux

www.smc.com
