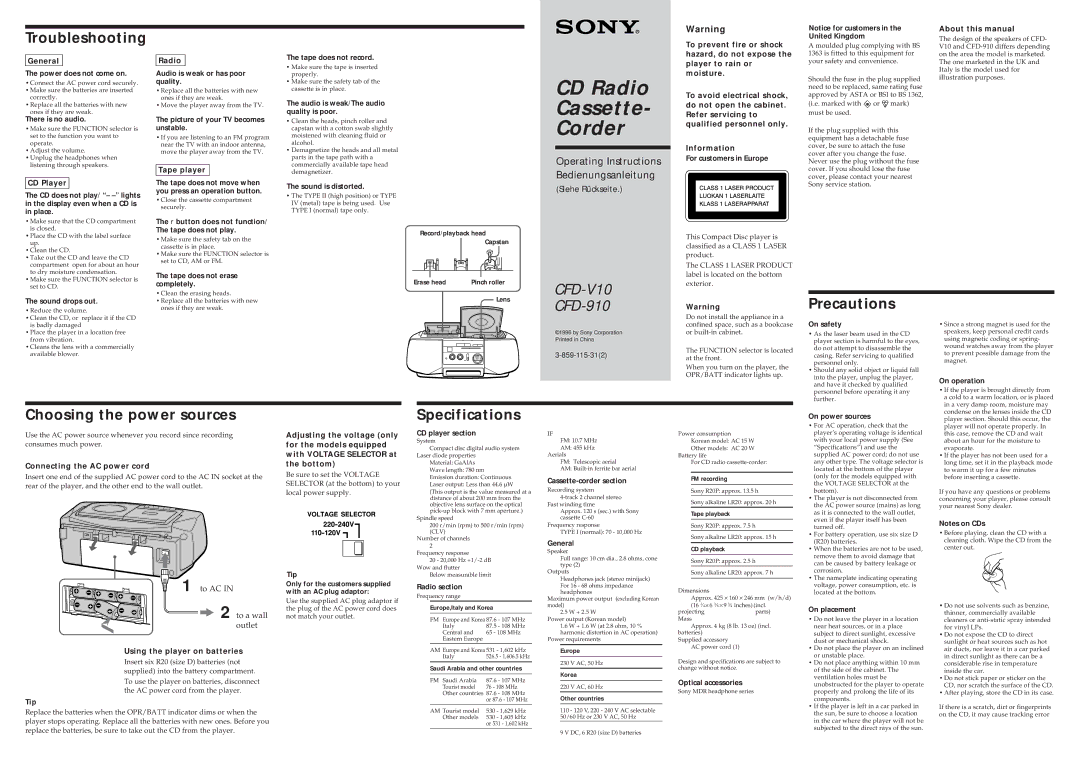

Troubleshooting

General

The power does not come on.

Connect the AC power cord securely.

Make sure the batteries are inserted correctly.

Replace all the batteries with new ones if they are weak.

There is no audio.

Radio

Audio is weak or has poor quality.

Replace all the batteries with new ones if they are weak.

Move the player away from the TV.

The picture of your TV becomes

The tape does not record.

Make sure the tape is inserted properly.

Make sure the safety tab of the cassette is in place.

The audio is weak/The audio quality is poor.

• Clean the heads, pinch roller and



Warning



To prevent fire or shock



hazard, do not expose the



player to rain or

CD Radio

moisture.

To avoid electrical shock,

Cassette-

do not open the cabinet.

Refer servicing to



qualified personnel only.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, same rating fuse approved by ASTA or BSI to BS 1362, (i.e. marked with or mark) must be used.

About this manual

The design of the speakers of CFD- V10 and CFD-910 differs depending on the area the model is marketed.

The one marketed in the UK and Italy is the model used for illustration purposes.

Make sure the FUNCTION selector is set to the function you want to operate.

Adjust the volume.

Unplug the headphones when listening through speakers.

CD Player

The CD does not play/ “– –” lights in the display even when a CD is in place.

Make sure that the CD compartment is closed.

Place the CD with the label surface up.

Clean the CD.

Take out the CD and leave the CD compartment open for about an hour to dry moisture condensation.

Make sure the FUNCTION selector is set to CD.

unstable.

If you are listening to an FM program near the TV with an indoor antenna, move the player away from the TV.

Tape player

The tape does not move when you press an operation button.

Close the cassette compartment securely.

The r button does not function/

The tape does not play.

Make sure the safety tab on the cassette is in place.

Make sure the FUNCTION selector is set to CD, AM or FM.

The tape does not erase completely.

capstan with a cotton swab slightly

moistened with cleaning fluid or

alcohol.

• Demagnetize the heads and all metal

parts in the tape path with a

commercially available tape head

demagnetizer.

The sound is distorted.

The TYPE II (high position) or TYPE IV (metal) tape is being used. Use TYPE I (normal) tape only.





Corder









Information





Operating Instructions

For customers in Europe











Bedienungsanleitung







(Siehe Rückseite.)



Record/playback head



This Compact Disc player is



Capstan







classified as a CLASS 1 LASER













product.







The CLASS 1 LASER PRODUCT

Erase head

Pinch roller



label is located on the bottom

CFD-V10

exterior.







If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

The sound drops out.

Reduce the volume.

Clean the CD, or replace it if the CD is badly damaged

Place the player in a location free from vibration.

Cleans the lens with a commercially available blower.

Clean the erasing heads.

Replace all the batteries with new ones if they are weak.

Lens

CFD-910

Warning







Do not install the appliance in a





confined space, such as a bookcase



©1996 by Sony Corporation

or built-in cabinet.



Printed in China





3-859-115-31(2)

The FUNCTION selector is located



at the front.









When you turn on the player, the





OPR/BATT indicator lights up.

Precautions

On safety

As the laser beam used in the CD player section is harmful to the eyes, do not attempt to disassemble the casing. Refer servicing to qualified personnel only.

Should any solid object or liquid fall into the player, unplug the player, and have it checked by qualified personnel before operating it any further.

Since a strong magnet is used for the speakers, keep personal credit cards using magnetic coding or spring- wound watches away from the player to prevent possible damage from the magnet.

On operation

• If the player is brought directly from

a cold to a warm location, or is placed

in a very damp room, moisture may

Choosing the power sources

Use the AC power source whenever you record since recording consumes much power.

Connecting the AC power cord

Insert one end of the supplied AC power cord to the AC IN socket at the rear of the player, and the other end to the wall outlet.

1 to AC IN

Adjusting the voltage (only for the models equipped with VOLTAGE SELECTOR at the bottom)

Be sure to set the VOLTAGE SELECTOR (at the bottom) to your local power supply.

Tip

Only for the customers supplied with an AC plug adaptor:

Specifications







CD player section

IF

Power consumption

System

FM: 10.7 MHz

Korean model: AC 15 W

Compact disc digital audio system

AM: 455 kHz

Other models: AC 20 W

Laser diode properties

Aerials

Battery life

Material: GaAlAs

FM: Telescopic aerial

For CD radio cassette-corder:

Wave length: 780 nm

AM: Built-in ferrite bar aerial





Emission duration: Continuous

Cassette-corder section



FM recording

Laser output: Less than 44.6 µW



Recording system



Sony R20P: approx. 13.5 h

(This output is the value measured at a



distance of about 200 mm from the

4-track 2 channel stereo







Sony alkaline LR20: approx. 20 h

objective lens surface on the optical

Fast winding time



pick-up block with 7 mm aperture.)

Approx. 120 s (sec.) with Sony



Tape playback

Spindle speed

cassette C-60











200 r/min (rpm) to 500 r/min (rpm)

Frequency response



Sony R20P: approx. 7.5 h

(CLV)

TYPE I (normal): 70 - 10,000 Hz







Sony alkaline LR20: approx. 15 h

Number of channels

General



2



CD playback

Frequency response

Speaker







20 - 20,000 Hz +1/-2 dB

Full range: 10 cm dia., 2.8 ohms, cone



Sony R20P: approx. 2.5 h

type (2)



Wow and flutter









Outputs



Sony alkaline LR20: approx. 7 h

Below measurable limit



Headphones jack (stereo minijack)











Radio section

For 16 - 68 ohms impedance

Dimensions

Frequency range

headphones



Approx. 425 × 160 × 246 mm (w/h/d)

On power sources

For AC operation, check that the player’s operating voltage is identical with your local power supply (See “Specifications”) and use the supplied AC power cord; do not use any other type. The voltage selector is located at the bottom of the player (only for the models equipped with the VOLTAGE SELECTOR at the bottom).

The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

For battery operation, use six size D (R20) batteries.

When the batteries are not to be used, remove them to avoid damage that can be caused by battery leakage or corrosion.

The nameplate indicating operating voltage, power consumption, etc. is located at the bottom.

condense on the lenses inside the CD

player section. Should this occur, the

player will not operate properly. In

this case, remove the CD and wait

about an hour for the moisture to

evaporate.

• If the player has not been used for a

long time, set it in the playback mode

to warm it up for a few minutes

before inserting a cassette.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Notes on CDs

Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out.

2 to a wall outlet

Using the player on batteries

Insert six R20 (size D) batteries (not supplied) into the battery compartment. To use the player on batteries, disconnect the AC power cord from the player.

Tip

Replace the batteries when the OPR/BATT indicator dims or when the player stops operating. Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the player.

Use the supplied AC plug adaptor if the plug of the AC power cord does not match your outlet.







Maximum power output (excluding Korean

(16 34 × 6 38 × 9 34



Europe,Italy and Korea

model)

inches) (incl.

2.5 W + 2.5 W

projecting

parts)













FM

Europe and Korea 87.6 - 107 MHz

Power output (Korean model)

Mass





Italy

87.5 - 108 MHz

1.6 W + 1.6 W (at 2.8 ohm, 10 %

Approx. 4 kg (8 lb. 13 oz) (incl.



Central and

65 - 108 MHz

harmonic distortion in AC operation)

batteries)





Eastern Europe



Power requirements

Supplied accessory



AM Europe and Korea 531 - 1,602 kHz





AC power cord (1)

Europe







Italy

526.5 - 1,606.5 kHz





Design and specifications are subject to



230 V AC, 50 Hz













Saudi Arabia and other countries

change without notice.





Korea











FM

Saudi Arabia

87.6 - 107 MHz

Optical accessories





220 V AC, 60 Hz



Tourist model

76 - 108 MHz

Sony MDR headphone series



Other countries

87.6 - 108 MHz























or 87.6 - 107 MHz

Other countries









AM Tourist model

530 - 1,629 kHz

110 - 120 V, 220 - 240 V AC selectable

Other models

530 - 1,605 kHz

50/60 Hz or 230 V AC, 50 Hz



or 531 - 1,602 kHz







9 V DC, 6 R20 (size D) batteries





On placement

Do not leave the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.

Do not place the player on an inclined or unstable place.

Do not place anything within 10 mm of the side of the cabinet. The ventilation holes must be unobstructed for the player to operate properly and prolong the life of its components.

If the player is left in a car parked in the sun, be sure to choose a location in the car where the player will not be subjected to the direct rays of the sun.

Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

Do not expose the CD to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight as there can be a considerable rise in temperature inside the car.

Do not stick paper or sticker on the CD, nor scratch the surface of the CD.

After playing, store the CD in its case.

If there is a scratch, dirt or fingerprints on the CD, it may cause tracking error
