Sony PCV-RX270DS dimensions Model Dimensions CPU, Processor, Cache Memory, Front Side Bus Speed

i.LINK®

(IEEE 1394)

-in Built

Ethernet

Video Audio Integrated Operation

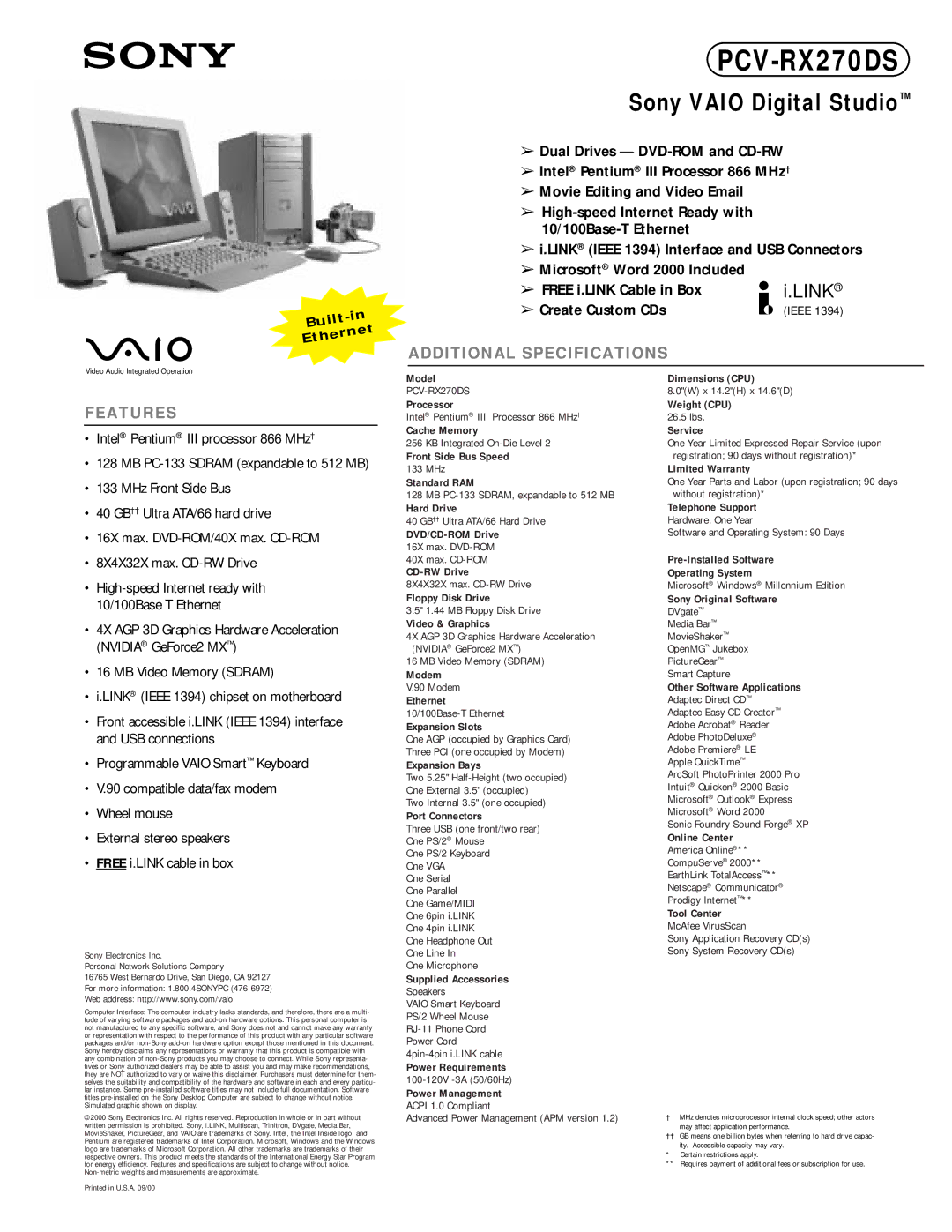

PCV-RX270DS

Sony VAIO Digital Studio™

➢Dual Drives — DVD-ROM and CD-RW

➢Intel® Pentium® III Processor 866 MHz†

➢Movie Editing and Video Email

➢High-speed Internet Ready with 10/100Base-T Ethernet

➢i.LINK® (IEEE 1394) Interface and USB Connectors

➢Microsoft® Word 2000 Included

➢ FREE i.LINK Cable in Box ➢ Create Custom CDs

ADDITIONAL SPECIFICATIONS

Model	Dimensions (CPU)
PCV-RX270DS	8.0"(W) x 14.2"(H) x 14.6"(D)

FEATURES

•Intel® Pentium® III processor 866 MHz†

•128 MB PC-133 SDRAM (expandable to 512 MB)

•133 MHz Front Side Bus

•40 GB†† Ultra ATA/66 hard drive

•16X max. DVD-ROM/40X max. CD-ROM

•8X4X32X max. CD-RW Drive

•High-speed Internet ready with 10/100Base T Ethernet

•4X AGP 3D Graphics Hardware Acceleration (NVIDIA® GeForce2 MX™)

•16 MB Video Memory (SDRAM)

•i.LINK® (IEEE 1394) chipset on motherboard

•Front accessible i.LINK (IEEE 1394) interface and USB connections

•Programmable VAIO Smart™ Keyboard

•V.90 compatible data/fax modem

•Wheel mouse

•External stereo speakers

•FREE i.LINK cable in box

Sony Electronics Inc.

Personal Network Solutions Company

16765 West Bernardo Drive, San Diego, CA 92127 For more information: 1.800.4SONYPC (476-6972) Web address: http://www.sony.com/vaio

Computer Interface: The computer industry lacks standards, and therefore, there are a multi- tude of varying software packages and add-on hardware options. This personal computer is not manufactured to any specific software, and Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this document. Sony hereby disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representa- tives or Sony authorized dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for them- selves the suitability and compatibility of the hardware and software in each and every particu- lar instance. Some pre-installed software titles may not include full documentation. Software titles pre-installed on the Sony Desktop Computer are subject to change without notice. Simulated graphic shown on display.

©2000 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, i.LINK, Multiscan, Trinitron, DVgate, Media Bar, MovieShaker, PictureGear, and VAIO are trademarks of Sony. Intel, the Intel Inside logo, and Pentium are registered trademarks of Intel Corporation. Microsoft, Windows and the Windows logo are trademarks of Microsoft Corporation. All other trademarks are trademarks of their respective owners. This product meets the standards of the International Energy Star Program for energy efficiency. Features and specifications are subject to change without notice. Non-metric weights and measurements are approximate.

Printed in U.S.A. 09/00

Processor

Intel® Pentium® III Processor 866 MHz†

Cache Memory

256 KB Integrated On-Die Level 2

Front Side Bus Speed

133MHz

Standard RAM

128MB PC-133 SDRAM, expandable to 512 MB

Hard Drive

40GB†† Ultra ATA/66 Hard Drive

DVD/CD-ROM Drive 16X max. DVD-ROM 40X max. CD-ROM

CD-RW Drive

8X4X32X max. CD-RW Drive

Floppy Disk Drive

3.5" 1.44 MB Floppy Disk Drive

Video & Graphics

4X AGP 3D Graphics Hardware Acceleration (NVIDIA® GeForce2 MX™)

16MB Video Memory (SDRAM)

Modem

V.90 Modem

Ethernet 10/100Base-T Ethernet

Expansion Slots

One AGP (occupied by Graphics Card) Three PCI (one occupied by Modem)

Expansion Bays

Two 5.25" Half-Height (two occupied) One External 3.5" (occupied)

Two Internal 3.5" (one occupied)

Port Connectors

Three USB (one front/two rear) One PS/2® Mouse

One PS/2 Keyboard One VGA

One Serial One Parallel One Game/MIDI One 6pin i.LINK One 4pin i.LINK

One Headphone Out One Line In

One Microphone

Supplied Accessories Speakers

VAIO Smart Keyboard PS/2 Wheel Mouse RJ-11 Phone Cord Power Cord 4pin-4pin i.LINK cable

Power Requirements

100-120V -3A (50/60Hz)

Power Management ACPI 1.0 Compliant

Advanced Power Management (APM version 1.2)

Weight (CPU)

26.5lbs.

Service

One Year Limited Expressed Repair Service (upon registration; 90 days without registration)*

Limited Warranty

One Year Parts and Labor (upon registration; 90 days without registration)*

Telephone Support Hardware: One Year

Software and Operating System: 90 Days

Pre-Installed Software

Operating System

Microsoft® Windows® Millennium Edition

Sony Original Software

DVgate™

Media Bar™

MovieShaker™

OpenMG™ Jukebox

PictureGear™

Smart Capture

Other Software Applications

Adaptec Direct CD™

Adaptec Easy CD Creator™

Adobe Acrobat® Reader

Adobe PhotoDeluxe®

Adobe Premiere® LE

Apple QuickTime™

ArcSoft PhotoPrinter 2000 Pro

Intuit® Quicken® 2000 Basic

Microsoft® Outlook® Express

Microsoft® Word 2000

Sonic Foundry Sound Forge® XP

Online Center

America Online®**

CompuServe® 2000**

EarthLink TotalAccess™**

Netscape® Communicator®

Prodigy Internet™**

Tool Center

McAfee VirusScan

Sony Application Recovery CD(s)

Sony System Recovery CD(s)

†MHz denotes microprocessor internal clock speed; other actors may affect application performance.

††GB means one billion bytes when referring to hard drive capac- ity. Accessible capacity may vary.

*Certain restrictions apply.

**Requires payment of additional fees or subscription for use.
