Sony SNCDH110W manual SNC-DH110, KEY Features

2nd Streaming

VGA video of a cropped area

1st Streaming

VGA video of a whole

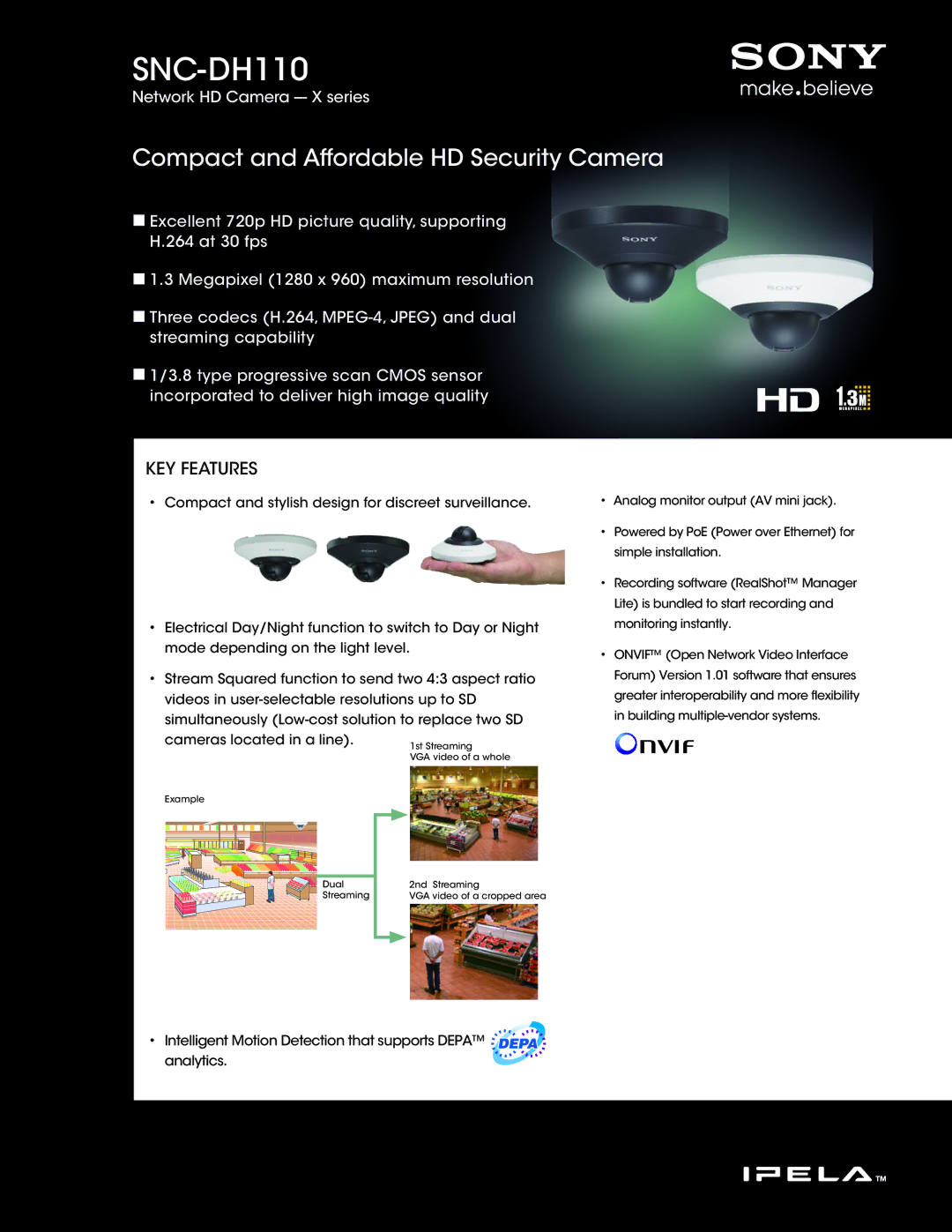

SNC-DH110

Network HD Camera --- X series

Compact and Affordable HD Security Camera

Excellent 720p HD picture quality, supporting

H.264 at 30 fps

1.3 Megapixel (1280 x 960) maximum resolution

Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability

1/3.8 type progressive scan CMOS sensor incorporated to deliver high image quality

KEY FEATURES

•Compact and stylish design for discreet surveillance.

•Electrical Day/Night function to switch to Day or Night mode depending on the light level.

•Stream Squared function to send two 4:3 aspect ratio videos in user-selectable resolutions up to SD simultaneously (Low-cost solution to replace two SD cameras located in a line).

•Analog monitor output (AV mini jack).

•Powered by PoE (Power over Ethernet) for simple installation.

•Recording software (RealShot™ Manager Lite) is bundled to start recording and monitoring instantly.

•ONVIF™ (Open Network Video Interface Forum) Version 1.01 software that ensures greater interoperability and more flexibility in building multiple-vendor systems.

Example

Dual

Streaming

•Intelligent Motion Detection that supports DEPA™ analytics.
