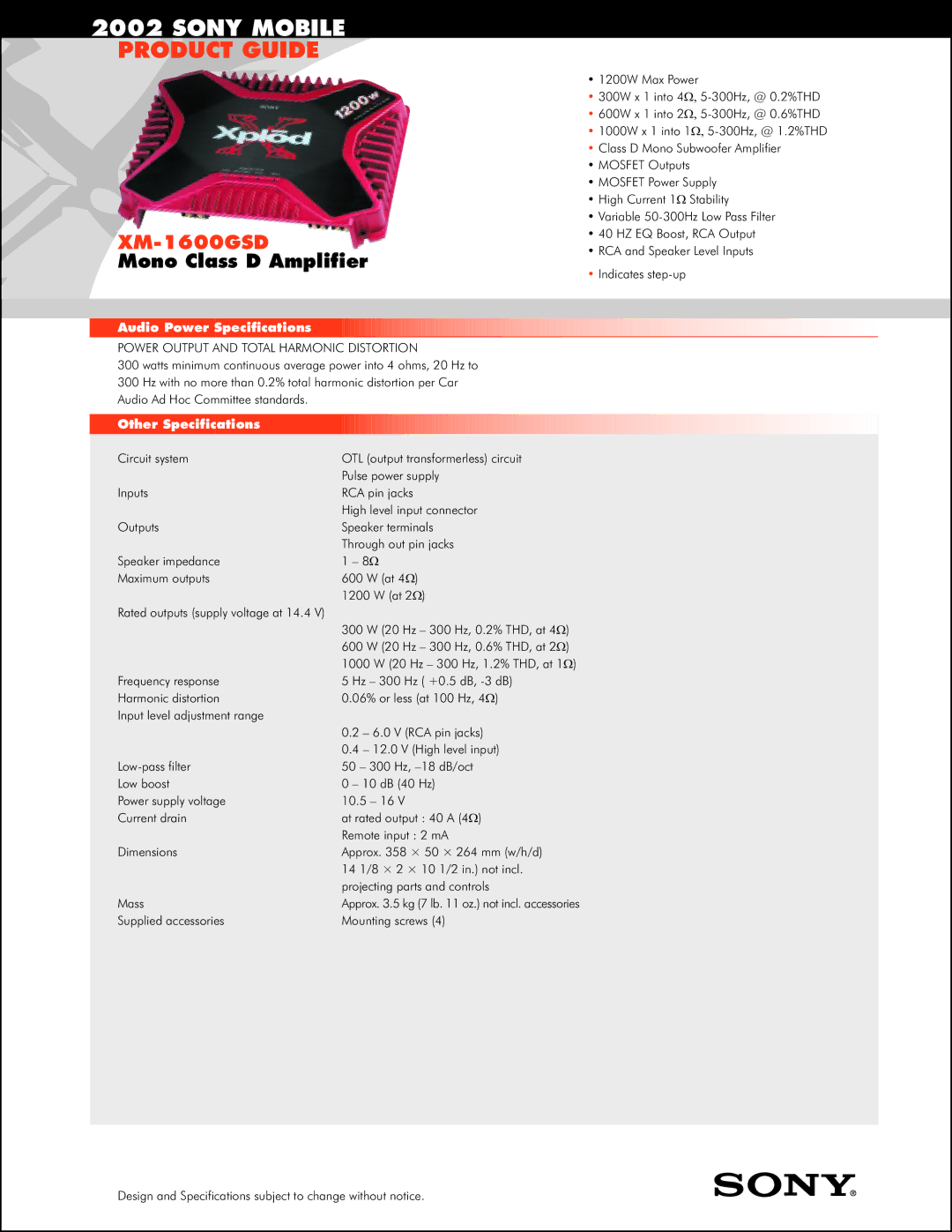

Mono Class D Amplifier
Filter Control
Connections
| Low Boost Control |
Hi Level Input | Input Level Control |
|
3 - 25A fuses | Battery | Test Tone | Through Output | Subwoofer OUT |
| Ground | Remote | Line Input | Subwoofer OUT |
|
|
|
|

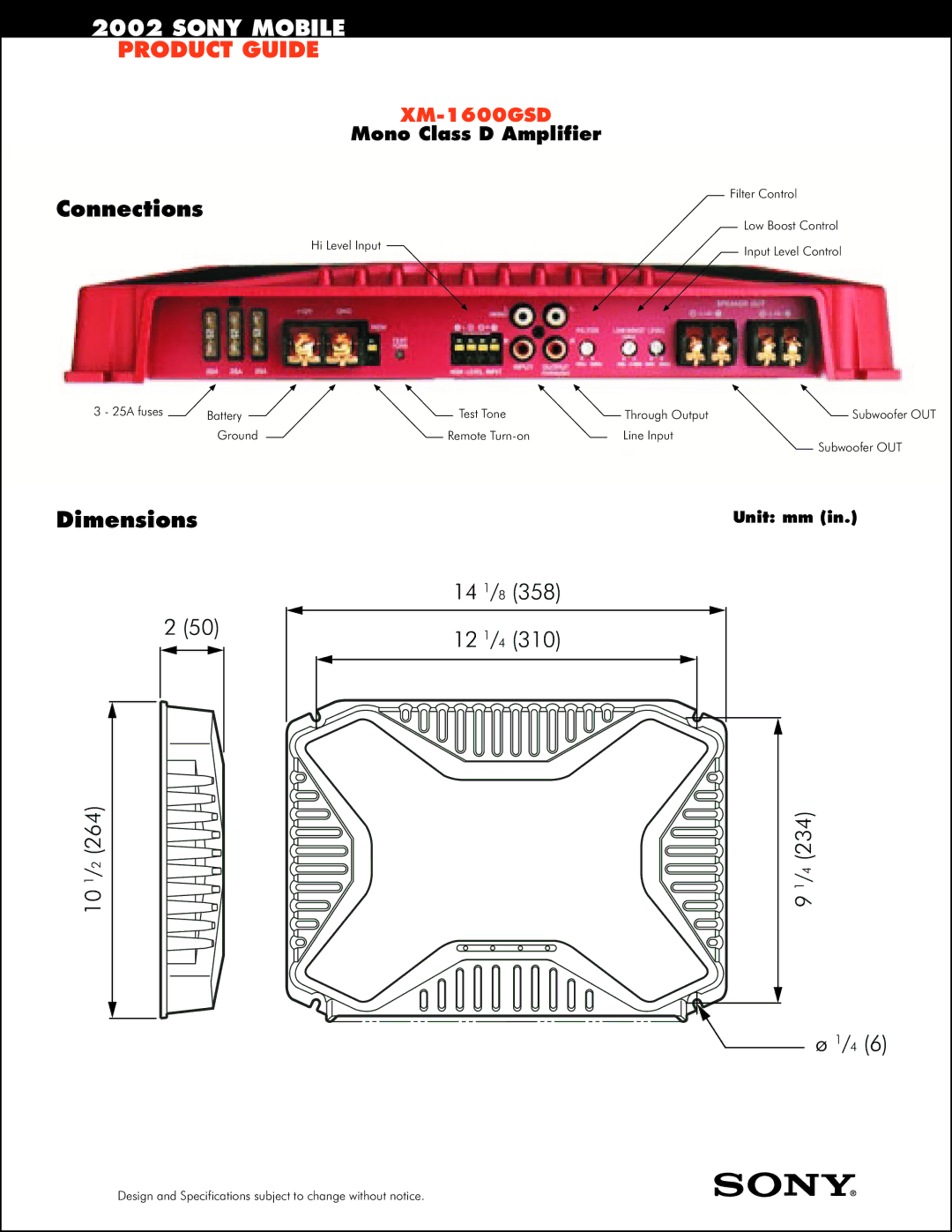

Dimensions
2 (50)
10 1/2 (264)
Unit: mm (in.)
14 1/8 (358)
12 1/4 (310)
9 1/4 (234)
ø 1/4 (6)
Design and Specifications subject to change without notice.
