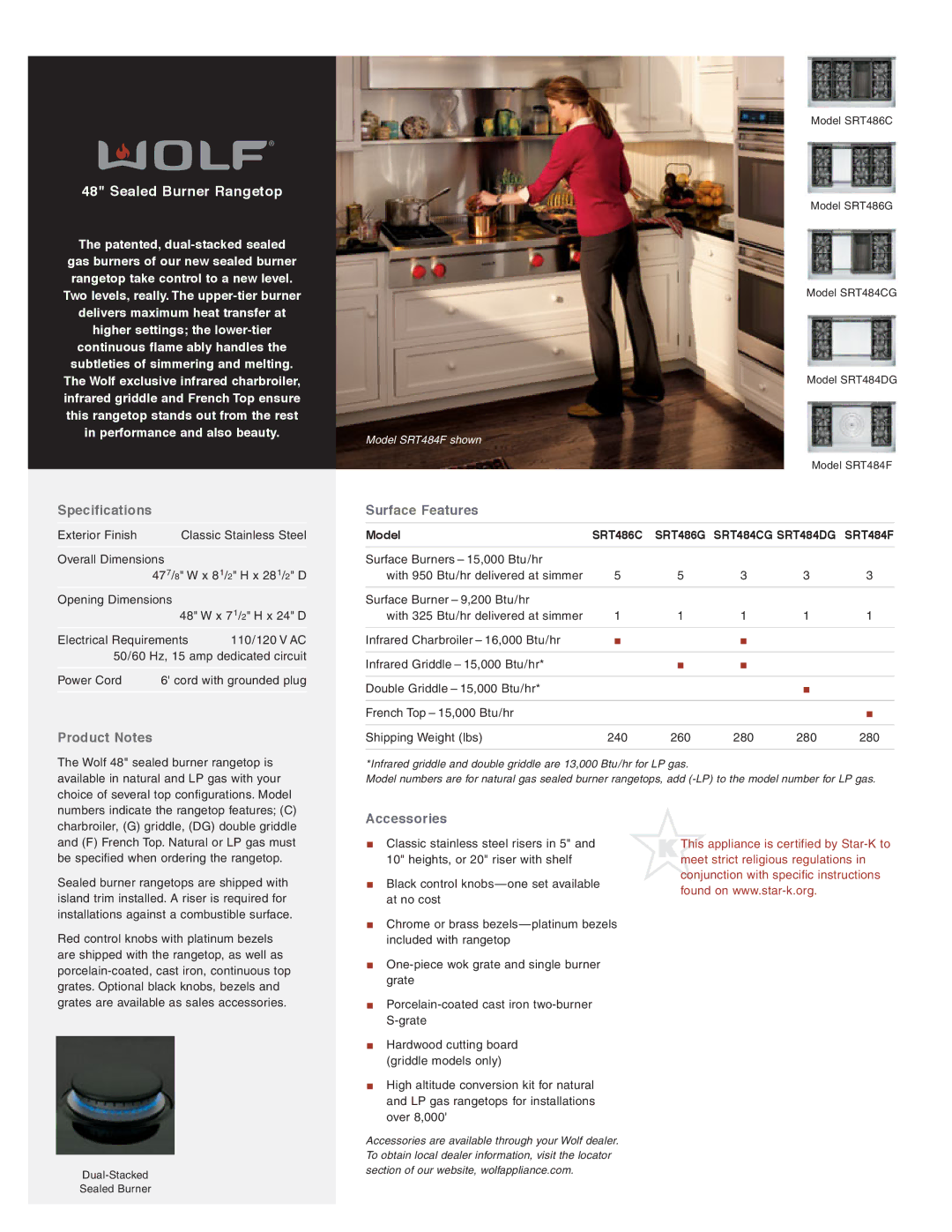

48" Sealed Burner Rangetop

The patented, dual-stacked sealed gas burners of our new sealed burner rangetop take control to a new level. Two levels, really. The upper-tier burner delivers maximum heat transfer at higher settings; the lower-tier continuous flame ably handles the subtleties of simmering and melting. The Wolf exclusive infrared charbroiler, infrared griddle and French Top ensure this rangetop stands out from the rest in performance and also beauty.

Specifications

Exterior Finish

Classic Stainless Steel

Overall Dimensions





477/8" W x 81/2" H x 281/2" D

Opening Dimensions





48" W x 71/2" H x 24" D

Electrical Requirements

110/120 V AC

50/60 Hz, 15 amp dedicated circuit

Power Cord

6' cord with grounded plug

Product Notes

The Wolf 48" sealed burner rangetop is available in natural and LP gas with your choice of several top configurations. Model numbers indicate the rangetop features; (C)

Model SRT486C

Model SRT486G

Model SRT484CG

Model SRT484DG

Model SRT484F shown

Model SRT484F

Surface Features

Model

SRT486C

SRT486G SRT484CG SRT484DG

SRT484F

































Surface Burners – 15,000 Btu/hr































with 950 Btu/hr delivered at simmer

5

5

3

3

3

































Surface Burner – 9,200 Btu/hr































with 325 Btu/hr delivered at simmer

1

1

1

1

1

































Infrared Charbroiler – 16,000 Btu/hr



























































































































Infrared Griddle – 15,000 Btu/hr*



























































































































Double Griddle – 15,000 Btu/hr*



























































































































French Top – 15,000 Btu/hr



























































































































Shipping Weight (lbs)

240

260

280

280

280

































*Infrared griddle and double griddle are 13,000 Btu/hr for LP gas.

Model numbers are for natural gas sealed burner rangetops, add (-LP) to the model number for LP gas.

charbroiler, (G) griddle, (DG) double griddle and (F) French Top. Natural or LP gas must be specified when ordering the rangetop.

Sealed burner rangetops are shipped with island trim installed. A riser is required for installations against a combustible surface.

Red control knobs with platinum bezels are shipped with the rangetop, as well as porcelain-coated, cast iron, continuous top grates. Optional black knobs, bezels and grates are available as sales accessories.

Dual-Stacked

Sealed Burner

Accessories

Classic stainless steel risers in 5" and 10" heights, or 20" riser with shelf

Black control knobs—one set available at no cost

Chrome or brass bezels—platinum bezels included with rangetop

One-piece wok grate and single burner grate

Porcelain-coated cast iron two-burner S-grate

Hardwood cutting board (griddle models only)

High altitude conversion kit for natural and LP gas rangetops for installations over 8,000'

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the locator section of our website, wolfappliance.com.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.
