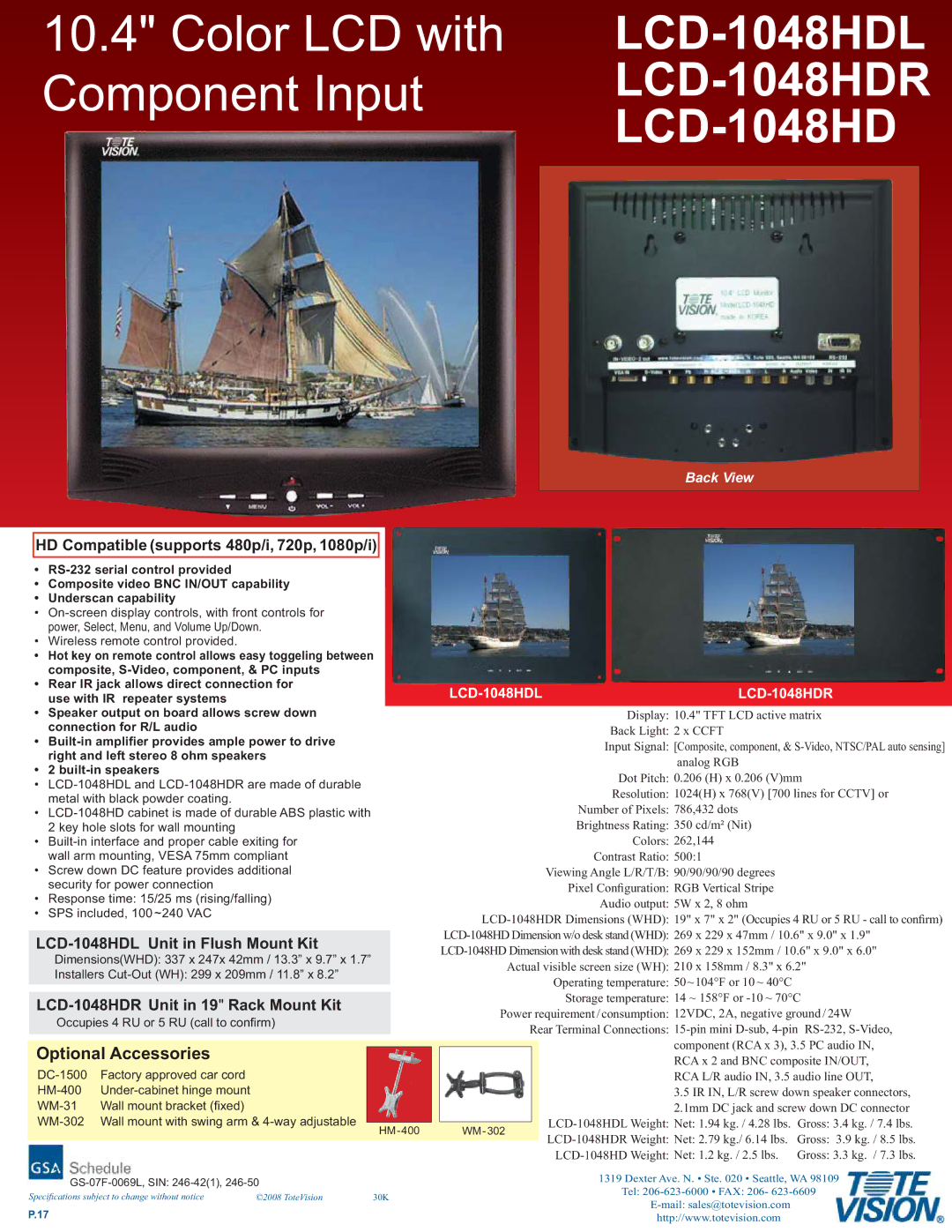

Tote Vision LCD-1048HDL, LCD-1048HDR dimensions HD Compatible supports 480p/i, 720p, 1080p/i

10.4" Color LCD with Component Input

LCD-1048HDL LCD-1048HDR LCD-1048HD

Back View

HD Compatible (supports 480p/i, 720p, 1080p/i)

	• RS-232 serial control provided
	• Composite video BNC IN/OUT capability
	• Underscan capability
	• On-screen display controls, with front controls for
	power, Select, Menu, and Volume Up/Down.
	• Wireless remote control provided.
	• Hot key on remote control allows easy toggeling between
	composite, S-Video, component, & PC inputs
	• Rear IR jack allows direct connection for				LCD-1048HDL	LCD-1048HDR
	use with IR repeater systems
	• Speaker output on board allows screw down					Display: 10.4" TFT LCD active matrix
	connection for R/L audio					Back Light: 2 x CCFT
	• Built-in amplifier provides ample power to drive					Input Signal: [Composite, component, & S-Video, NTSC/PAL auto sensing]
	right and left stereo 8 ohm speakers
						analog RGB
	• 2 built-in speakers
						Dot Pitch: 0.206 (H) x 0.206 (V)mm
	• LCD-1048HDL and LCD-1048HDR are made of durable
						Resolution: 1024(H) x 768(V) [700 lines for CCTV] or
	metal with black powder coating.
						Number of Pixels: 786,432 dots
	• LCD-1048HD cabinet is made of durable ABS plastic with
	2 key hole slots for wall mounting					Brightness Rating: 350 cd/m² (Nit)
	• Built-in interface and proper cable exiting for					Colors: 262,144
	wall arm mounting, VESA 75mm compliant					Contrast Ratio: 500:1
	• Screw down DC feature provides additional					Viewing Angle L/R/T/B: 90/90/90/90 degrees
	security for power connection					Pixel Configuration: RGB Vertical Stripe
	• Response time: 15/25 ms (rising/falling)					Audio output: 5W x 2, 8 ohm
	• SPS included, 100~240 VAC
					LCD-1048HDR Dimensions (WHD): 19" x 7" x 2" (Occupies 4 RU or 5 RU - call to confirm)
					LCD-1048HD Dimension w/o desk stand (WHD): 269 x 229 x 47mm / 10.6" x 9.0" x 1.9"
	LCD-1048HDL Unit in Flush Mount Kit
					LCD-1048HD Dimension with desk stand (WHD): 269 x 229 x 152mm / 10.6" x 9.0" x 6.0"
	Dimensions(WHD): 337 x 247x 42mm / 13.3” x 9.7” x 1.7”				Actual visible screen size (WH): 210 x 158mm / 8.3" x 6.2"
	Installers Cut-Out (WH): 299 x 209mm / 11.8” x 8.2”
						Operating temperature: 50~104°F or 10 ~ 40°C
	LCD-1048HDR Unit in 19" Rack Mount Kit					Storage temperature: 14 ~ 158°F or -10 ~ 70°C
					Power requirement/consumption: 12VDC, 2A, negative ground/24W
	Occupies 4 RU or 5 RU (call to confi rm)
					Rear Terminal Connections: 15-pin mini D-sub, 4-pin RS-232, S-Video,
						component (RCA x 3), 3.5 PC audio IN,
	Optional Accessories
						RCA x 2 and BNC composite IN/OUT,
	DC-1500	Factory approved car cord				RCA L/R audio IN, 3.5 audio line OUT,
	HM-400	Under-cabinet hinge mount				3.5 IR IN, L/R screw down speaker connectors,
	WM-31 Wall mount bracket (fi xed)					2.1mm DC jack and screw down DC connector
	WM-302 Wall mount with swing arm & 4-way adjustable					LCD-1048HDL Weight: Net: 1.94 kg. / 4.28 lbs. Gross: 3.4 kg. / 7.4 lbs.
				HM-400	WM-302
						LCD-1048HDR Weight: Net: 2.79 kg./ 6.14 lbs.	Gross: 3.9 kg. / 8.5 lbs.
						LCD-1048HD Weight: Net: 1.2 kg. / 2.5 lbs.	Gross: 3.3 kg. / 7.3 lbs.
