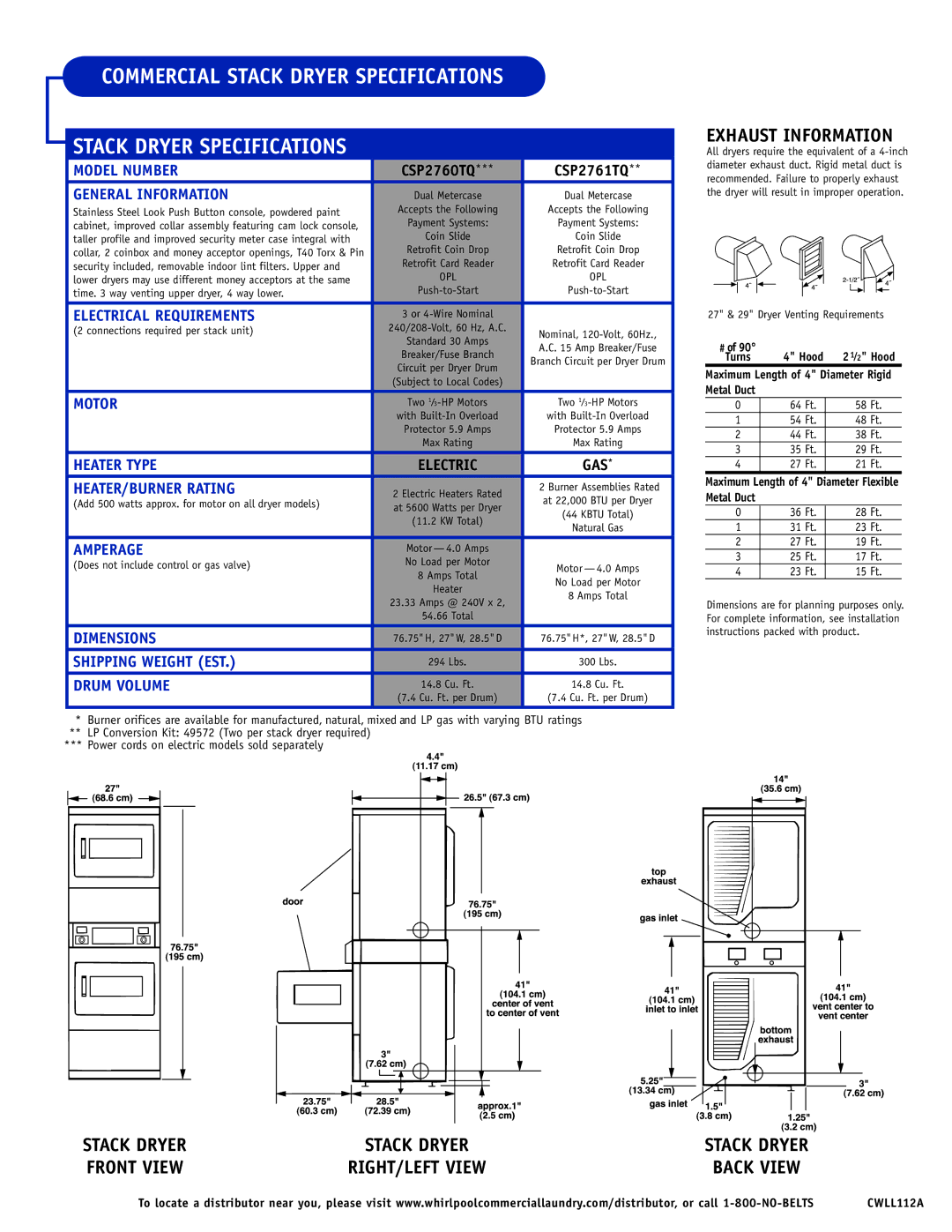

COMMERCIAL STACK DRYER SPECIFICATIONS





STACK DRYER SPECIFICATIONS















MODEL NUMBER

CSP2760TQ***

CSP2761TQ**



GENERAL INFORMATION

Dual Metercase

Dual Metercase



Stainless Steel Look Push Button console, powdered paint

Accepts the Following

Accepts the Following



cabinet, improved collar assembly featuring cam lock console,

Payment Systems:

Payment Systems:



taller profile and improved security meter case integral with

Coin Slide

Coin Slide



collar, 2 coinbox and money acceptor openings, T40 Torx & Pin

Retrofit Coin Drop

Retrofit Coin Drop



security included, removable indoor lint filters. Upper and

Retrofit Card Reader

Retrofit Card Reader



lower dryers may use different money acceptors at the same

OPL

OPL



time. 3 way venting upper dryer, 4 way lower.

Push-to-Start

Push-to-Start



ELECTRICAL REQUIREMENTS

3 or 4-Wire Nominal





(2 connections required per stack unit)

240/208-Volt, 60 Hz, A.C.

Nominal, 120-Volt, 60Hz.,







Standard 30 Amps







A.C. 15 Amp Breaker/Fuse







Breaker/Fuse Branch







Branch Circuit per Dryer Drum







Circuit per Dryer Drum















(Subject to Local Codes)













MOTOR

Two 13-HP Motors

Two 13-HP Motors







with Built-In Overload

with Built-In Overload







Protector 5.9 Amps

Protector 5.9 Amps







Max Rating

Max Rating











HEATER TYPE

ELECTRIC

GAS*



HEATER/BURNER RATING

2 Electric Heaters Rated

2 Burner Assemblies Rated











(Add 500 watts approx. for motor on all dryer models)

at 5600 Watts per Dryer

at 22,000 BTU per Dryer







(44 KBTU Total)







(11.2 KW Total)







Natural Gas











AMPERAGE

Motor — 4.0 Amps





(Does not include control or gas valve)

No Load per Motor

Motor — 4.0 Amps







8 Amps Total







No Load per Motor







Heater







8 Amps Total







23.33 Amps @ 240V x 2,















54.66 Total













DIMENSIONS

76.75" H, 27" W, 28.5" D

76.75" H*, 27" W, 28.5" D



SHIPPING WEIGHT (EST.)

294 Lbs.

300 Lbs.



DRUM VOLUME

14.8 Cu. Ft.

14.8 Cu. Ft.







(7.4 Cu. Ft. per Drum)

(7.4 Cu. Ft. per Drum)

*Burner orifices are available for manufactured, natural, mixed and LP gas with varying BTU ratings ** LP Conversion Kit: 49572 (Two per stack dryer required)

***Power cords on electric models sold separately

EXHAUST INFORMATION

All dryers require the equivalent of a 4-inch diameter exhaust duct. Rigid metal duct is recommended. Failure to properly exhaust the dryer will result in improper operation.

27" & 29" Dryer Venting Requirements

# of 90°

4" Hood

2 12" Hood

Turns

Maximum Length of 4" Diameter Rigid Metal Duct

0

64

Ft.

58

Ft.

1

54

Ft.

48

Ft.

2

44

Ft.

38

Ft.

3

35

Ft.

29

Ft.

4

27

Ft.

21

Ft.

Maximum Length of 4" Diameter Flexible Metal Duct

0

36

Ft.

28

Ft.

1

31

Ft.

23

Ft.

2

27

Ft.

19

Ft.

3

25

Ft.

17

Ft.

4

23

Ft.

15

Ft.

Dimensions are for planning purposes only. For complete information, see installation instructions packed with product.

STACK DRYER

STACK DRYER

STACK DRYER

FRONT VIEW

RIGHT/LEFT VIEW

BACK VIEW

To locate a distributor near you, please visit www.whirlpoolcommerciallaundry.com/distributor, or call 1-800-NO-BELTS

CWLL112A
