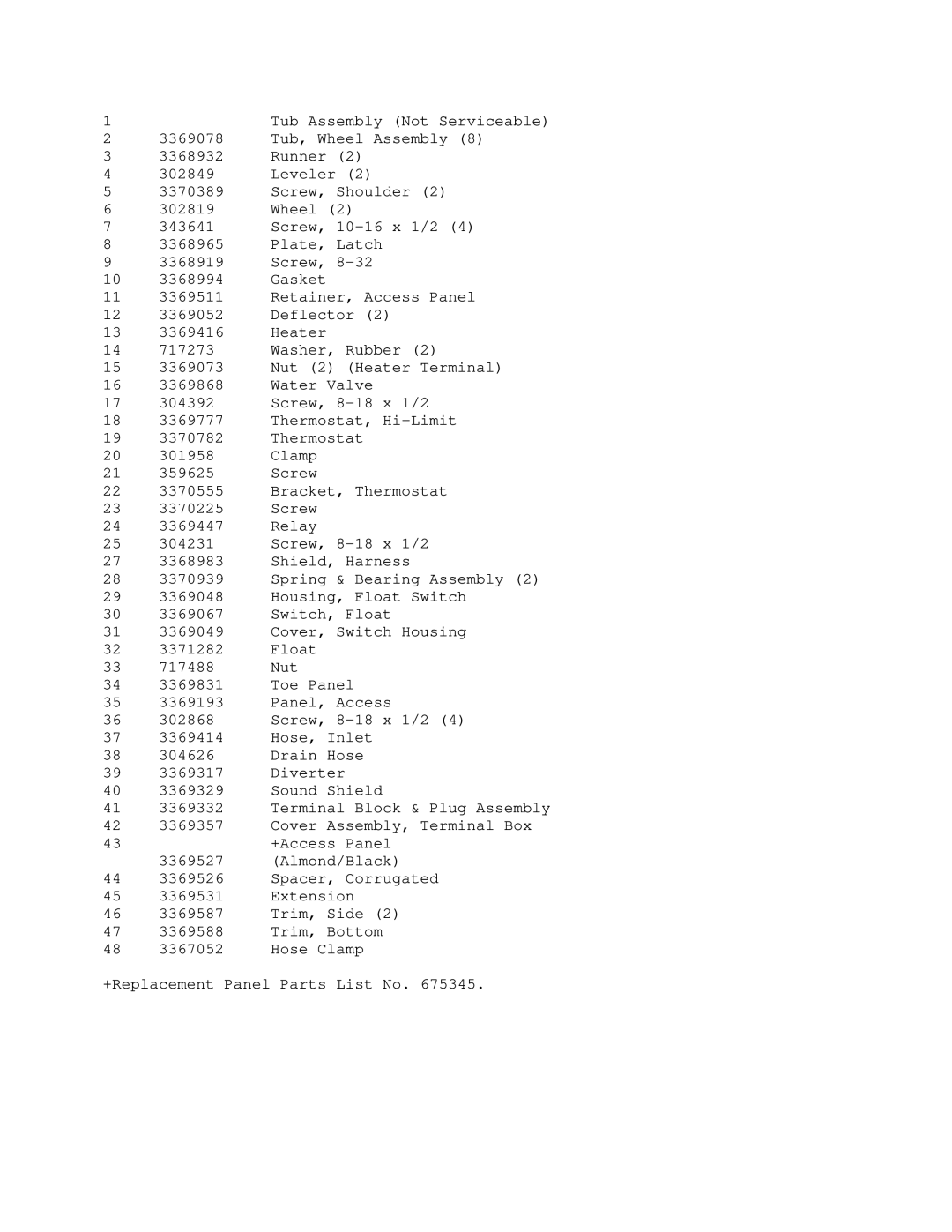

1 |
| Tub Assembly (Not Serviceable) |
2 | 3369078 | Tub, Wheel Assembly (8) |
3 | 3368932 | Runner (2) |
4 | 302849 | Leveler (2) |
5 | 3370389 | Screw, Shoulder (2) |
6 | 302819 | Wheel (2) |
7 | 343641 | Screw, |
8 | 3368965 | Plate, Latch |
9 | 3368919 | Screw, |
10 | 3368994 | Gasket |
113369511 Retainer, Access Panel
123369052 Deflector (2)
13 3369416 Heater
14717273 Washer, Rubber (2)
153369073 Nut (2) (Heater Terminal)
16 | 3369868 | Water Valve |
17304392 Screw,
183369777 Thermostat,
19 | 3370782 | Thermostat |
20 | 301958 | Clamp |
21 | 359625 | Screw |
22 | 3370555 | Bracket, Thermostat |
23 | 3370225 | Screw |
24 | 3369447 | Relay |
25 | 304231 | Screw, |
27 | 3368983 | Shield, Harness |
283370939 Spring & Bearing Assembly (2)
293369048 Housing, Float Switch
303369067 Switch, Float
313369049 Cover, Switch Housing
32 | 3371282 | Float |
33 | 717488 | Nut |
34 | 3369831 | Toe Panel |
35 | 3369193 | Panel, Access |
36 | 302868 | Screw, |
37 | 3369414 | Hose, Inlet |
38 | 304626 | Drain Hose |
39 | 3369317 | Diverter |
40 | 3369329 | Sound Shield |
413369332 Terminal Block & Plug Assembly
423369357 Cover Assembly, Terminal Box
43 |
| +Access Panel |
| 3369527 | (Almond/Black) |
44 | 3369526 | Spacer, Corrugated |
45 | 3369531 | Extension |
46 | 3369587 | Trim, Side (2) |
47 | 3369588 | Trim, Bottom |
48 | 3367052 | Hose Clamp |
+Replacement Panel Parts List No. 675345.
