SERVICE AND ADJUSTMENTS

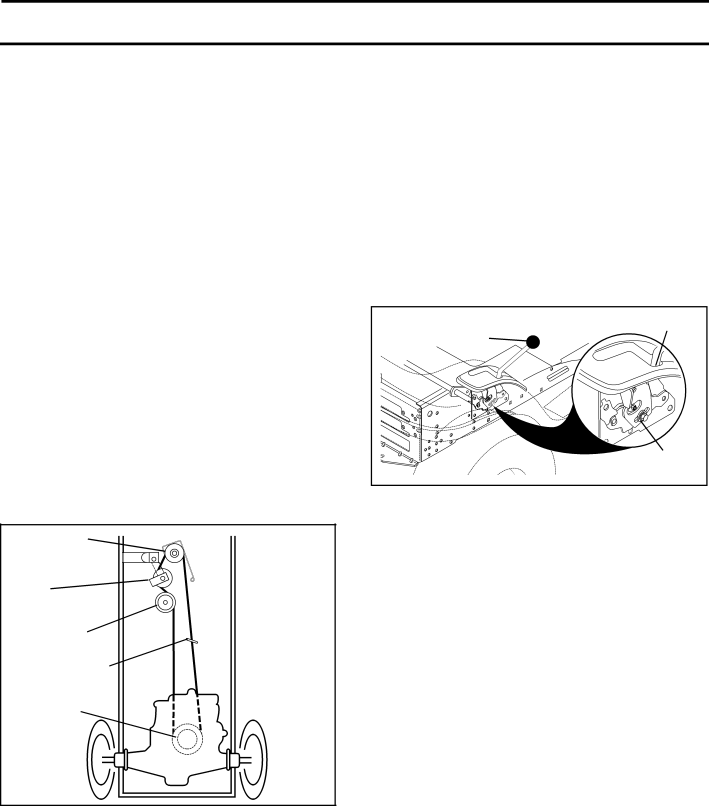

TO REPLACE MOTION DRIVE BELT (See Fig. 20)

Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation guide decal on bottom side of left footrest.

BELT REMOVAL -

•Remove mower (See “TO REMOVE MOWER” in this section of manual).

NOTE: Observe entire motion drive belt and position of all belt guides and keepers.

•Remove belt from stationary idler and clutching idler.

•Remove belt downward from around engine pulley.

•Pull belt slack toward rear of tractor. Remove belt upwards from transaxle pulley by deflecting belt keep- ers.

•Remove belt from center span keeper and pull belt away from tractor.

BELT INSTALLATION -

•Carefully work new belt down between transaxle belt keepers and onto the input pulley.

•Slide belt into the center span keeper.

•Pull belt toward front of tractor and roll around the top groove of engine pulley.

•Install belt through stationary idler and clutching idler.

•Make sure belt is in all pulley grooves and inside all belt guides and keepers.

•Install mower (See “TO INSTALL MOWER” in this sec- tion of manual).

TRANSAXLE GEAR SHIFT LEVER NEUTRAL- ADJUSTMENT (See Fig. 21)

The transaxle should be in neutral when the gear shift lever is in neutral (N) (lock gate) position. The adjustment is preset at the factory; however, if adjustment is needed, proceed as follows:

•Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move freely, the transaxle is in neutral.

•Loosen adjustment bolt in front of the right rear wheel.

•Position the gear shift lever in the neutral (N) posi- tion.

•Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to adjustment bolt, move mower deck height to the lowest position.

NEUTRAL LOCK GATE

GEARSHIFT LEVER

ADJUSTMENT

BOLT

FIG. 21

ENGINE

PULLEY

CLUTCHING

IDLER

STATIONARY

IDLER

CENTER SPAN KEEPER

TRANSAXLE

PULLEY

00811

TO ADJUST STEERING WHEEL ALIGN- MENT

If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steer- ing wheel and reassemble per instructions in the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on your tractor. If damage has occurred to affect the front wheel toe-in or camber, contact your nearest authorized service center/department.

FIG. 20

21
