3. Symbols on the machine

WARNING

For safe operation and maintenance, symbols are carved in relief on the machine.

According to these indications, please be careful not to take a mistake.

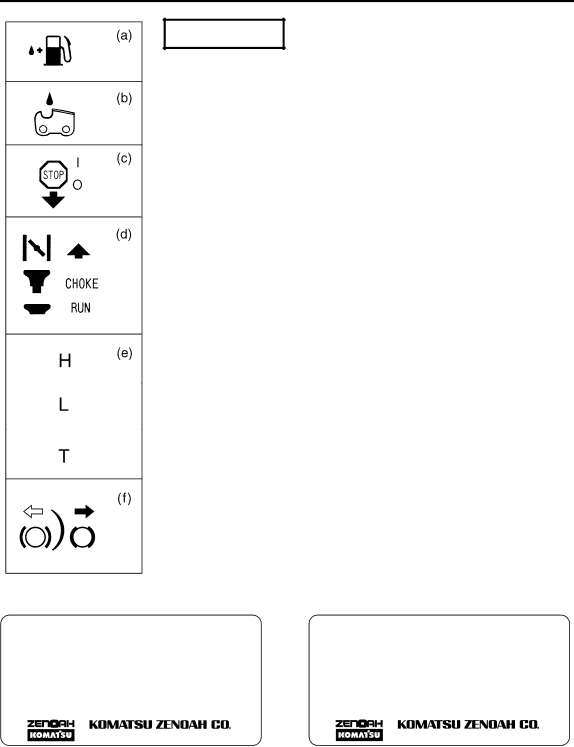

(a). The port to refuel the "MIX GASOLINE" Position: Fuel cap

(b). The port to refuel the chain oil Position: Oil cap

(c). Put the switch to the "O" position, immediately the engine stops. Position: Rear-left of the unit

(d). Starting the engine, if you pull out the choke knob (at the back- right of the rear handle) to the point of the arrow, you can set the starting mode as follows

First-stage position – starting mode when the engine is warm.

Second-stage position – starting mode when the engine is cool. Position: Upper-right of the aircleaner cover

(e). The screw under the "H" stamp is The High-speed adjustment screw.

The screw under the "L" stamp is The Slow-speed adjustment screw.

The screw at the left of the "T" stamp is the Idle adjustment screw.

Position: Left side of the rear handle

(f). It shows the directions that the chain brake is released (for the white arrow) and activated (for the black arrow).

Position: Front of the chain cover

IMPORTANT ENGINE INFORMATION

THIS ENGINE CONFORMS TO US EPA P H 1 F O R S M A L L O F F - ROA D E N G I N E S .

ENGINE FAMILY : 5KZXS. 0625MN:EM

ENGINE DISPLACEMENT : 62cc

REFER TO OWNER'S MANUMAL FOR MAINTE- NANCE SPECIFICATIONS AND ADJUSTMENTS.

MANUFACTURED :

RedMax Made in Japan

INFORMATION IMPORTANTE CONCERNANT LE MOTEUR

Ce moteur conformc aux normcs U.S. EPA PH1 pour les petits moteurs tout-terrain.

Type de moteur : 5KZXS. 0625MN:EM

Cylindrée du moteur : 62cc

Se référer au Manuel de l'utilisateur pour les spécifications d'entretien et les réglages.

Manufacturé :

RedMax Made in Japan
