Regular Maintenance
LUBRICATION
Service Interval: Every 25 Hours

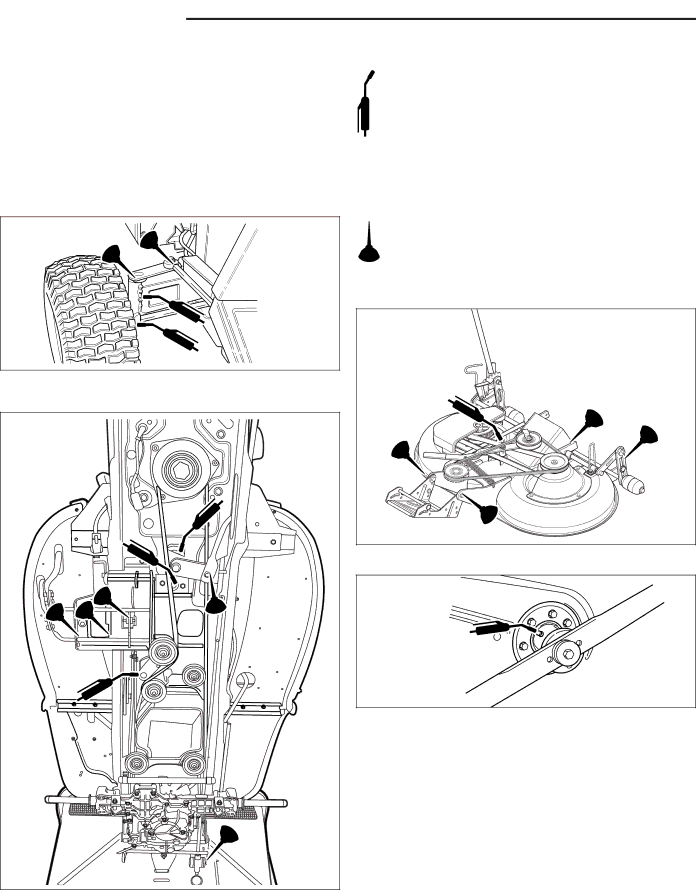

Lubricate the unit at the locations shown in Figures 17- 20 as well as the lubrication points listed. Generally, all moving metal parts should be oiled where contact is made with other parts. Keep oil and grease off belts and pulleys. Wipe surfaces clean before and after lubrica- tion.
Figure 17. Lubricate Steering Linkage
Grease:
•steering linkage
•foot pedal
•mower linkage
•transmission idler assembly pivot
•rear axle shafts (remove wheel hubs)
Use grease fittings when present. Automotive lithium grease is recommended.
Oil:
•control linkage
•seat adjustment assembly
•brake linkage
•mower deck height adjustment linkage
•manual lift lever
Figure 19. Mower Lubrication Points - 40”
Figure 20. Arbor Lubrication Points
Figure 18. Lubricating the Tractor
