Features & Controls

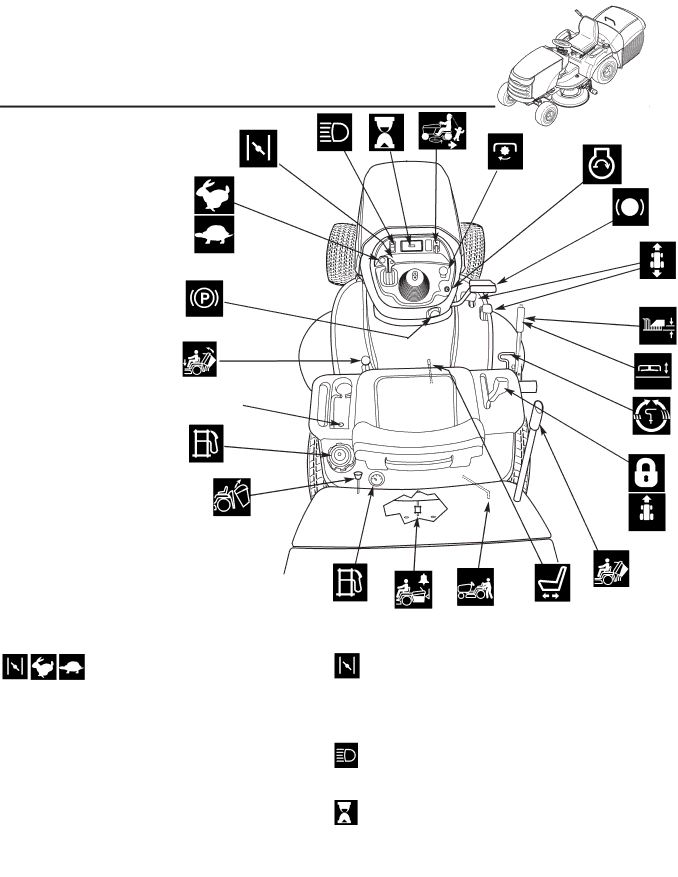

Figure 1. Tractor and Mower Controls NOTE: Steering wheel removed for clarity
Please take a moment and |
|
familiarize yourself with | 12V |
the name, location, and | |
function of these controls |
|
so that you will better |
|
understand the safety and |
|
operating instructions pro- |
|
vided in this manual. |
|
CONTROL FUNCTIONS
The information below briefly describes the func- tion of individual controls. Starting, stopping, dri- ving, and mowing require the combined use of sev- eral controls applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION sec- tion.
Throttle/Choke Control | Choke |
(Single Lever Models)
The throttle/choke lever controls engine speed and choke. Move the throttle forward to increase engine speed and back to decrease engine speed. Always operate at FULL throttle. Move the control fully forward (past the detent) to close the choke. Close the choke for cold starting. Open the choke once the engine starts. A warm engine may not require choking.
Close the choke for cold starting. Open the choke once the engine starts. A warm engine may not require chok- ing. Move the lever forward to close the choke.
Headlights
The light switch turns the tractor headlights on and off.
Throttle Control
The throttle controls engine speed. Move the throttle for- ward to increase engine speed and back to decrease engine speed. Always operate at FULL throttle.
Hour Meter (Optional)
The hour meter registers hours of use.
Brake Pedal
Depressing the brake pedal applies the tractor brake.
