Lenovo C400 manual Adjusting the projector level and height, Adjusting the image

Page 25

Table 2-1. (continued)

Projection distance

Image height

Image Width

Diagonal image size







1

2

3

4

(m/ft)

(zoom max/min)

(zoom max/min)

(zoom max/min)









6.0 m/19.68 ft

2.6 m/2.2 m

3.5 m/2.9 m

4.3 m/3.6 m



101.9 in./85.0 in.

135.8 in./113.4 in.

170.1 in./141.7 in.









10.0 m/32.8 ft

4.3 m/3.6 m

5.8 m/4.8 m

7.2 m/6.0 m



170.1 in/141.7 in.

226.8 in./188.9 in.

283.5 in./236.2 in.









Adjusting the projector level and height

To adjust the projector level and height, complete the following procedure:

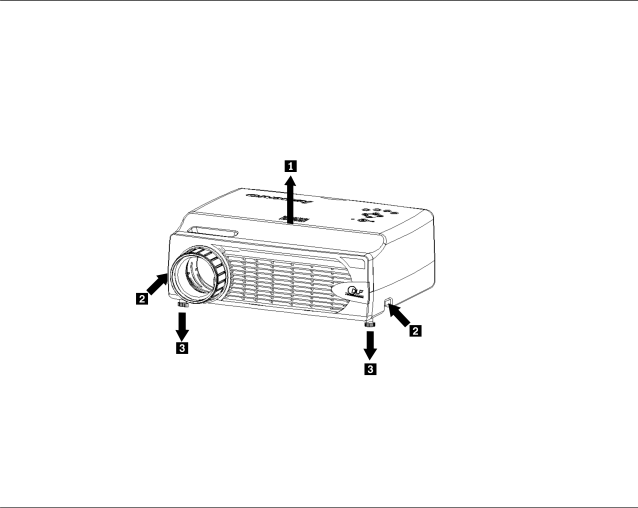

1.To raise the height of the projector, lift the projector 1and press the height-adjuster buttons 2. The elevator foot 3drops down.

2.To make minor adjustments to the height, rotate the elevator foot.

3.To lower the level of the projector, press the height-adjuster button and press down on the top of the projector.

Note:

vThe projector table or stand should be level and sturdy.

vPosition the projector so that it is perpendicular to the screen.

vBe sure the cables are not in a place where they can knock over the projector.

Adjusting the image

To adjust the zoom, focus, and keystone for the image, do the following:

Chapter 2. Setting up the projector 2-5
